Anti Rust Steel Crane Wheel Set Good Toughness Durable Long Service Life

Minimum Order Quantity : 1 sets Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE

Detail Information

Condition: New OEM: Accept OEM
Hardness: 300-380HB Inspection: Ultrasonic Testing
Wheel Material: Steel Drawing Format: PDF
High Light:

crane rail wheels

,

bridge crane wheels

Product Description

Crane Wheel Safety Durable Life Long Crane Wheel High Quality Crane Wheel





Product description



Crane wheels are replaced because of flange wear, flange breakage, and mechanical overloads characterized by pitting and spalling.



Each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness pattern and heat treating technology is selected.



That's why every hardened steel crane wheel is specially designed and heat treated to maximize its resistance to the damaging forces at work in heavy industrial applications.



Product process



Foundry technology


Casting is a casting liquid molding.



The advantages of casting are that it is used to manufacture parts with complex shapes that are difficult to forge and require high strength and plasticity, and the cost is low.



Forging Technology


Forging is a plastic deformation process, forging forming workpiece can improve the internal structure of the organization, good mechanical properties, grain uniformity, used for the important workpiece.




Product superiority



1. The material inspection and flaw detection after the completion of blank production are related to the stability of material performance, which is particularly important.



2. Machining, cutting, drilling, chamfering, deburring and polishing, strictly controlling the size and every detail.



3. Heat treatment can improve the comprehensive properties of toughness, hardness, wear resistance, fatigue strength and so on.



4. The bearing adopts the domestic and foreign first-line brand, ensuring the quality of the most core drive.



5. Wheel detection: size, material, hardness, flaw detection, etc.



6. Appearance and packaging: finish cleaning, painting, anti-rust oil, plastic film covering, wooden case packing.

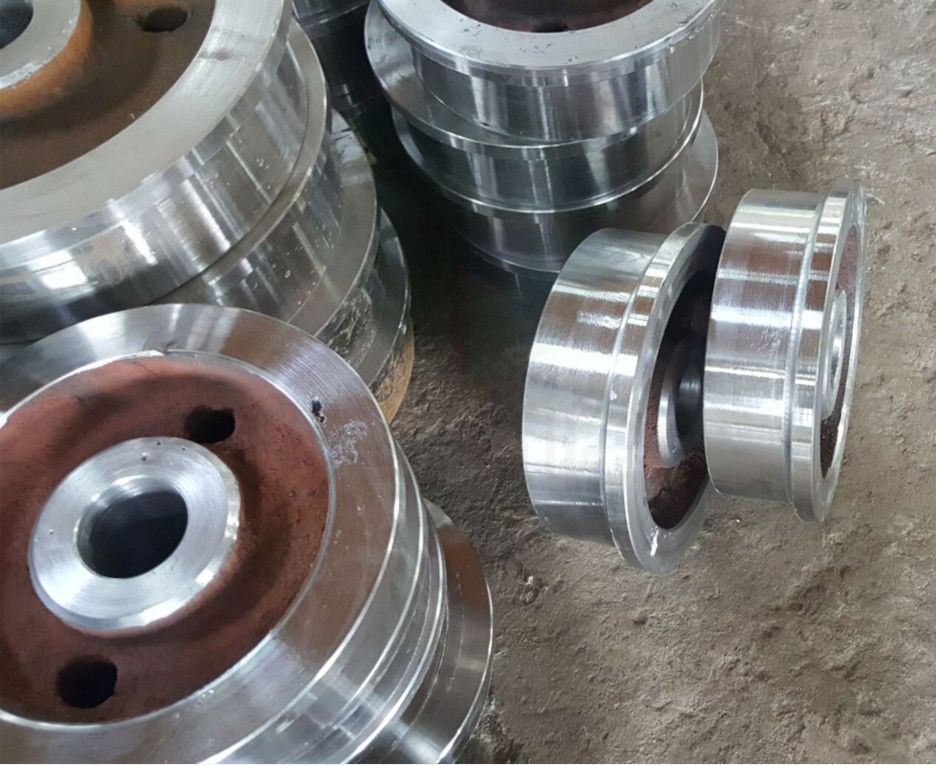

Anti Rust Steel Crane Wheel Set Good Toughness Durable Long Service Life 0





Technical parameters

Anti Rust Steel Crane Wheel Set Good Toughness Durable Long Service Life 1R4





No. Item Drg.No DIMENSIONS(mm)                             Weight
      D(h9) D1 A A1 h h1 b b1 d I d4 L L1 G b2
1 Drive wheelsΦ500 1764 500 540 280 213.5 310 140 230 50 75 105 M24 400 230 79.5 20 284
2 Drive wheelsΦ500 1765 500 540 280 213.5 310 140 230 50     M24   230     277
3 Drive wheelsΦ600 1766 600 640 280 213 310 140 230 50 85 130 M24 415 230 90 22 332
4 Drive wheelsΦ600 1767 600 640 280 213 310 140 230 50     M24 415 230     322
5 Drive wheelsΦ700 1768 700 750 315 240 350 160 235 80 90 130 M30 455 260 96 25 508
6 Drive wheelsΦ700 1769 700 750 315 240 350 160 235 80     M30   260     495
7 Drive wheelsΦ800 1770 800 850 365 280 410 190 275 90 95 130 M30 500 300 100 25 756
8 Drive wheelsΦ800 1771 800 850 365 280 410 190 275 90     M30   300     743



Technology



Anti Rust Steel Crane Wheel Set Good Toughness Durable Long Service Life 2
