Double Speed Single Girder Gantry Crane , 3T - 16T Outdoor Gantry Crane

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 4 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Condition: New Speed: Double Speed
Cantilever Length: 0-15m Test Load: 110%/125%
Safety Protection Device: Included Applicable Industries: Quarries, Steel Mills, Manufacturing Plant
High Light:

single beam gantry crane

,

warehouse gantry crane

Product Description

Double Speed Single Girder Gantry Crane , 3T - 16T Outdoor Gantry Crane





Product presentation



MH single girder gantry crane is a small and medium-sized crane with rail operation, mainly composed of gantry (main beam, supporting leg, lower beam, etc.), lifting mechanism, operating mechanism, and electronic control part, with electric hoist as the lifting mechanism, operating along the lower flange of main beam i-steel.



The gantry structure is divided into box shape and truss, the whole machine has the characteristics of lightweight, simple structure, easy installation, and maintenance. Suitable for general loading, unloading and hoisting work in factories, mines, cargo yards, warehouses and other outdoor places within the range of medium and small lifting weights. It is prohibited to work in the environment with inflammable, explosive and corrosive gas.





Construction features



1. Metal part



This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.



The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.



The electric hoist walks directly under the i-steel lower flange plate of the main beam.



For convenient storage and transportation, the main beam, supporting leg and the lower beam is connected with M20 bolts to become one.



2. Electric hoist



The electric hoist can lift heavy objects and move longitudinally along the main beam.



Its structural features are detailed in the relevant electric hoist specifications.



3. Operating mechanism



This product is in the form of separate drive, drive braking by cone rotor motor to complete;



Transmission is the use of "one open and one close" gear transmission.



4. Electrical equipment



This product USES the motor cone rotor motor form, with electrical control, electric hoist and a whole set of cranes are equipped with safety devices, such as lifting limit switch, terminal limit switch.



5. The specification of this product is expressed as follows:



(1).Ground controlling



Example: lifting weight 5t, span 7m, working-level A3.



Representation: MH5-7A3-D JB/t5663-2008



D is for ground control.



6.rail system:



Crane rails, clamp plate & press plate



High quality reputed make




Product details

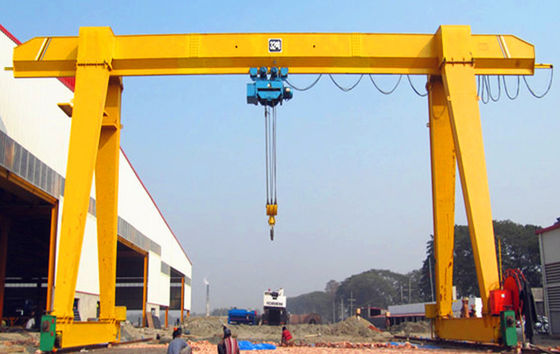

Double Speed Single Girder Gantry Crane ,  3T - 16T Outdoor Gantry Crane 0

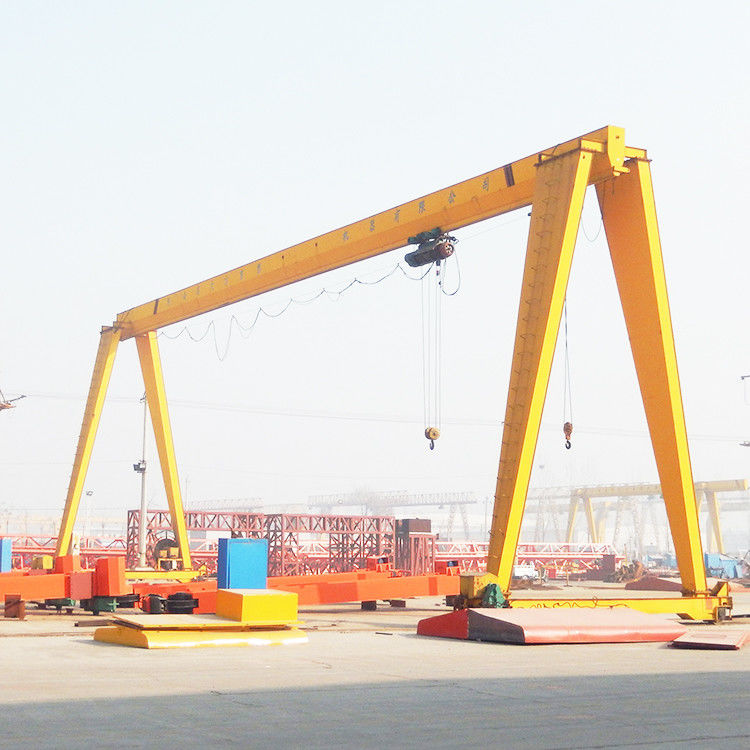

Double Speed Single Girder Gantry Crane ,  3T - 16T Outdoor Gantry Crane 1

Technical parameters

Double Speed Single Girder Gantry Crane ,  3T - 16T Outdoor Gantry Crane 2

Lifting capacity T 3 5 10 16
Span m 12,16,20,24,30
Operational method   Pendent line with press button/cabin/remote
speed Lifting m/min 8,8/0.8 8,8/0.8 7,7/0.7 3.5
Cross traveling 20 20 20 20
Long traveling Ground 20 20 20 20
Cabin 20,30,45 20,30,40 30,40 30,40
Motor Lifting Type/kw ZD41-4/4.5 ZDS1-4/0.4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11. .5/4.5 ZD151-4/13
Cross traveling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1
Lifting height m 6,9,12,18,24,30
