10 Ton Single Beam Gantry Crane High Efficiency Safety For Industrial Factory

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 8 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Feature: Gantry Crane Rated Loading Capacity: 5-32t
Control Method: Ground Control Or Cabin Control Crane Feature: High Efficiency,safety
Presence Of Cantilever: According To Your Demand Main Electrical Parts: Famous Brand
High Light:

single beam gantry crane


container gantry crane

Product Description

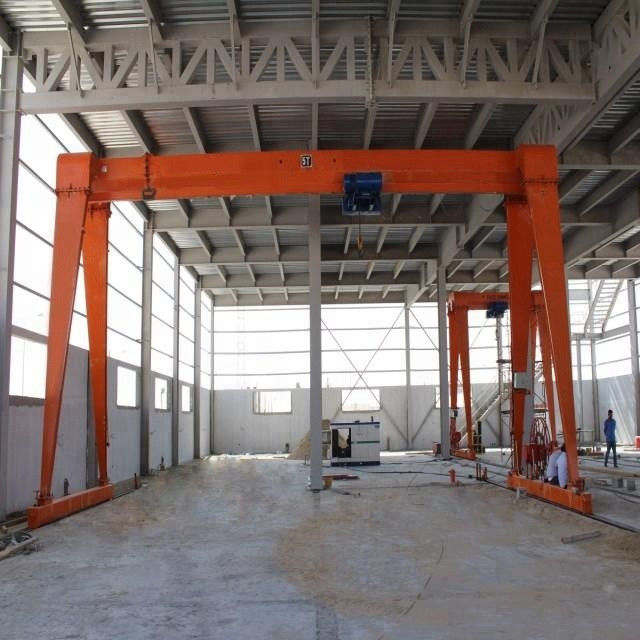

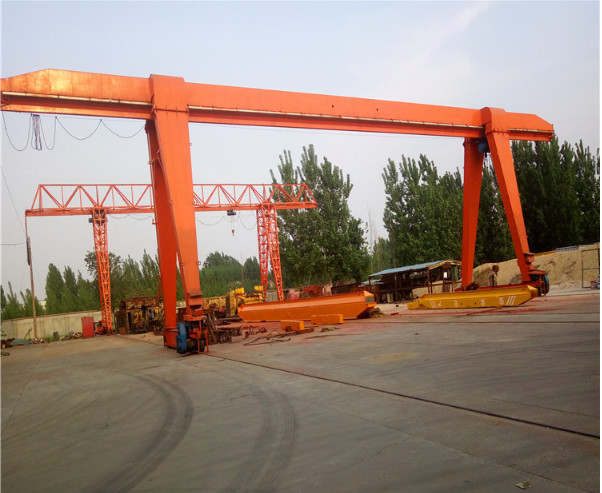

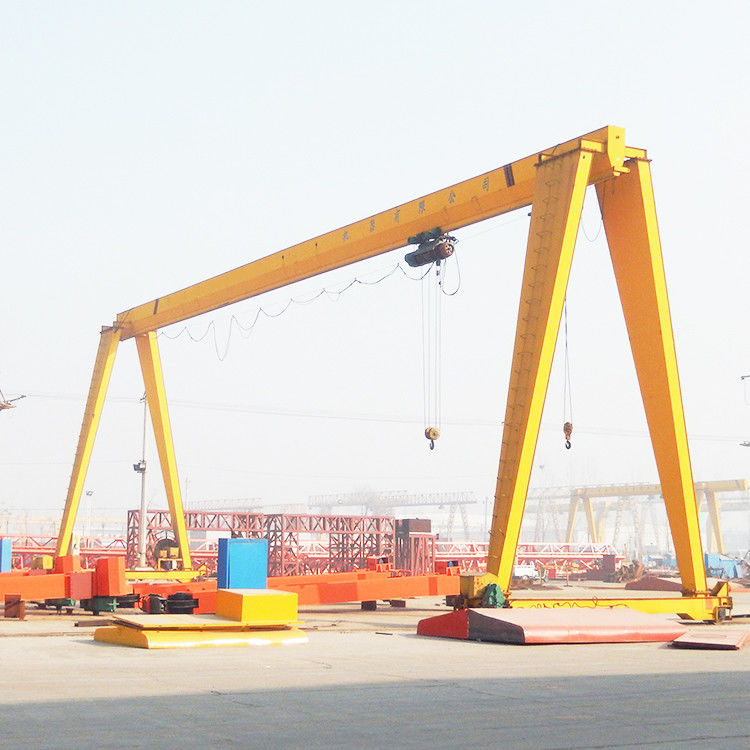

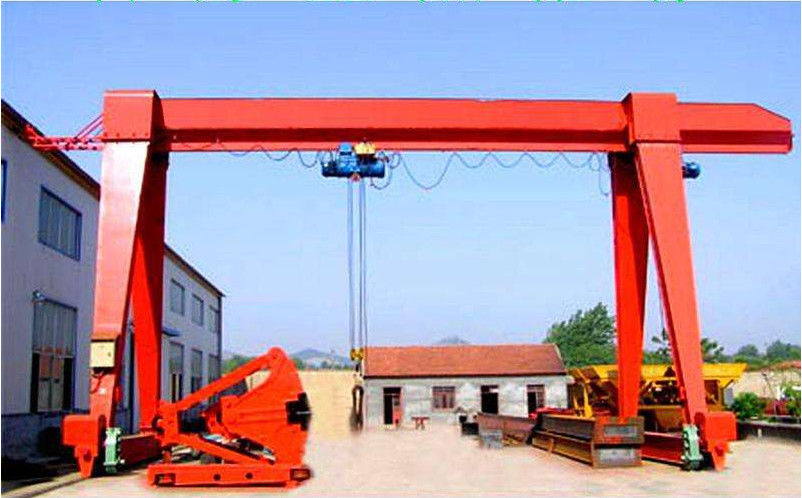

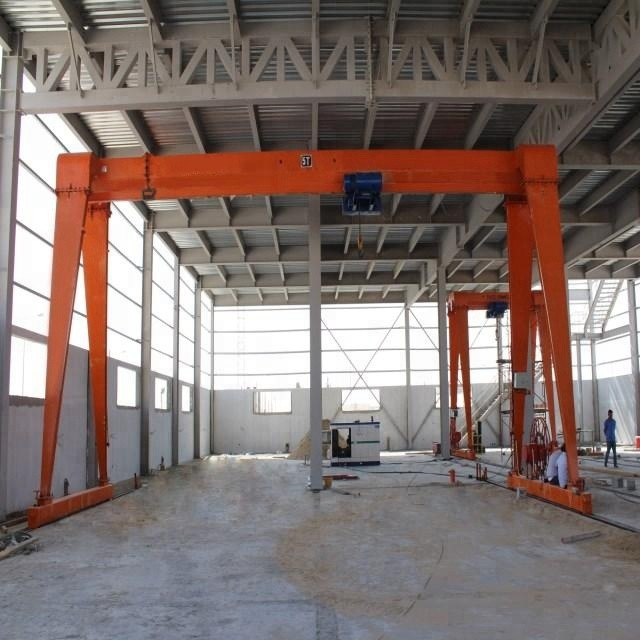

10 ton China Famous Brand Single Beam Gantry Crane For Industrial Factory



Product presentation


Single girder gantry crane is a kind of track traveling mid-light type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.


MH type single girder gantry crane has box type and truss type, the former has good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, the MH gantry crane also has cantilever and non-cantilever gantry crane.


If you have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.


MHLP type single girder gantry crane is L-type partial hanging gantry crane, with small size and light-duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.


Construction features


1. Metal part


This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.


The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.


The electric hoist walks directly under the i-steel lower flange plate of the main beam.


For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.


2. Electric hoist


Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch


Protection class F class


Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath


Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China


Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.


Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope


High-quality wire rope, Strength of extension: 1670 N/m2


3. Operating mechanism


This product is in the form of separate drive, drive braking by cone rotor motor to complete;


Transmission is the use of "one open and one close" gear transmission.


4. Electrical equipment


Module control speed, micro-speed and double speed;


Traveling and lifting smoothly;


The power for trolley moving adopts flat cable, sliding smoothly;


Control box layout is reasonable, easy to repair;


Protection class IP55;


Optional main power source ;


All external cable line number with the mark;


Safety smooth touchline, high conductivity, small pressure drop;


Lightweight, installation convenience;


Set electric taxi speed is high, ensure continuous power supply;


Optional speed control module, and can realize the micro speed and double speed.


5. The specification of this product is expressed as follows:


(1).Ground controlling


Example: lifting weight 5t, span 7m, working-level A3.


Representation: MH5-7A3-D JB/t5663-2008


D is for ground control.


6.rail system:


Crane rails, clamp plate & press plate


High quality reputed make


10 Ton Single Beam Gantry Crane High Efficiency Safety For Industrial Factory 010 Ton Single Beam Gantry Crane High Efficiency Safety For Industrial Factory 1


Technical parameters


10 Ton Single Beam Gantry Crane High Efficiency Safety For Industrial Factory 2


lifting capacity t 10
span m 12 16 20 24 30
lifting height m 6/9 9
traveling mechanism traveling speed ground m/min 20
controlling room   30 40
motor ground   YZR132M2-6/4*2 YZR160m1-6/6.3*2
controlling room   YZR160m1-6/6.3*2 YZR160m2-6/8.5*2
reducer     ZSC400 ZSC(A)600
wheel diameter   M 400 500
electric hoist Type No.     CD1 ,MD1
lifting speed   m/min 7/0.7
traveling speed   m/min 20
motor lifting   ZD151-4/13 ZDS1 2.2/13
traveling   ZDY121-4/0.8*2
Working system   A4
