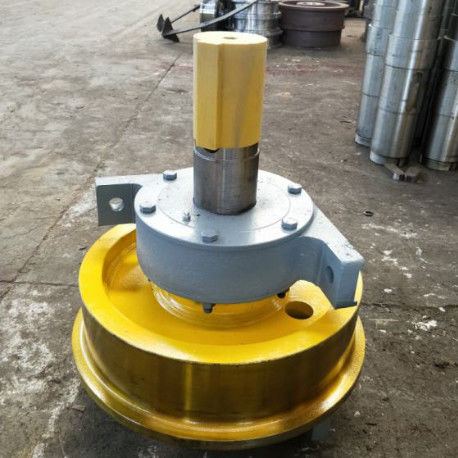

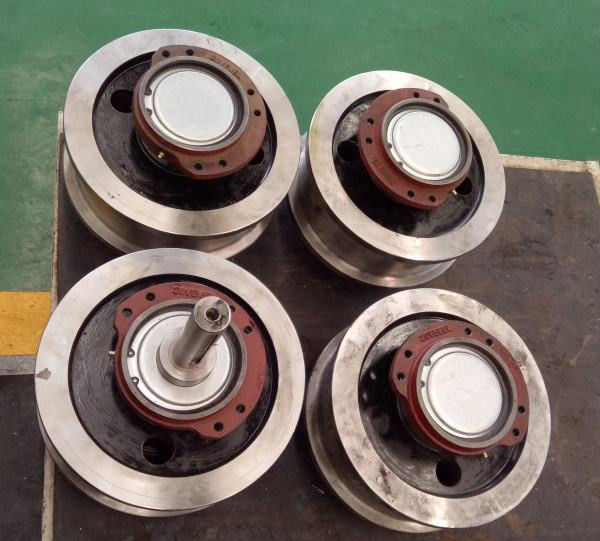

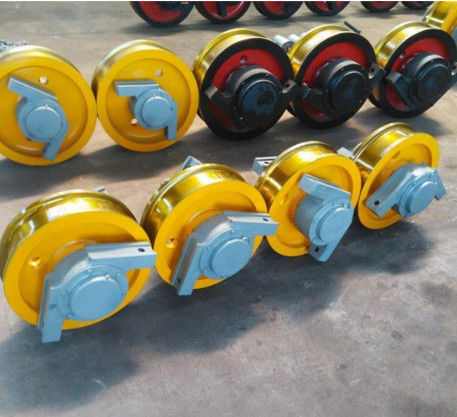

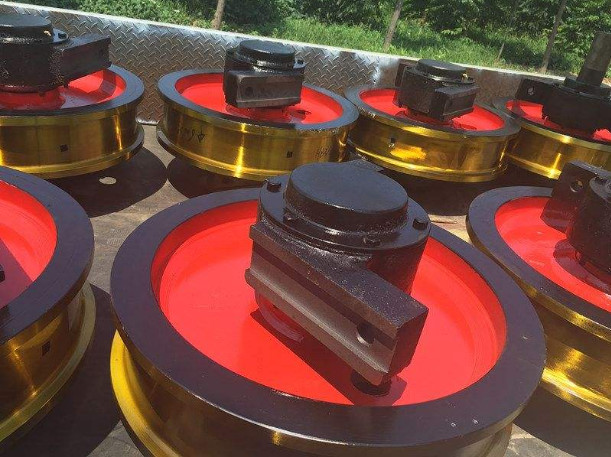

Universal Crane Trolley Wheels Simple Structure Compact Layout Stable Operation

Product Description

Universal Crane Trolley Wheels, Wheel Set, Customizable, High Quality

Product description

The main and passive wheel of the crane is easy to be damaged. According to the operation characteristics of the vehicle, the wheel tread is required to have higher hardness, and a certain depth of hardening layer and transition layer (depth >10mm, hardness hrc40-48), in order to improve the bearing capacity, wear-resistance, and anti-contact fatigue performance.

At the same time, it is required that the matrix should have good comprehensive mechanical properties and good organization state, and the hardness should be up to HBS187~229, so as to make it have high toughness and improve the impact resistance and cracking resistance.

Product Feature

1. Simple structure, compact layout, stable operation.

2. The economy's environmental protection universal strong, the service life is long.

Product process

Foundry technology

Casting is a casting liquid molding.

The advantages of casting are that it is used to manufacture parts with complex shapes that are difficult to forge and require high strength and plasticity, and the cost is low.

Forging Technology

Forging is a plastic deformation process, forging forming workpiece can improve the internal structure of the organization, good mechanical properties, grain uniformity, used for the important workpiece.

Product superiority

1. The material inspection and flaw detection after the completion of blank production are related to the stability of material performance, which is particularly important.

2. Machining, cutting, drilling, chamfering, deburring and polishing, strictly controlling the size and every detail.

3. Heat treatment can improve the comprehensive properties of toughness, hardness, wear resistance, fatigue strength and so on.

4. The bearing adopts the domestic and foreign first-line brand, ensuring the quality of the most core drive.

5. Wheel detection: size, material, hardness, flaw detection, etc.

6. Appearance and packaging: finish cleaning, painting, anti-rust oil, plastic film covering, wooden case packing.
