150T Industrial Electric Winch

Product Details:
Place of Origin: China
Brand Name: SILENCE
Certification: ISO CE
Model Number: JM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000-USD6000/set
Packaging Details: High quality plywood crate
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set/per month

Detail Information

Warranty: One Year Usage: Cable Pulling Machine
Speed: 10m/min Power Source: Electric, 380V 3P Or Customized
Application: Construction, Workshop, Mine, Boat, Port, Capacity: 150T
High Light:

150T Industrial Electric Winch


10m/min Industrial Electric Winch


150T electric hoist lifting winch

Product Description

150 Ton Electric Winch Gear Drive Modern Electric Automatic Operation Line

Product description:

Winch, winding steel wire rope or chain with a reel to lift or pull heavy weight of light and small lifting equipment,also known as winch.The winch can lift vertically, horizontally or tilt to pull heavy objects.The hoist is divided into manual hoist and electric hoist.Now the main electric winch.


Can be used alone, also can be used for hoisting,road and mine hoisting machinery components, such as simple operation, large amount of rope, convenient and widely used.Mainly used in construction, water conservancy projects, forestry, mining, wharf and other material lifting or towing.


Technical parameters:


Basic parameters model Wire rope rated tension Wire rope rated speed Drum rope capacity electromotor boundary dimension Total dimension
KN m/min m model power KW long wide high KG
JM2A 20 16.7 100 Y160M-6 7.5 1010 960 587 480
JM3 30 11.6 150 YZR160M2-6 7.5 1230 1230 880 980
JM3A 30 18 150 Y160M-4 11 1230 1230 880 900
JM5 50 10 250 YZR160L-6 11 1330 1330 880 1380
JM5A 50 15 250 Y160L-4 15 1330 1330 80 1380
JM8 80 11 400 YZR225M-8 22 1775 1175 1175 3500
JM8A 100 11 350 YZR225M-8 22 1775 1175 1175 3600

Details of Electric Winch:


Winch is widely used in lifting engineering, is one of the main traction equipment, it has a large traction, speed,compact structure, easy to operate and safe and reliable characteristics.The hoist is a standard product.Winch can be classified in different ways:


1.according to the power mode can be divided into manual, electric and hydraulic hoist.Electric hoistis commonly used in hoisting engineering.


2.according to the driving form of electric hoist can be divided into electric reversible type (brake shoe brake) and electric friction type (friction clutch) winch.


3. According to the number of reels, the electric hoist can be divided into single-drum hoist and double-drum winch.


Main Structural Features:


JM construction windlasses are composed of base, motor, elastic coupling, hydraulic brake, enclosed triple-reduction gear box, reel and brackets with electrical control cabinet.


When the motor starts, the elastic coupling drives the reduction gear box, then of which the output shaft drives the revolution of reel. All the motors are the YZR-series products adopting the national standard (GB).


The work or brake of the reel relies on the hydraulic brake. The brake and motor works synchronously, therefore when the power is cut off, the reel is braked simultaneously, of which the process is fast, sensitive, safe and reliable.


Product Application:

Electric winch is a kind of widely using machine in lifting machinery. It can lift heavy weight in the Construction Site and Port pier, also it can be the Tractive power in installing of the factories and mines.

It not only can be used independently, but also can work with other largescale and complex machine. It has been a necessary machine in the Construction Site and Port pier.


Feature of electric winch:

1) Reasonable structure and design winch

2) Easy to install and Maintenance

3) High efficiency and stable performance

4) Top quality with competitive and economic price

5). Double Speed: Low Speed and Normal Speed

Safty Device of electric winch:

1. Double Limit Switch,

2. Current overload protection function,

3. High quality polyurethane materials buffer.

4. Emergency stop system.


Product display

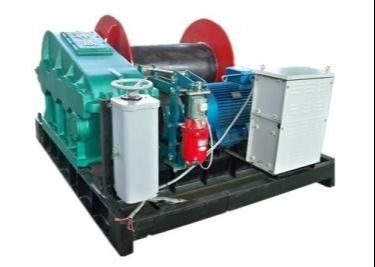

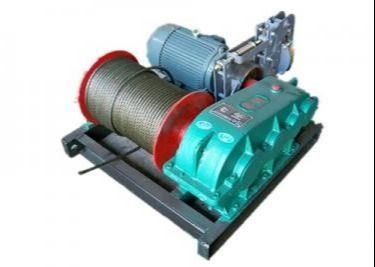

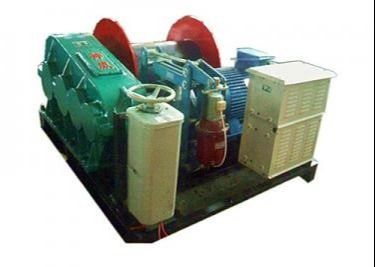

150T Industrial Electric Winch 0150T Industrial Electric Winch 1


Packing And Delivery:

High tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch are packed by high quality plywood crate, to reduce distortion in conveying.

If the size is too big, usually by bulk ship or by container after truncation.

Transport ways are based on reducing cost for you and keep the high tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch performance.

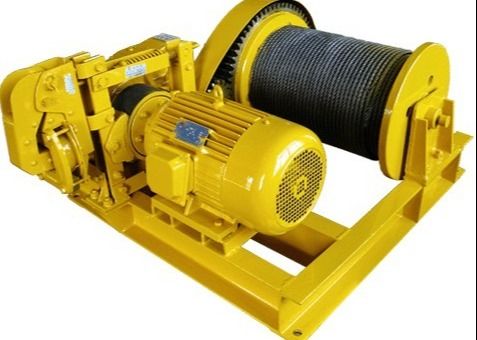

150T Industrial Electric Winch 2
