Contact Person : Jerry
Phone Number : +86 19939938244
WhatsApp : +8619939938244
| Minimum Order Quantity : | 1 set | Price : | USD 3000-USD6000/set |
|---|---|---|---|
| Packaging Details : | High quality plywood crate | Delivery Time : | 15 days after receiving deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 100 set/per month |
| Place of Origin: | China | Brand Name: | SILENCE |
|---|---|---|---|
| Certification: | ISO CE | Model Number: | JMM |
|
Detail Information |
|||
| Motor: | Chinese Famous Brand | Rope Capacity: | 80~2400m |
|---|---|---|---|
| Product Name: | High Tech Wire Pulling Tool Small Electric Winch | Rated Lifting Moment: | 10~650KN |
| Bases: | Fixed Type Or Moveable Type | Warranty: | One Year |
| Highlight: | Rope 50m Double Drum Electric Winch,650KN Double Drum Electric Winch,Rope 50m marine electric winch |
||
Product Description
High Tech Wireless Steel Hoisting Wire Rope 50m Double Drum Electric Winch
Product description:
Electric winch are composed of base, motor, elastic coupling, hydraulic brake, enclosed triple-reduction gear box, reel and brackets with electrical control cabinet.
When the motor starts, the elastic coupling drives the reduction gear box, then of which the output shaft drives the revolution of reel. All the motors are the YZR-series products adopting the national standard (GB).
The work or brake of the reel relies on the hydraulic brake. The brake and motor works synchronously, therefore when the power is cut off, the reel is braked simultaneously, of which the process is fast, sensitive, safe and reliable.
Technical parameters:
| Model | JK0.5 | JM0.5 | JK1 | JM1 | JK1.5 | |
| Rated pull rope kn | 5 | 5 | 10 | 10 | 15 | |
| The total transmission ratio i | 36.6 | 61.9 | 19.78 | 50.05 | 59.58 | |
| Reel | Diameters mm | φ165×355 | φ165×355 | φ165×400 | φ165×400 | φ219×460 |
| R.P.M r/min | 38.8 | 15.67 | 72.8 | 27.14 | 24.16 | |
| Supporting rope (rope capacity) m | 50(200) | 50(200) | 70(200) | 70(200) | 80(200) | |
| Wire rope | Specification | 6×19 | 6×19 | 6×19 | 6×19 | 6×19 |
| Diameters mm | 7.7 | 7.7 | 9.3 | 9.3 | 11 | |
| Lifting Speed m/min | 22 | 9 | 50(Double lines) | 17 | 20 | |
| Motor | Model | Y100L1-4 | Y100L-6 | Y132S-4 | Y132S-4 | Y132M—4 |
| Power kw | 2.2 | 1.5 | 5.5 | 4 | 7.5 | |
| R.P.M r/min | 1420 | 970 | 1440 | 1440 | 1440 | |
| Brake Type | TJ2-100 | TJ2-100 | TJ2-150 | TJ2-200 | ||
| Body type electromagnetic brake | MZD1-100 | MZD1-100 | MZD1-100 | MZD1-100 | MZD1-200 | |
| Size mm | 800×650×370 | 800×650×370 | 850×820×400 | 850×820×400 | 1000×890×510 | |
| Net Weight kg | 160 | 155 | 245 | 240 | 365 | |
Details of Electric Winch:
Drum & drum shaft:
The drum diameter not less than 19 times of the wire rope diameter.
The drum wall can withstand the wrapped tight force of wire rope; the side can withstand the lateral force produced by wire rope.
The distance between drum side plate peripheral to the outermost roll rope not less than twice of the wire rope diameter.
electric wire rope winch machine electric winch.
Reducer:
Reducer is mainly composed of transmission parts, shaft, bearing, box and its accessories.
The function of reducer is to match speed and transfer torque between motor and working machine or actuator.
Hydraulic pusher
The hydraulic pusher is power source of brake. The abnormal use will lead to the brake fail to work.
Electrical equipment:
Electric systems are Siemens brand Schneider brand or CHINT brand---Best in China. Include Overload protection system.
Shock protection system, Low voltage protect function system, Explosion-proof system system. Has a good safety performance.

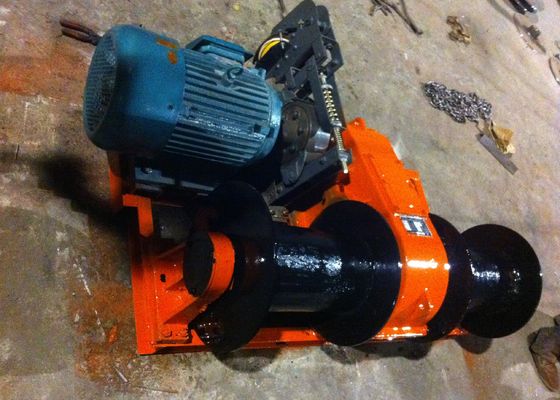

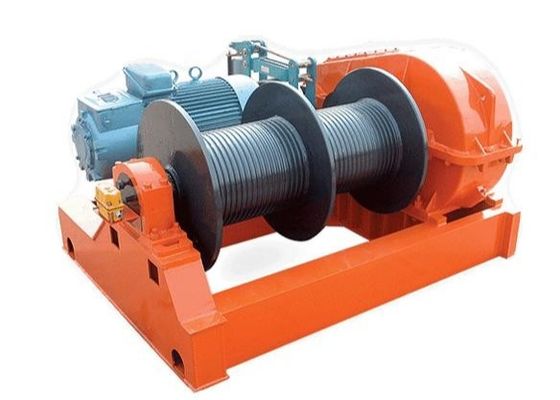

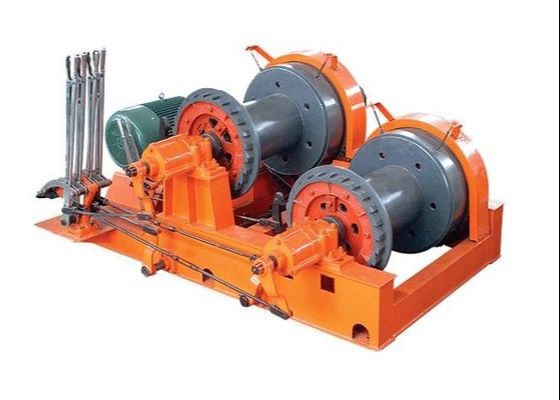

Product display
Packing And Delivery:
High tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch are packed by high quality plywood crate, to reduce distortion in conveying.
If the size is too big, usually by bulk ship or by container after truncation.
Transport ways are based on reducing cost for you and keep the high tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch performance.
