A4 5t Gantry Crane

Product Details:
Place of Origin: China
Brand Name: SILENCE
Certification: ISO CE
Model Number: PT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-5000/set
Packaging Details: Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets

Detail Information

Rated Loading Capacity: On Request Speed: Single Speed
Control Method: Remote Control Crane Feature: Lifting Weights
Application: Widely Core Components: Motor
Capacity: 5 Ton
High Light:

A4 5t gantry crane


1m 5t gantry crane


A4 5 ton gantry crane

Product Description

5 Ton Simple Portable Gantry Crane Efficient Handling To Reduce Labor Costs
Product description of Portable Gantry Crane


In warehouse daily work, we often encounter some equipment and materials, while the weight is not big, but it is difficult to the carry again by manpower, driving is not to use warehouse in what place can be in what place, brings great inconvenience to warehouse work, only by laborious human handling equipment and material, and efficiency is not obvious.In order to solve such problems, the invention of this device, below 5T equipment, materials will be lifted to the warehouse at any place you want to put, not subject to the power supply and road restrictions, so that the handling work becomes more convenient, safe and fast.
This device adopts the movable pulley and the working principle of the static block, is mainly used in the large room or flat hardfaced positioned and site equipment, materials and transport work, its main characteristic is that the fuselage is small, mobile convenience, without power, lifting weight can reach 10 t, using this device can make the operation simple and quick, save time and effort, improve working efficiency.

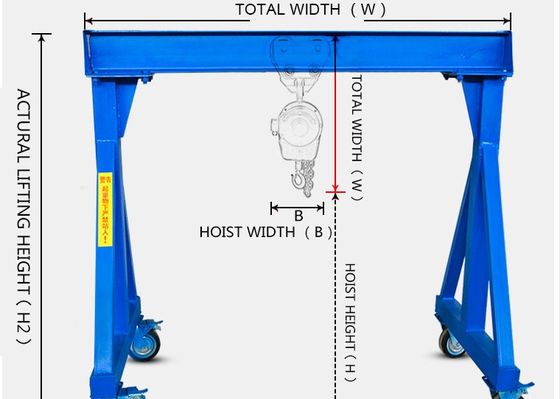

Technical parameters of Portable Gantry Crane


Item Mini mobile gantry crane
Capacity 0.5ton 1ton 2ton 3ton 5ton
Span 2~12m(as your require)
Lifting height 1~6m(as your require)
Lifting equipment Manual/Electric wire rope or chain hoist
Working voltage 3P 380V 50Hz
Working class A4
Attention: Above parameters suitable for our company’s standard products, meanwhile,please make contact with our sales manager if you were interested in customized products.

Operating rules of Portable Gantry Crane


1. Load test lifting shall be carried out after the gantry frame operation (assembly) is completed;The test crane is divided into static load and dynamic load to check the operating capacity, bearing capacity, stability and reliability of each system.

2. When the gantry is running, it should be parallel and stable without distorting it.

3. Overload use is strictly prohibited.

4. The operation shall be under the unified command of specially-assigned personnel, and the other personnel shall have a clear division of labor;Determine a uniform contact signal.

5. In case of power failure or other special circumstances during the operation, the heavy objects should be dropped to the ground instead of being suspended in the air.

6. It is strictly prohibited to stand under the gantry and the heavy objects lifted.

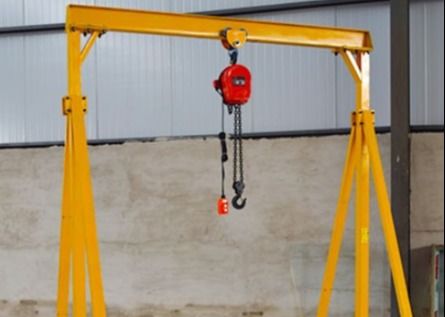

 A4 5t Gantry Crane 0

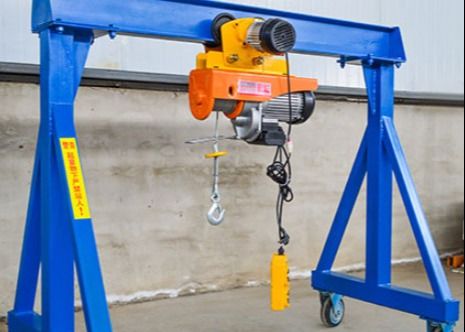

A4 5t Gantry Crane 1



Features of Portable Gantry Crane

Safety: It is equipped with independent working rope and safety rope, and three braking mechanisms, namely worm wheel and worm self-lock, balance safety lock and manual lock, to ensure that the hanging basket is automatically locked under weightlessness and tilt, so as to ensure the safety of personnel.

Flexibility: light weight, easy assembly and disassembly, can be assembled at will 1 ~ 6 meters, different basket.

Stability: lifting freely, when the hand stops, the master automatically locks.

Durability: reasonable structure, excellent material, super convenient, long service life.

Economy: low price, convenient maintenance, low labor intensity, low failure rate.

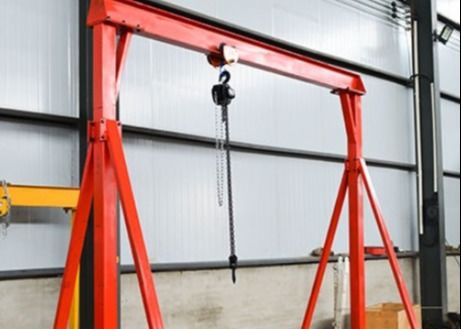

A4 5t Gantry Crane 2


Packing and shipping of Portable Gantry Crane


A4 5t Gantry Crane 3

A4 5t Gantry Crane 4
