Eot Double Girder Overhead Crane

Product Details:
Place of Origin: China
Brand Name: Silence
Certification: ISO CE
Model Number: QD LH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80000-150000/set
Packaging Details: Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Detail Information

Working Duty: A5-A7 Span: 25m
Capacity: 50 Ton Application: Stockyard
Product Name: Electric Double Girder Bridge Crane Overhead Crane 50 Ton For Sale Power Source: 3 Phase 380V 50hz
High Light:

Eot Double Girder Overhead Crane


Span 25m Double Girder Overhead Crane


Span 25m overhead eot crane

Product Description

Lifting Capacity 50T Eot Crane Double Girder Span 25m Used For Warehouse


The product description of Double Girder overhead crane


This type of overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley.


The hoist travels on top of rails that are mounted to the top of bridge girders.


It is widely used for transferring material, goods, equipment installation and maintenance in factory, power station, storeroom, warehouse etc.


Technical parameters of Double Girder overhead crane


Type Double girder overhead crane
Lifting capacity 5 ton –120ton
Lifting height 5m – 35m
Span 5m-31.5m
Power supply 380V 50Hz 3Phase or on request
Working class A5-A7
Speed Variable Speed (standard)
Eletric devices Crane traveling limit switch
Weight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function, etc.

The double girder overhead crane is available in various configurations and feature the versatility required for additional requirements.


For example, higher crane travel speeds, maintenance walkways, trolleys with service platforms are all features which can easily be implemented.


Advantages of Double Girder overhead crane


1). First class quality with competitive price

2). Compact design, optimal use of the size of work areas

3). Reasonable structure, favorable performance

4). Control the load easily and position the load exactly

5). Smooth starting and stopping

6). Superior safety and reliability

8). Minimum& Easy maintenance, excellent exchangeability for parts and components

9). Saves electricity specifications

10). "One-Stop Shop" for your crane and hoist needs


Features of Double Girder overhead crane

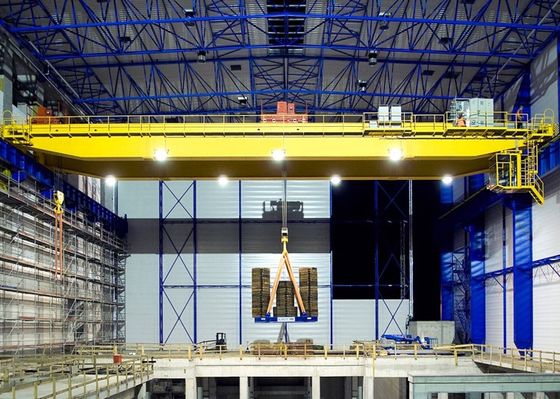

Eot Double Girder Overhead Crane 0

● Reasonable structure and strong rigidit.Three in one design(reducer,motor,brake) save space and Increase effective lifting height.

● Easy for Installation and maintenance.

● Weight overload protection device.

● Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook.

● Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

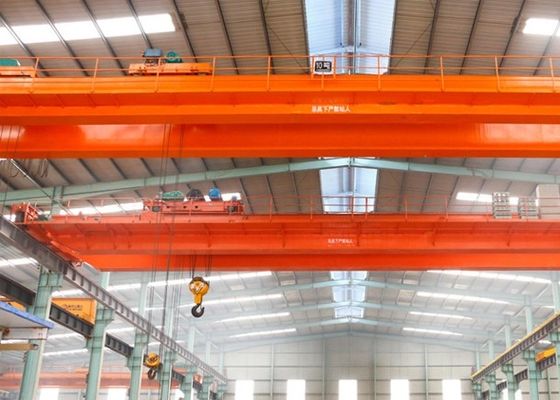

Eot Double Girder Overhead Crane 1

Safety features of Double Girder overhead crane


1. Overload protection: If the material or electric current is over the capacity, the crane will give a sharp warning for protecting itself.

2. Emergency stop system: If the operation staff encounters some emergency situation, we could start the emergency stop system to protect the operator and the related treasure.

3. Rubber buffers: Top quality long time bearing polyurethane materials buffer.


The packing and shipping:

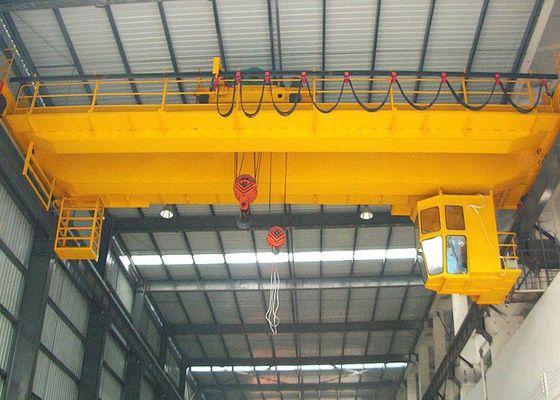

Eot Double Girder Overhead Crane 2

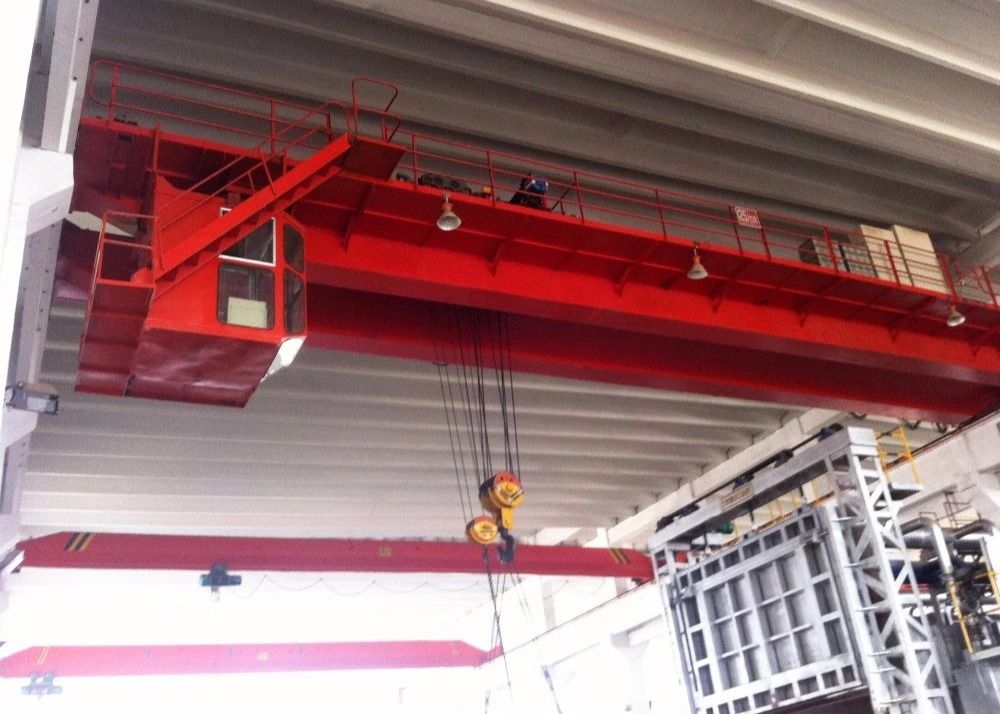

Eot Double Girder Overhead Crane 3
