10t Outdoor Gantry Crane

Product Details:
Place of Origin: China
Brand Name: Silence
Certification: ISO CE
Model Number: MH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 4 sets

Detail Information

Condition: New Applicable Industries: Quarries, Steel Mills, Manufacturing Plant
GB/T 19001-2000 Idt ISO 9001:2000: Passed Polyurethane Material Buffer: Included
Product Name: Mobile Single Girder Gantry Crane Rated Lifting Moment: Different
High Light:

10t Outdoor Gantry Crane


MH Type Outdoor Gantry Crane

Product Description

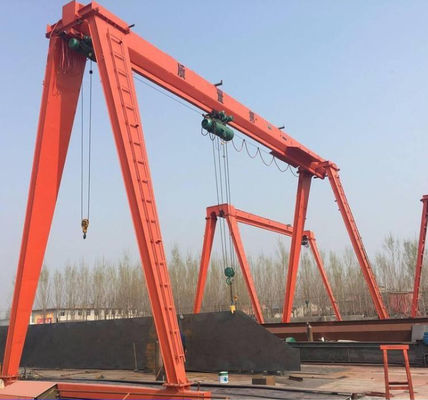

MH Type Mobile Single Girder Gantry Crane 10t For Road Construction Machinery Crane
Product presentation
Single girder gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.
MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance.
For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.
MHLP type single girder gantry crane is Ltype partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.
Working Condition
* Working temperature:-25~40°C
* Power Source:3PH,380V,50HZ or other under customer requirement
* Forbidden to use in easily combustible, explosive, corrosive environment.
Main Features
* Widely used outside
* Light duty type
* Stronger structure
* Safe traveling
* Fluent starting and sto
10t Outdoor Gantry Crane 0
Parts show
Single girder gantry crane consists of 5 main parts, namely, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment.
It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.
The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
10t Outdoor Gantry Crane 1
10t Outdoor Gantry Crane 2
Installation steps
10t Outdoor Gantry Crane 3
10t Outdoor Gantry Crane 4
1)Overloading protection
2)Top quality long time bearing polyurethane materials buffer
3)Crane traveling and cross limit switch
4)Voltage lower protection function, reduce energy consumption
5)Main lifting motor with thermal protection
6)Hooks with latch
7)Rubber buffers
8)Protective earthing
9)Sub-assembly characteristic are tested before assembly
10)Emergency stop system, current over-load protection system
Technical parameters
10t Outdoor Gantry Crane 5

Rated load/ton510162032
Lifting height/m30
Working classA3/1bM
Lifting speed/m/min873.53.53
Trolley running speed/m/min2020202020
Crane running speed/m/min2020202020
Dead weight/t10.5~37.516.8~5218.9~6524.5~7727.5~98
Number of wheel44444/8
Max. wheel pressure/KN52.5~12.195~183131~242167~298238~41.5
Steel track recommendedP24P38P43P43P43
Power supply3AC 220~480V 50/60Hz
We can design and manufacture all kinds of non-standard product according to your requirement
