Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Silence |
| Certification: | ISO CE |
| Model Number: | BZ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets |
|
Detail Information |
|||
| Lifting Trolley: | Electric Hoist | Rotation Angle: | 180 /270 /360/Customized |
|---|---|---|---|
| Feature: | Jib Crane | Condition: | New |
| Port: | Tianjin | Power Source: | 3 Phases 380V 50 Hz Or Customized |
| High Light: | 3T Cantilever Crane,Fixed Column Cantilever Crane |
||
Product Description

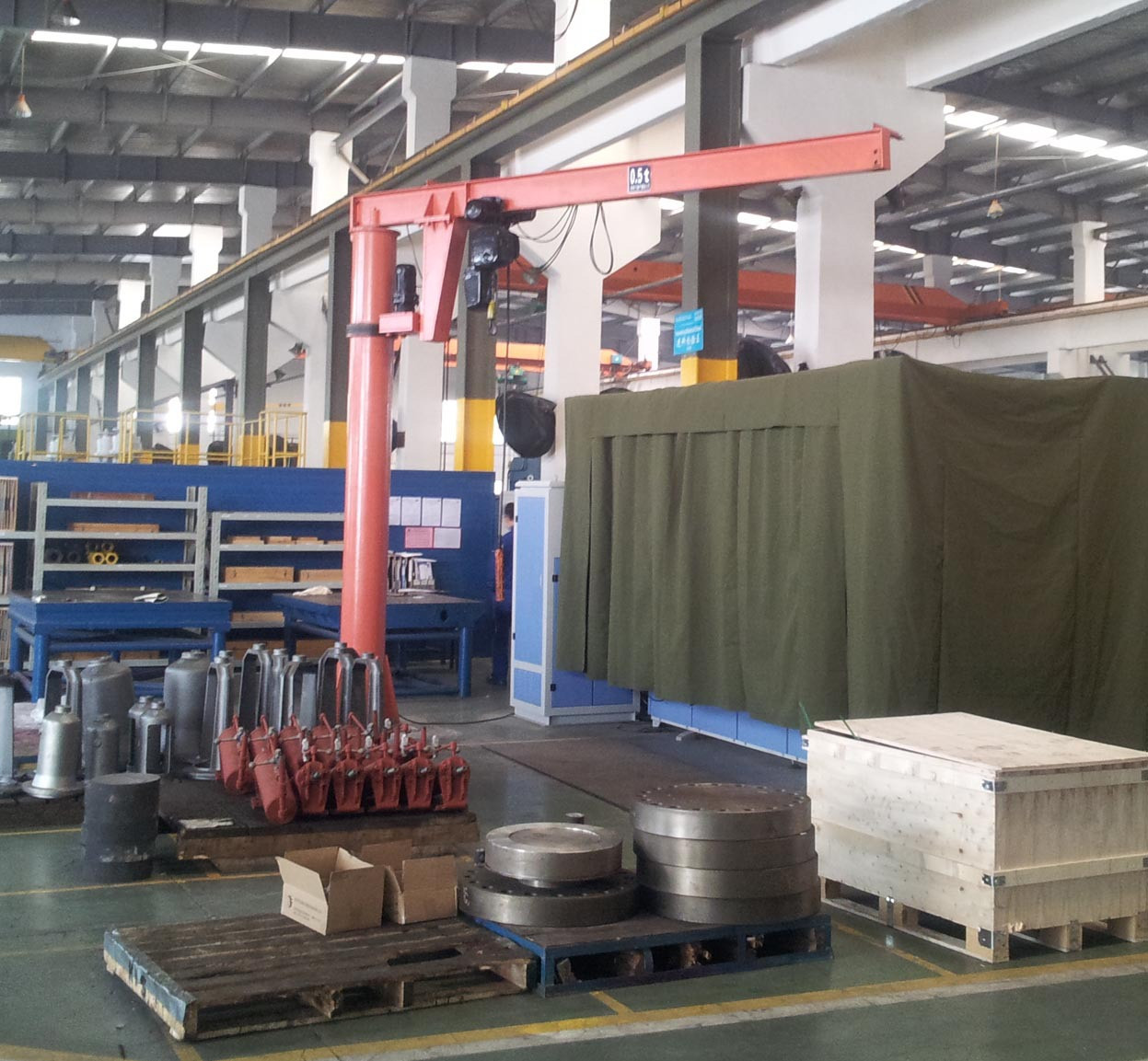

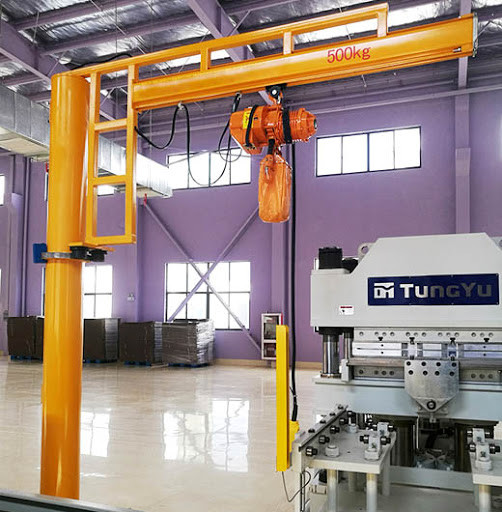

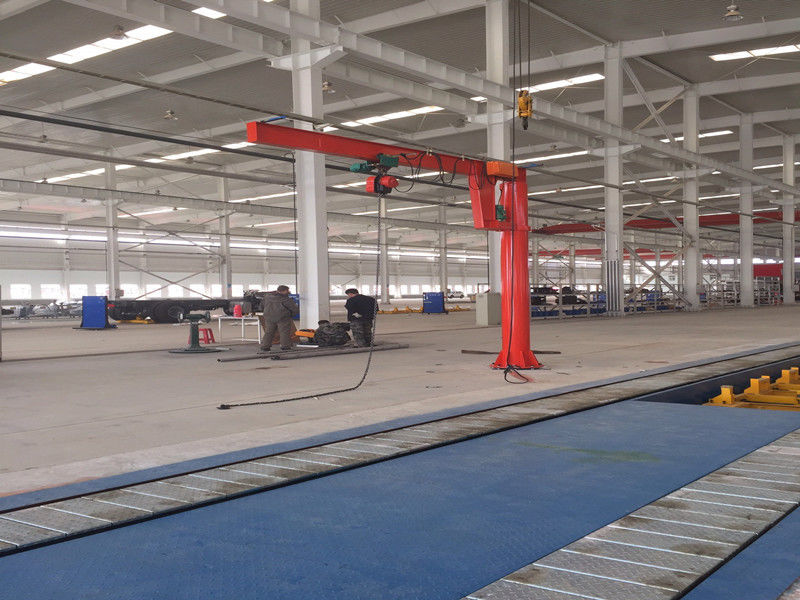

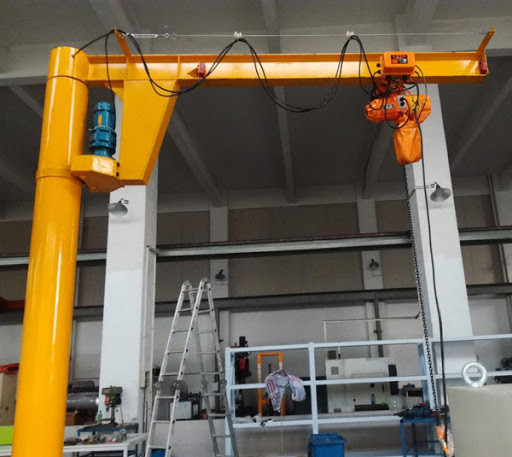

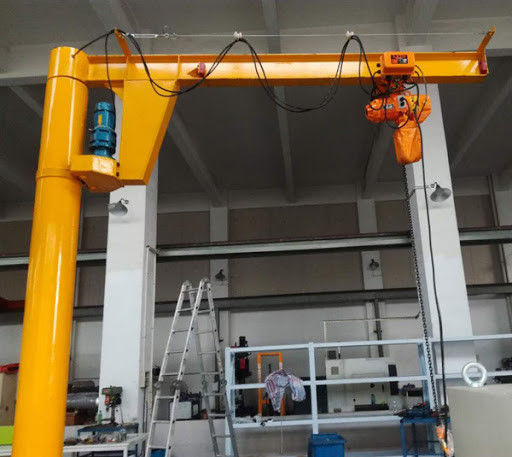

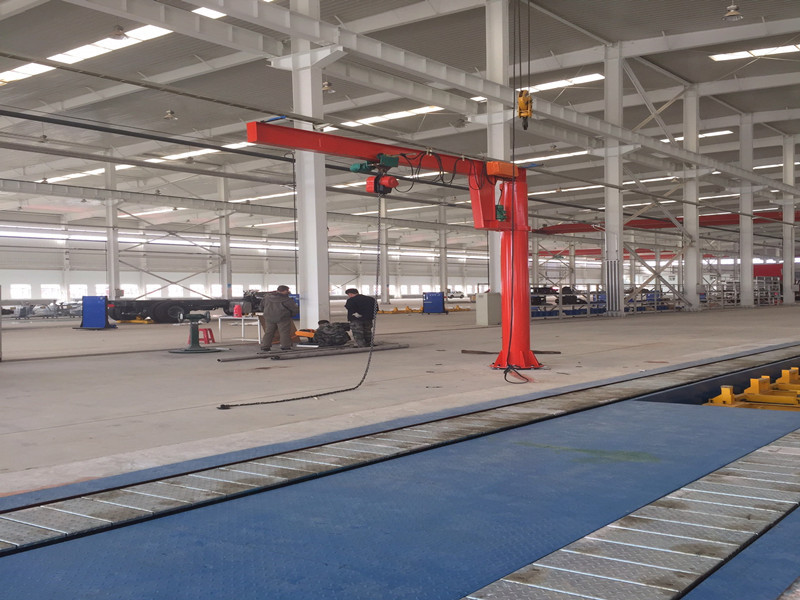

Customized 3 Ton Silence Brand Self-weight Light Fixed Column Cantilever Crane
Product presentation
BZD type jib crane has the characteristics of simple structure, easy operation, small space and large operation range.
It is widely used in the material lifting operations in the production line, assembly line, assembly line, warehouse, dock, laboratory and other occasions of modern industry such as machinery manufacturing, automobile, shipbuilding and so on.
It is an ideal lifting equipment for enterprises to improve efficiency and working conditions.
BZD type jib crane belongs to light and intermediate work system, rated workload for 0.25T, 0.5T, 1T, 2T, 3T, 5T six specifications.
According to the needs of the job to choose different specifications of the crane and lifting speed and operating speed.
The machine has two control modes: electric rotary and manual rotary.
The rotation Angle of the rotating arm can be 180°, 270°, 345°, 360° and other different angles according to the needs of the use place
Advantages:
1.Free Standing column mounted on concrete foundation, erection and assembly and operation easily.
2.Pillar Jib Crane can rotate 360, 270 and 180 degree, matched with electric wire rope hoist or electric chain hoist.
3.Take up small space, easy installation and operation, simple structure, it is a perfect handling equipment used in small workshop.
4.Customized design for clients:Customized design according to the workshop or column size to satisfy clients’ different demand.
Clients also can choose their favorite color for the jib crane
Features:
1) Advanced combination of motor, reducer, brake and drum.
2) Widely used with I-beam.
3) Light duty type
4) Safe traveling
5) Fluent starting and stopping
6) Noise-less
7) Good appearance
8) Easy and convenient maintenance
9) Cost effective
.
Technical parameters
| BZD Type | BZD0.25T | BZD0.5T | BZD1T | BZD2T | BZD3T | BZD5T |
| Lifting Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Maximum radius of rotation Rmax(mm) | 4500 | 4500 | 4500 | 4000 | 4000 | 4000 |
| Minimum radius of rotation R/min(mm) | 800 (manual operation) 1050 (motor-driven) |
900 (manual operation) 1200(motor-driven) |
1140 (manual operation) 1350(motor-driven) |
1380(motor-driven) | 1400(motor-driven) | |
| Lifting height h(mm) | Generally 3000 | |||||
| Total height H(mm) | 4180 | 4200 | 4280 | 4700 | 4950 | 5150 |
| Arm Length L(mm) | 4950 | 4950 | 5000 | 4570 | 4600 | 4650 |
| Lifting speed(m/min) | 7.1 | 6.8/2.3 | 6.9/2.3 | 6.8/2.3 | 8/0.8 | 8/0.8 |
| Horizontal speed (m/min) | General speed 20/low speed1~10 variable frequency | |||||
| Rotation angle | 180°,270°,360° | |||||
| Voltage | 220~460V 50/60HZ 3PH | |||||
Application:
Modern industry Production line, Assembly line of machining, Automobile industry, shipbuilding and Material lifting and warehouse, wharf, Laboratory.
It`s an optimal lifting equipment for enterprise to improve work efficiency and working conditions.
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
Installation:
Before installation, check whether the products and technical documents are missing or lost according to the packing list; correct or restore the bending and torsion deformation of the arm beam, the corrosion of the shaft, and the bruising of the shaft, etc., caused in transit; in addition, clean and lubricate the shaft, bearing and other rotating parts every six months.
The installation of the column shall keep the column perpendicular to the ground. The screws of the floor plate shall be tightened firmly without looseness.
Bottom plate and foundation should fit well.If equipped with electric hoist, the foundation should be embedded cable and grounding facilities, embedded cable from the center of the foundation, grounding resistance shall not be more than 4 ohms.
