Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Silence |
| Certification: | ISO CE |
| Model Number: | BZ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets |
|
Detail Information |
|||
| Lifting Trolley: | Electric Hoist | Crane Working Radius: | By Your Demand |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field | Lifting Speed: | 6.6 M/min |
| Application: | Workshop, Steel Mill, Marble/Class Factory | Rotation Angle: | 180 /270 /360/Customized |
| High Light: | Fixed Column Jib Crane,6.6 M/Min Jib Crane |
||
Product Description
Selling Standing Flexible 10 Ton Fixed Column Type Jib Cranes Crane Price
Product presentation

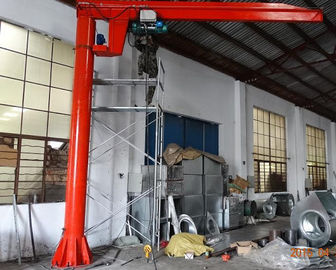

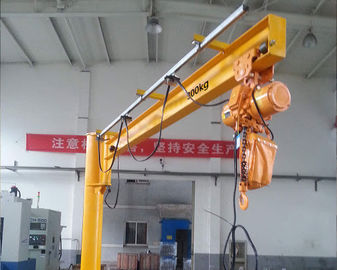

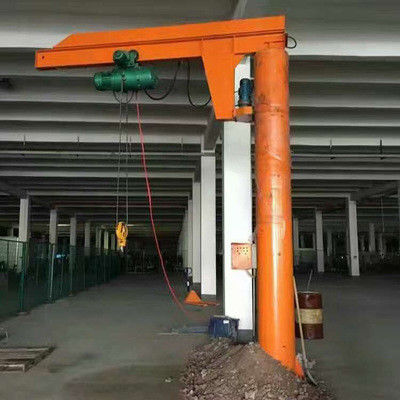

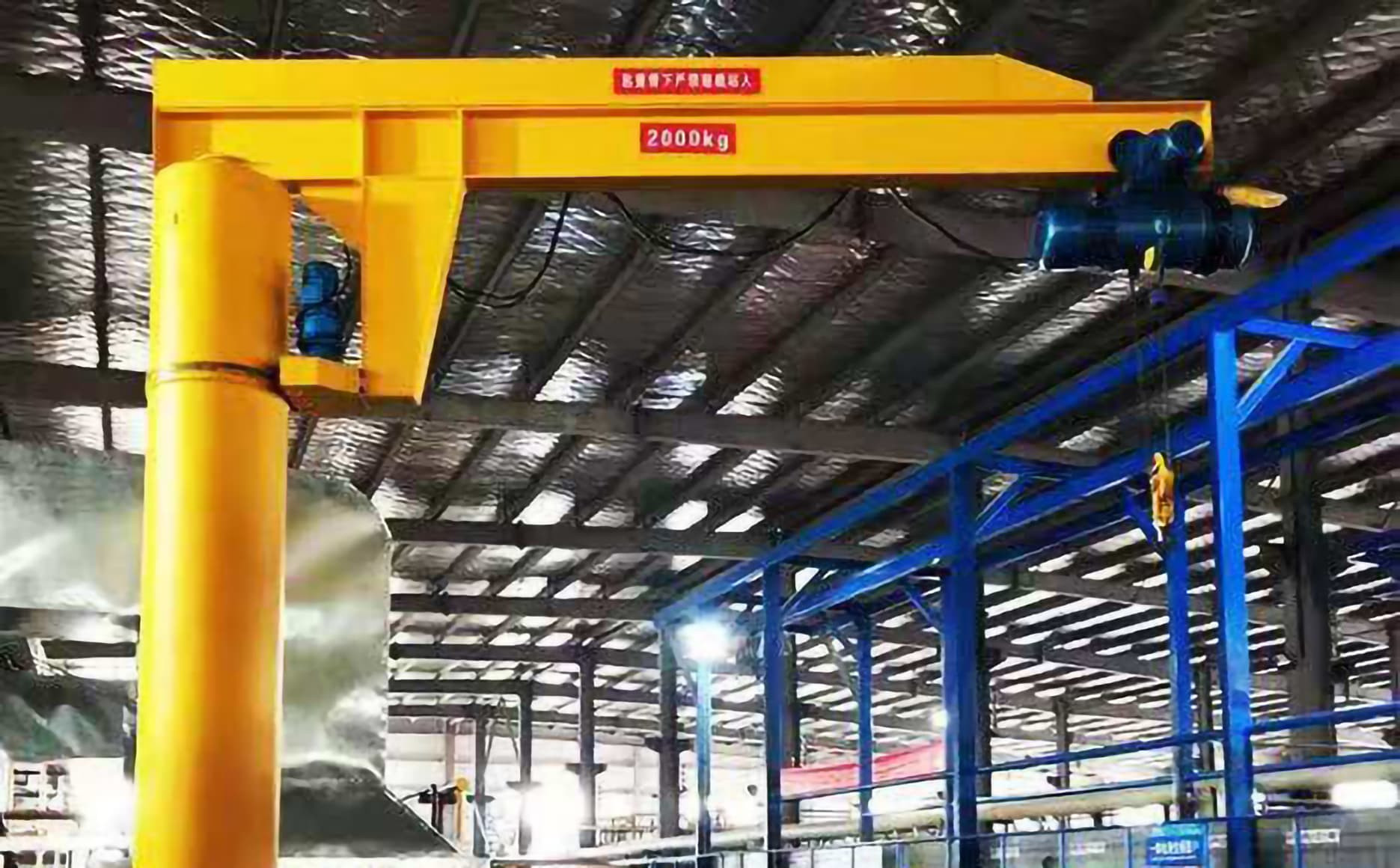

Fixed column rotary jib crane (also known as fixed column cantilever crane, column cantilever crane) can complete the most difficult overhead lifting task, can undertake the frequent overhead material transport work;
The fixed column rotary arm crane is composed of column, rotary arm rotary driving device and electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts.
The cycloidal needle wheel reducer drives the rotary arm to rotate.Crane jib for hollow section steel structure, light dead weight, span, lift weight, economical and durable.
The fixed column rotary crane provides good working coverage in the circular working area and supports tool balancer, pneumatic balancer, vacuum lifting tool and hoist.
Fixed column rotary crane is steel, lifting weight up to 10 tons, arm length up to 6 meters, can achieve 360° rotary lifting operation;
The ground installation method will not exert pressure on the roof structure of the building. The prefabricated standard modular design structure can be easily expanded with the expansion of the work unit center.
Advantages:
1. Special design, support frame design.
The design can preinstall the support frame component on the cantilever component, effectively reduce the requirement of installation space, greatly improve the hoist height;
Relative to KBK orbit spiral arm structure, support frame structure can increase the stability of equipment operation, reduce cantilever deflection and load vibration, create a safer operating environment, reduce the workpiece damage rate.
2. Easy to operate.
Convenient for operators to accurately locate the load, easy and efficient;
The top shaft is equipped with precision tapered roller bearings and roller components for longer service life, providing guarantee for smooth operation;
The base plate triangular support Angle plate minimizes crane deflection and makes it easier to operate when accurately positioning the load.
Cantilever crane composition:
The cantilever crane is mainly composed of mechanical, electrical and metal structures.
1.1 Mechanical part
It is composed of main lifting mechanism, sub-lifting mechanism (above 15T), small car running mechanism and big car running mechanism.
Includes: motor, coupling, transmission shaft, brake, reducer, drum and wheel, etc.
1.2 Metal structure
It is mainly composed of bridge frame (main beam, end beam, railing, beginning, small array track), driver's cab and trolley frame.
1.3 Electrical part
Electrical equipment and electrical wiring, including bridge Diao power plant and institutions starting, speed control, reversing, brake and stop the control system.
Technical parameters
| BZD Type | BZD0.25T | BZD0.5T | BZD1T | BZD2T | BZD3T | BZD5T |
| Lifting Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Maximum radius of rotation Rmax(mm) | 4500 | 4500 | 4500 | 4000 | 4000 | 4000 |
| Minimum radius of rotation R/min(mm) | 800 (manual operation) 1050 (motor-driven) |
900 (manual operation) 1200(motor-driven) |
1140 (manual operation) 1350(motor-driven) |
1380(motor-driven) | 1400(motor-driven) | |
| Lifting height h(mm) | Generally 3000 | |||||
| Total height H(mm) | 4180 | 4200 | 4280 | 4700 | 4950 | 5150 |
| Arm Length L(mm) | 4950 | 4950 | 5000 | 4570 | 4600 | 4650 |
| Lifting speed(m/min) | 7.1 | 6.8/2.3 | 6.9/2.3 | 6.8/2.3 | 8/0.8 | 8/0.8 |
| Horizontal speed (m/min) | General speed 20/low speed1~10 variable frequency | |||||
| Rotation angle | 180°,270°,360° | |||||
| Voltage | 220~460V 50/60HZ 3PH | |||||
Application:
Modern industry Production line, Assembly line of machining, Automobile industry, shipbuilding and Material lifting and warehouse, wharf, Laboratory.
It`s an optimal lifting equipment for enterprise to improve work efficiency and working conditions.
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
Installation:
The independent support frame components are separated from the cantilever during installation, which is easy to install.
Embedded bearing assemblies greatly reduce the additional clearance required for installation;
The bolt fastening between the support frame components and the spiral arm enables the installation work to be carried out separately.
The spiral arm can be installed on the roof of the workshop or under the top barrier very close to, which minimizes the occupancy of the top space and increases the hoist lift.
Hoist trolley running stop bolt fastening, can be installed according to the position of the application change;
Top fully sealed bottom inlet collector assembly can be pre-installed or later installed.It can supply power to the hoist under the application environment of 360° rotation.
