Temporary 3.2T Portable Aluminum Gantry Crane Portable A Frame Gantry

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Name: Portable Aluminum Gantry Crane Rated Loading Capacity: 3.2T
Certification: CE/ISO9001/SGS Crane Feature: High Efficiency,Adjustable Height,gantry Crane
Main Electrical Parts: Schneider,Chint Brand Type: 4 Wheels,gantry Crane
Lifting Mechanism: Manual Hoist Or Wire Rope Hoist Other Name: Portable A Frame Gantry
High Light:

3.2T Portable Aluminum Gantry Crane

,

Temporary Portable Aluminum Gantry Crane

,

3.2 Ton Portable A Frame Gantry

Product Description

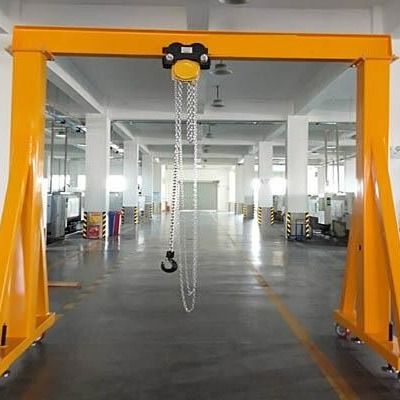

Temporary 3.2T Portable Aluminum Gantry Crane Portable A Frame Gantry

Product description of Portable Aluminum Gantry Crane




1. Quick and easy relocation using its wheels

2. Height adjustment by means of rack-and-pinion jack possible

3. Support height and crane rail length can be adjusted to conditions on the spot

4. Easy installation

5. High quality coating

6. Small volume, light weight, covers less space.




Technical parameters of Portable Aluminum Gantry Crane



Loading capacity 0.25 ~ 20t
Lifting height 3 ~ 10 m or customized
Lifting speed Single speed: 3~ 8 m/min; or customized
Span 3~10 m
Lifting mechanism Hoist trolley
Working class A2 ~ A3
Working temperature -20-+40℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-24 / 36V
Motor protection class IP54 IP55 IP65
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer, current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied



Features of Portable Aluminum Gantry Crane



The unique portable gantry system can be safely lifted up to 5000kg with only 4 bolts for manual assembly.


Innovative, light weight, portable, safe and powerful carrying capacity


Portable gantry hoisting systems are the first choice for customers seeking safety


Meet multiple site enhancement solutions and healthy return on investment


Its unique features and security have been proven to meet the needs of users in various industries





Packing and shipping of Portable Gantry Crane



Temporary 3.2T Portable Aluminum Gantry Crane Portable A Frame Gantry 0

Temporary 3.2T Portable Aluminum Gantry Crane Portable A Frame Gantry 1
