Manual Driven Durable 10 Ton Span 5M Portable Gantry Crane

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Rated Loading Capacity: 10t Main Electrical Parts: Chinease Famous Brand
Lifting Mechanism: Manual Hoist Or Wire Rope Hoist Power Source: Manual
Type: 4 Wheels Color: Optional
High Light:

Span 5M Portable Gantry Crane

,

10 Ton Portable Gantry Crane

,

5M Adjustable Gantry Crane

Product Description

PT Type 10Ton Span 5M Manual Driven Durable Portable Gantry Crane



Product description of Portable Gantry Crane



Simple gantry crane is a easy gantry crane, is a small light lifting equipment.


This crane is a device prepared for lifting a load and transporting it without effort to its destination, thanks to the action of the motors at both sides of the gantry crane and under the control of a single operator.


It consists of a free-movement gantry over the ground (no rails) generally equipped with a hoist.



It also allows configuring the manual push (PLE). It presents great flexibility in its movements since it can move in any direction thanks to its steerable wheels. However, it requires two operators to move it.



Different from the other characteristics of the gantry crane is any movement in ordinary concrete floor, it can be widely used in factories, workshops, field, warehouse, small equipment installation, goods and workpiece handling; wharves, building low they should not use castor wheels erection of traffic and other places; can also be used for loading and unloading cargo at various locations, these can get the desired results.



The biggest advantages of simple gantry omnidirectional mobile, small footprint, the rational design of steel structure, able to withstand the weight up to 5 ton.



The mobile gantry chain hoist or electric hoist can choose practical products according to your require.


Technical parameters of Portable Gantry Crane





Model Rated Load (T) Span (m) Equipment Height (m) Girder Height (mm) Adjustable Height (mm) Beam Width (mm)
PT5-0.5 0.5 3-6 3-6 160 NO 1800
PT5-01 1 3-6 3-6 180 NO 1800
PT5-02 2 3-6 3-6 220 NO 1800
PT5-03 3 3-6 3-6 250 NO 1800
PT5-05 5 3-6 3-6 300 NO 1800


Simple gantry crane placement and use details:


1. Before installation, the equipment shall check the construction environment, clear the surrounding obstacles that affect the operation, and leave more space for installation, placement and construction.


2. The installation of equipment shall be carried out by professionals, and tests shall be carried out before the use of the equipment to ensure comprehensive and reliable functions of the equipment.


3. Add lubricating oil to frequently friction parts to reduce friction during use and make the operation smoother.


4. The equipment is generally used with electric hoist. We should also check the integrity and reliability of electric hoist before installation and test it after installation.


5. The installation and placement of the electrical system should also be planned in advance to ensure that the operation will not interfere with the normal operation.





Product Details of Portable Gantry Crane



Structure Features: The steel frame uses square steel tube as the main body; one end of the upright column is connected with the beam by bolts. And the beam ends were equipped with antioff device.



The other end of the upright column uses bolts to connect with the bottom beam with locking mechanism universal wheel.



Performance Excellences: The product has the advantages of simple structure, flexible assembly and transportstrong mobility, economic benefits and high safety performance, can withstand the weight from 1000 ~5000kg.



If the height of the plant is limited, you can choose low headroom electric hoist for easily low altitude operation.



Suitable Occasions: flat ground, warehouse, logistics center, production workshop, Laboratory, clean room, etc.

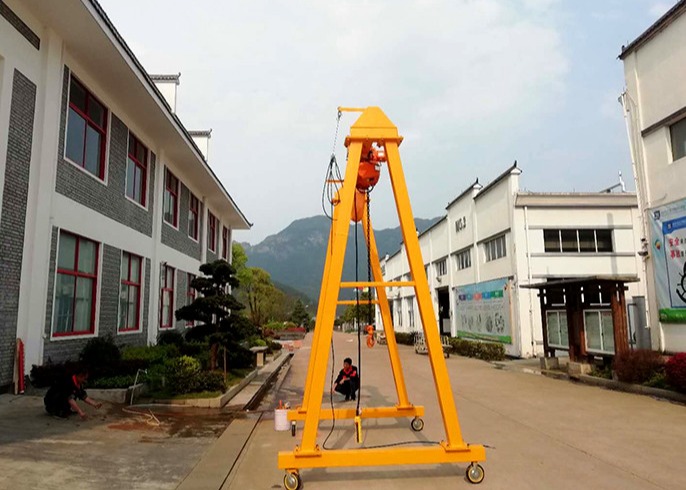

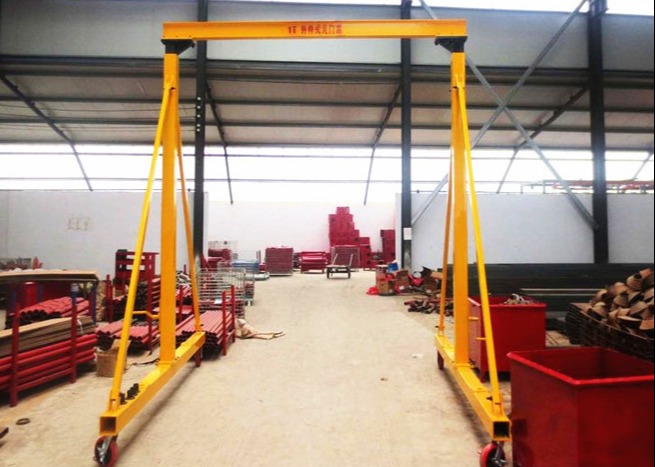

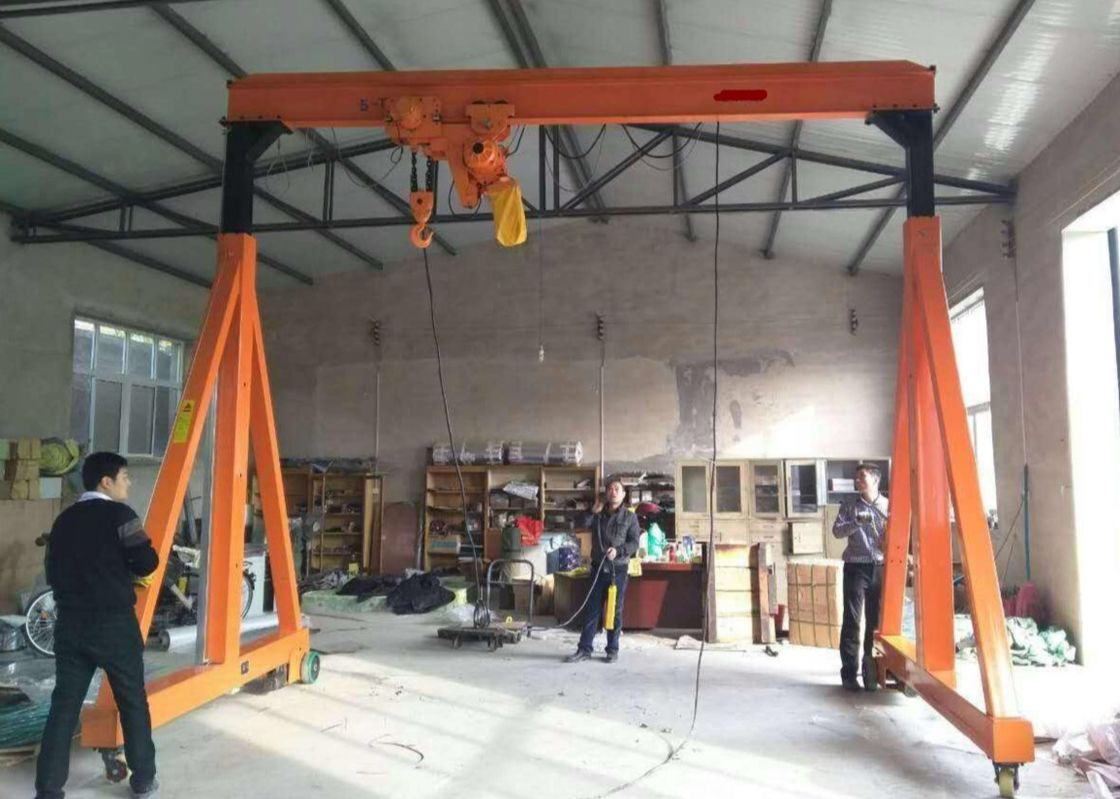

Manual Driven Durable 10 Ton Span 5M Portable Gantry Crane 0Manual Driven Durable 10 Ton Span 5M Portable Gantry Crane 1



Packing and shipping

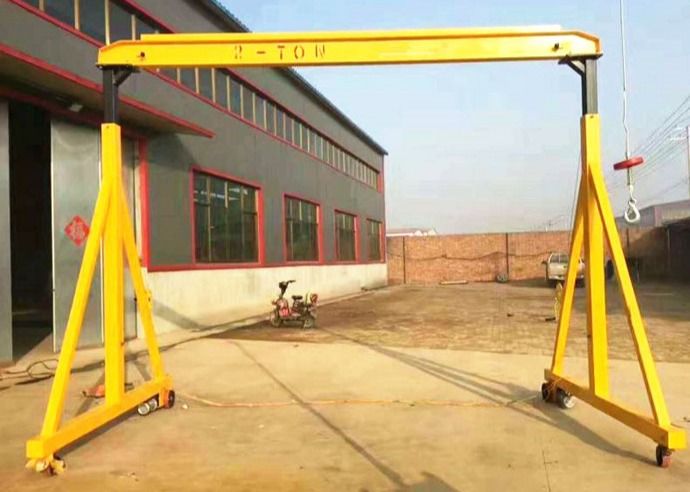

Manual Driven Durable 10 Ton Span 5M Portable Gantry Crane 2
