5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Name: Single Girder Gantry Crane Rated Lifting Moment: Load Capacity
Span: 12-30m Application: Material Handling
Max. Lifting Load: 32 Ton Main Electrical Parts: Chinese Famous Brand
High Light:

5 Ton Single Girder Gantry Crane

,

30m Single Girder Gantry Crane

,

5t rail mounted gantry crane

Product Description

5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling

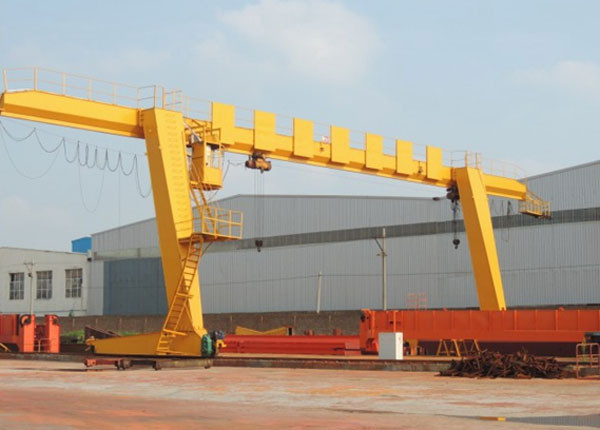

Product presentation of Single girder gantry crane



Single girder gantry crane is usually regarded as a light duty gantry crane due to its single beam structure design, which is mostly used in outdoor, open air and other environments that do not have the conditions of column driving beams. The main beam is supported by two outriggers, and a ground beam walking mechanism is arranged under it, which walks back and forth along the track.


Technical parameters of Single girder gantry crane:



Technical Parameter of MH Single Girder Electric Hoist Gantry Crane
Capacity t 3 5 10 16 20
Lifting height m 6~12 6~12 6~12 6~12 6~12
Lifting speed m/min 8 8/0.8 8 8/0.8 7 7/0.7 3.5 3.5/0.35 3.5 3.5/0.35
Trolley speed m/min 20 20 20 20 20
Crane speed m/min 20 20 20 20 20
Work duty   A3-A4 A3-A4 A3-A4 A3-A4 A3-A4
Track type   P24 P38 P24 P38 P38 P43 P38 P43 P38 P43



Single girder gantry crane can be divided into box type and truss type.


Box type


The box type single girder gantry crane is usually equipped with standard CD MD electric hoist as the lifting mechanism, and the electric hoist traversing along the lower flange of the I- steel of the main girder, which is made of high quality steel plates, such as, C-steel and I-steel.



5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling 0


Box Type Single Girder Gantry Crane Drawing



Truss type


The truss single girder gantry crane are different from the box type crane . The truss single girder gantry is made of steel bars, and the latter is made of steel plates. The truss gantry crane have many good advantages,it is much lighter than that of the box type gantry crane and it has high wind resistance.



5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling 1

Truss Type Single Girder Gantry Crane Drawing




Application of Single Girder Gantry Crane



MH type single girder gantry crane are regular crane designed for general material handling, often used in open ground, warehouse, ports, granite industry, cement pipeline industry, open pit yard, container yard, shipyard, etc. However, it is forbidden to deal with molten metals that are flammable. Or explosive objects.



MH single girder gantry crane safety feature



■ Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.



■ Limit switches is used to prevent over lifting or lowering of the crane hook.



■ High quality polyurethane buffer is used to ensure a long time working life.



■ Room control and remote control are available for the sake of your operator’s safety.



■ Low voltage protection is used in case of the unstable voltage supply.



■ Emergency stop button is installed to brake the equipment when emergency happens.



■ Current overload protection system and others, etc.





Packing and shipping





5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling 2
