32m Lifting Height Single Girder Gantry Crane Suitable For General Loading

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Warranty: 2 Years Max. Lifting Height: 32m
Application: Outdoor, Widely, Indoor Feature: Gantry Crane
Color: Customer Requirements,According To Your Demand Lifting Speed: 7/0.7m/min
High Light:

single beam gantry crane

,

warehouse gantry crane

Product Description

2020 Year New Design 5 10 Ton MH Type Single Girder Gantry Crane Price





Product presentation

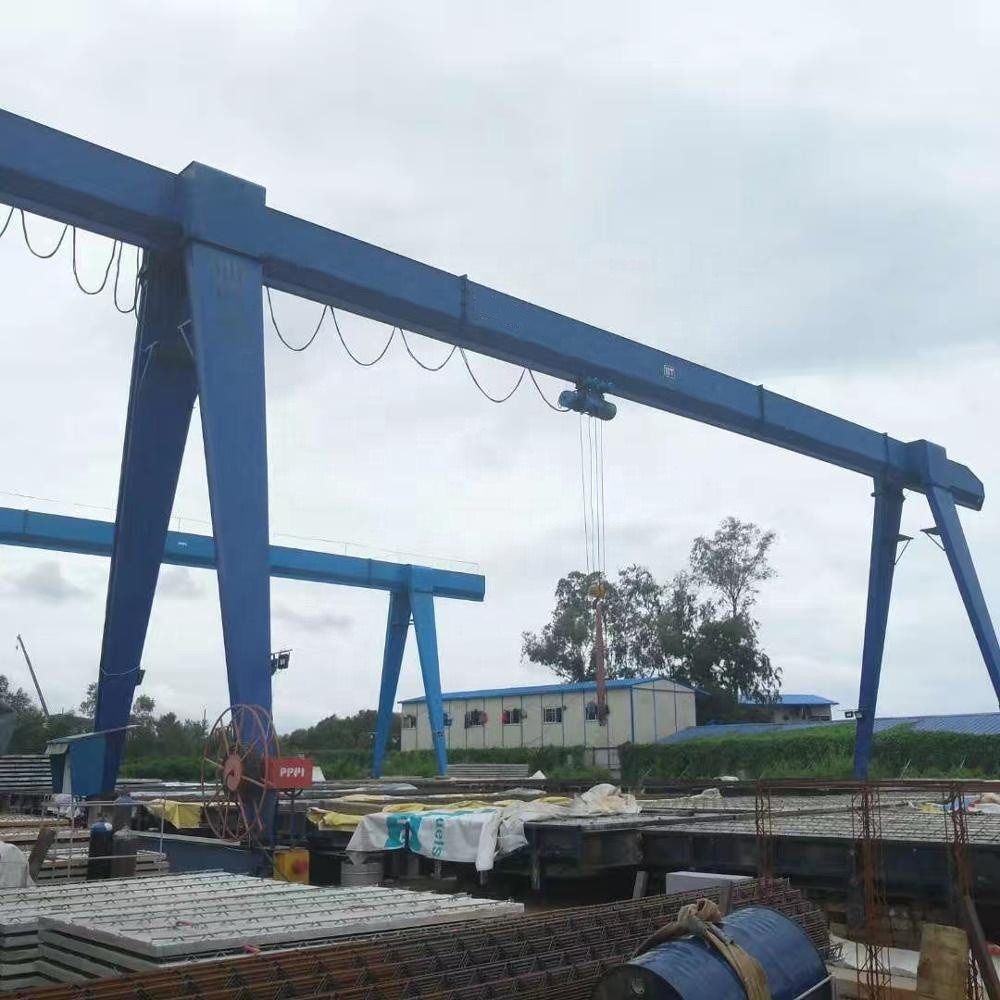

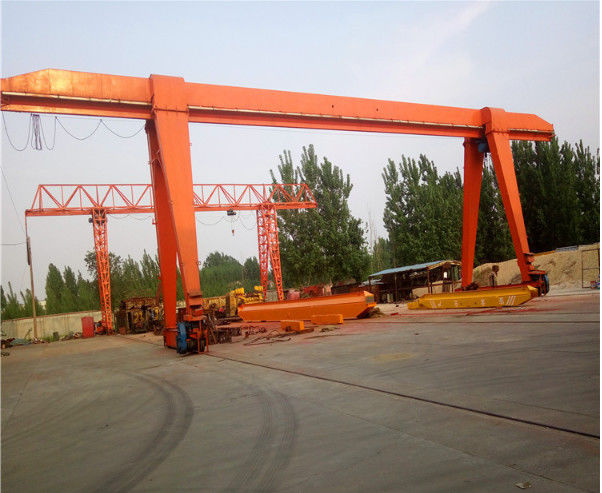

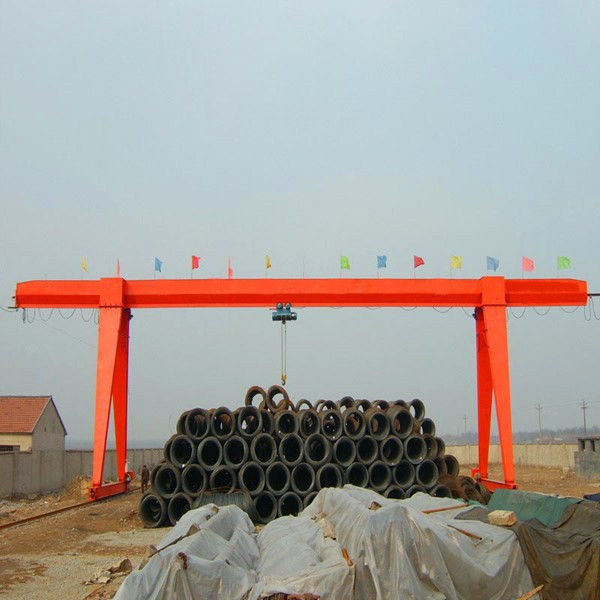

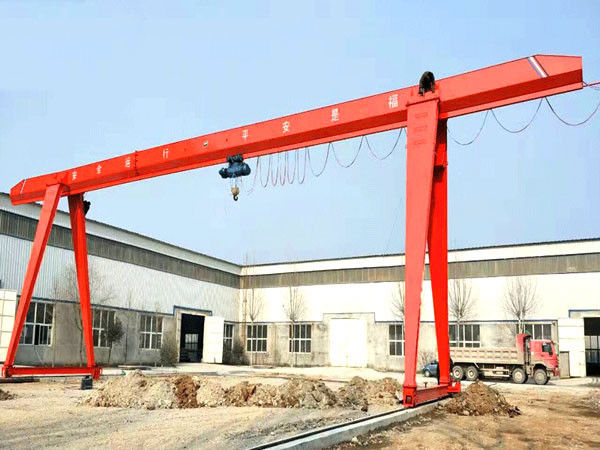

MH model electric hoist gantry crane is used together with the CD MD model electric hoist. It's a track traveling small and medium-sized crane. Its proper lifting weight is 3 to 16 ton, proper span is 12 to 30 meters. Its proper working temperature is -20~+40℃.



This product is a regular crane widely used at open ground and warehouses to load, unload or grab materials. it has 2 controlling methods, namely ground controlling and room controlling.



The gantry structure is divided into box shape and truss, the whole machine has the characteristics of lightweight, simple structure, easy installation and maintenance.



Suitable for general loading, unloading and hoisting work in factories, mines, cargo yards, warehouses and other outdoor places within the range of medium and small lifting weights. It is prohibited to work in the environment with inflammable, explosive and corrosive gas.





Construction features



1. Metal part



This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.



The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.



The electric hoist walks directly under the i-steel lower flange plate of the main beam.



For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.



2. Electric hoist



Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch



Protection class F class



Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath



Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China







Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.



Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope



High-quality wire rope, Strength of extension: 1670 N/m2



3. Operating mechanism



This product is in the form of separate drive, drive braking by cone rotor motor to complete;



Transmission is the use of "one open and one close" gear transmission.



4. Electrical equipment



Module control speed, micro-speed and double speed;



Traveling and lifting smoothly;



The power for trolley moving adopts flat cable, sliding smoothly;



Control box layout is reasonable, easy to repair;



Protection class IP55;



Optional main power source ;



All external cable line number with the mark;



Safety smooth touchline, high conductivity, small pressure drop;



Lightweight, installation convenience;



Set electric taxi speed is high, ensure continuous power supply;



Optional speed control module, and can realize the micro speed and double speed.



5. The specification of this product is expressed as follows:



(1).Ground controlling



Example: lifting weight 5t, span 7m, working-level A3.



Representation: MH5-7A3-D JB/t5663-2008



D is for ground control.



6.rail system:



Crane rails, clamp plate & press plate



High quality reputed make



32m Lifting Height Single Girder Gantry Crane Suitable For General Loading 032m Lifting Height Single Girder Gantry Crane Suitable For General Loading 1



Technical parameters



32m Lifting Height Single Girder Gantry Crane Suitable For General Loading 2



Lifting weight t 5
Span m 12 18 20 24
Lifting height m 6/9
Traveling part traveling speed Ground m/min 20
Controlling room 20 30
motor Ground   YSE802-4/0.8*2 YSE90L-4/1.5*2
Controlling room   ZDR100-4/1.5*2 ZDR112L1-4/2.1*2
Reducer   LD actuating device
Wheel Diameter mm Φ270
Electric hoist Type No.   CD,MD
Lifting speed m/min 8 0.8/8
traveling speed m/min 20
Motor Lifting   ZD141-4/7.5 ZDS0.8/7.5
Traveling   ZDY21-4/0.8
Working-class   A3
Steel track Recommended   P24
Power supply   3P 380V 50Hz
Max wheel pressure KN 37/42 40/46 44/50 48/54
