Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LDP

Detail Information

Type: Single Girder EOT Crane Condition: New
Duty Class: A3~A4 Export Markets: Global
Control Method: Wireless Remote Control Application: Warehouse
High Light:

Span 31.5M Single Girder EOT Crane

,

Span 7.5M Single Girder EOT Crane

,

Low Headroom European Overhead Crane

Product Description

Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom

LDP Single Girder EOT Crane

The LDP type widely used in plants, warehouses, material stocks to lift goods or materials. It is prohibited to use the equipment in the combustible, explosive to corrosives environment


The main girder of the LDP type electric single beam crane adopts the box-type main girder, deviated rail form, and the special electric hoist trolley is used for matching, the special electric hoist trolley is mostly used with CD1, MD1 and other electric hoists. The LDP-type electric hoist adopts a slant hanging form and runs on the side of the main beam. The hoist position is lifted from the traditional main beam to the upper side of the main beam, which effectively improves the lifting height. Car running for the cone motor brake, open-gear transmission. The main beam is a box structure, deviating from the rail, and equipped with horizontal wheels at the top and bottom.



Technical parameter of Single Girder EOT Crane



Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied



Feature of single girder overhead crane

1). Light structure, easy installation and maintenance;
2). Widely used in different places for hoisting such as factories, warehouses and material yards;
3). Reasonable structure, strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low-cost maintenance, long working life;
7). Strongbox type, welding by machine hand.;
8). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
9). Heavy-duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running

10). Siemens main electric parts are used for durable and safe operation.;
11). Prohibited to use in the environment with inflammable, explosive and corrosive media.



Q&A



1. What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2. Which kind of crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds of crane with customized parameters.

3. What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4. Which brand is the accessories and electronic components in your cranes?

We have long term cooperation with ABB, Siemens, Schneider, , etc. And we have world-leading processing machines which are imported from Japan and German.

5. Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.

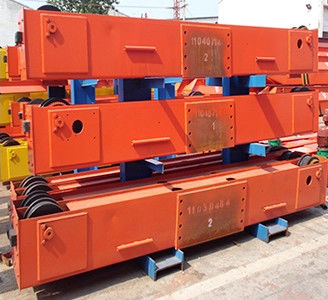

Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom 0

Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom 1

Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom 2

Warehouse Span 7.5~31.5 M Single Girder EOT Crane Low Headroom 3
