35T Double Girder Workshop Overhead Crane A5 Working Duty

Minimum Order Quantity : 1 set Price : USD80000-150000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD LH

Detail Information

Name: Double Girder Workshop Overhead Crane Power Source: 380V 50hz
Working Duty: A5 Working Duty Crane Feature: Box-type Steel
Type: QD Model Main Electrical Parts: CHINT,Famous Brand
Control Method: Cabin Control
High Light:

35T Workshop Overhead Crane

,

A5 Workshop Overhead Crane

,

35T Double Girder Overhead Crane

Product Description

35T Double Girder Workshop Overhead Crane A5 Working Duty



The product description of Double Girder Workshop Overhead Crane


* Double Girder Workshop Overhead Crane is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.
* Double Girder Workshop Overhead Crane looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.
* Double Girder Workshop Overhead Craneconsists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.



Technical parameters of Double Girder Workshop Overhead Crane



Lifting capacity(t) 5-50/10 75/20-100/20 125/32-250/50 300/40-350/75 400/80-450/80
Span(m) 10.5-31.5 13.5-31.5 13-31 17, 22 21, 20.8
Crane travel Speed (m/min) A5 17.7-91.9
mechanism A6 17.7-93.7
Lift & hoist travel Lifting speed Main hook A5 3.9-11.3 0.84-4.4
mechanism (m/min) A6 4.9-15.6
    Aux hook 4.78-15.6
  Max lifting Main hook 12,16,20,22,24,25,28,30,32
  height (m) Aux hook 14,16,18,22,26,30,32,33,40
  Traveling speed (m/min) 5-44.6
Working duty A5, A6
Power 380V 50Hz three-phase



Advantages of Double Girder Workshop Overhead Crane



1. Double beam bridge crane is the first honeycomb beam design, with light dead weight, large load, strong wind resistance and other characteristics.
2. Unique steel pin connection, not only firm and reliable, but also short assembly time.


3. Flexible strut legs, site steering can be disassembled into a single piece, easy to transport.


4. The minimum installed capacity solves the difficulty in using electricity for field construction.







Features of Double Girder Workshop Overhead Crane

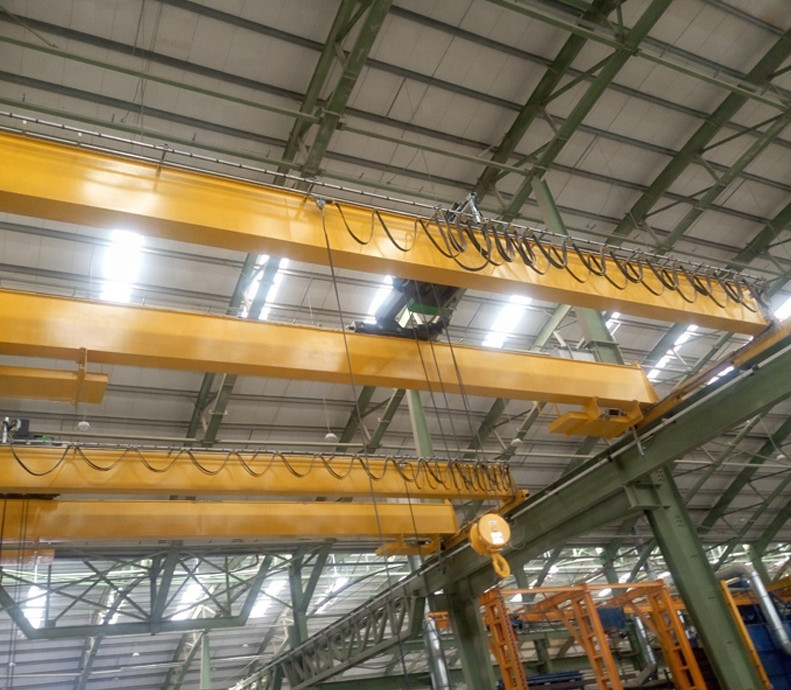

35T Double Girder Workshop Overhead Crane A5 Working Duty 0

1. The working class of double-beam bridge crane is divided into A1-A8 classes according to the utilization class (the number of working cycles within the design life period) and load state (nominal load spectrum coefficient).



The technical performance of A5 and A6 standard products is shown in the table. Other work levels require special orders.


2. The double beam bridge crane is composed of four parts: bridge frame, trolley, trolley operating mechanism and electric control equipment.


3. The bridge frame of double-beam bridge crane is a box-type four-beam welded structure with good bearing performance.



The control room is bright and comfortable. Fans, air conditioners and air coolers can be configured according to the needs of users.


4, Double beam bridge crane trolley lifting and running mechanism of the working speed can be changed according to the user's requirements, can be equipped with an electronic scale, there are a variety of speed regulation (including frequency conversion speed regulation) for the user to choose first.Double brakes are provided for cranes that carry hazardous materials and liquid metal.


5, the electrical control of the double-beam bridge crane has two ways of driver's cab control and ground remote control for users to choose first, short circuit protection, loss of voltage protection, over-current protection, boarding chain protection and other safety protection.



Electrical components are selected from well-known domestic products to ensure stable and reliable operation.


6, double beam bridge crane used in the open air crane with large, car rain cover.Lifting weights: 5T, 10T, 16/3.2T, 20/5t, 32/5T, 50/10t, 75/20T, 80/20t, 100/20T, 125/32T, 160/32T, 200/50T, 250/50T, 300/80t, 350/80t, 400/80t


7. Work level;A1-A8

35T Double Girder Workshop Overhead Crane A5 Working Duty 1



The packing and shipping:

35T Double Girder Workshop Overhead Crane A5 Working Duty 2

35T Double Girder Workshop Overhead Crane A5 Working Duty 3
