6.5T Max Width 10m Warehouse Gantry Crane Simple Design Detachable Moving Freely

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Condition: New Warranty: One Year Warranty
Max. Lifting Height: 10m Span: 3-10m
Rated Lifting Moment: Load Capacity Feature: Portable Gantry Crane
High Light:

Width 10m Warehouse Gantry Crane

,

6.5T Warehouse Gantry Crane

,

6.5T bridge gantry crane

Product Description

6.5T Max Width 10m Simple Design Detachable Portable Gantry Crane Moving Freely

Product description of Portable Gantry Crane




The main girder of gantry crane bridge adopts I-shaped steel or combined section of steel mold and steel plate.Lifting trolley is usually assembled by hand hoist, electric hoist or hoist as lifting mechanism parts.It is forbidden to be used in the environment of flammable, explosive and corrosive media for lifting goods on different occasions.It has two operation modes, ground and air.



The ground operation has two kinds of wire handle operation and remote control handle operation;Air operation means operation in the driver's cab.The driver's cab has two kinds of open and closed, which can be divided into two forms of left or right installation according to the actual situation.



The entry direction has two kinds of side and end face, so as to meet the user's choice in different situations.Longmen crane is widely used in machinery manufacturing workshop, metallurgical workshop, petroleum, petrochemical, port, railway, civil aviation, power station, paper making, building materials, electronics and other industries of workshop, warehouse, material yard, etc.It has the advantages of compact size, low building headroom height, light weight, small wheel pressure and so on.






Technical parameters of Portable Gantry Crane



Loading capacity 0.25 ~ 20t
Lifting height 3 ~ 10 m or customized
Lifting speed Single speed: 3~ 8 m/min; or customized
Span 3~10 m
Lifting mechanism Hoist trolley
Working class A2 ~ A3
Working temperature -20-+40℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-24 / 36V
Motor protection class IP54 IP55 IP65
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer, current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied



Features of Portable Gantry Crane



The unique portable gantry system can be safely lifted up to 5000kg with only 4 bolts for manual assembly.


Innovative, light weight, portable, safe and powerful carrying capacity


Portable gantry hoisting systems are the first choice for customers seeking safety


Meet multiple site enhancement solutions and healthy return on investment


Its unique features and security have been proven to meet the needs of users in various industries


Movable, to meet the lifting needs of different stations, especially for maintenance stations;


Adjustable height, good product passability, strong product applicability;


Modular combination, simple and quick disassembly, suitable for different station hoisting transfer field;

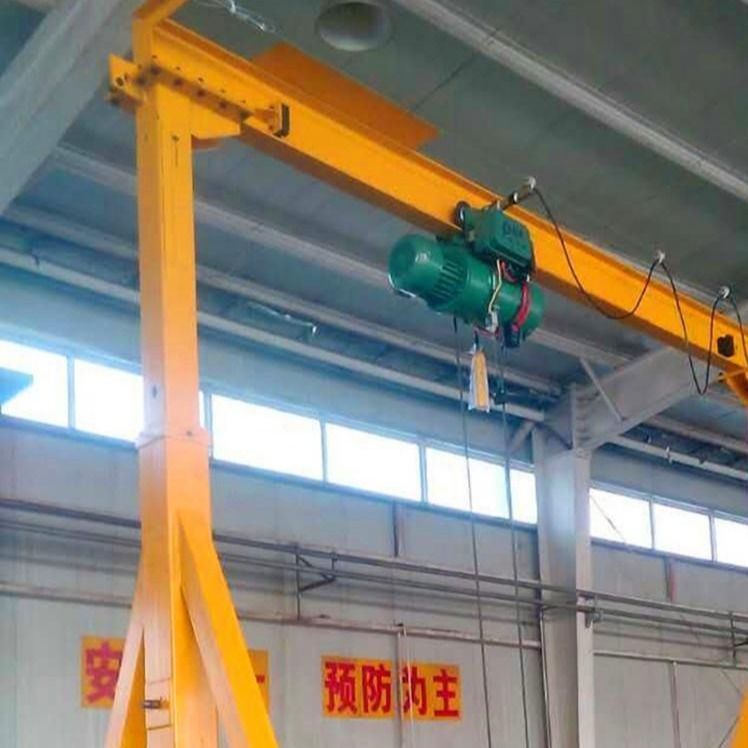

6.5T Max Width 10m Warehouse Gantry Crane Simple Design Detachable Moving Freely 0

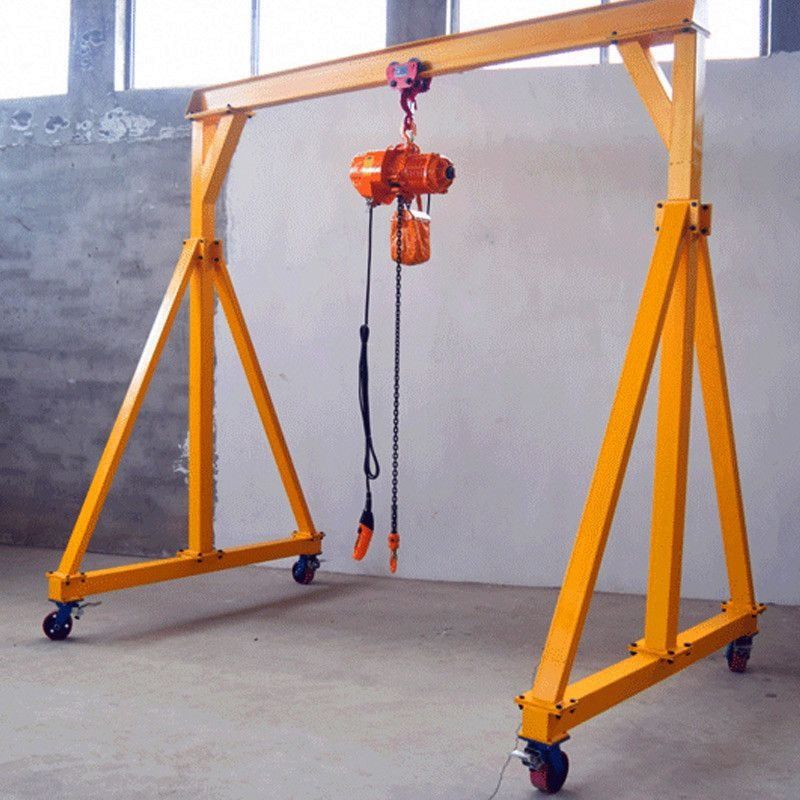

6.5T Max Width 10m Warehouse Gantry Crane Simple Design Detachable Moving Freely 1



Packing and shipping of Portable Gantry Crane

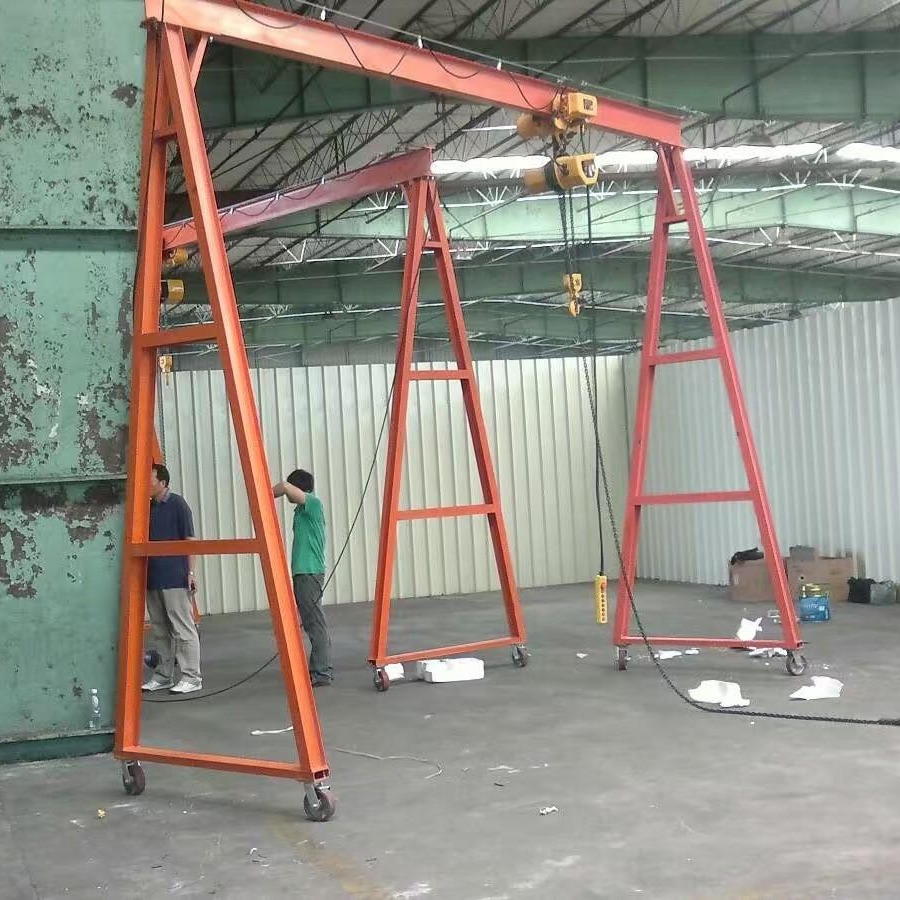

6.5T Max Width 10m Warehouse Gantry Crane Simple Design Detachable Moving Freely 2

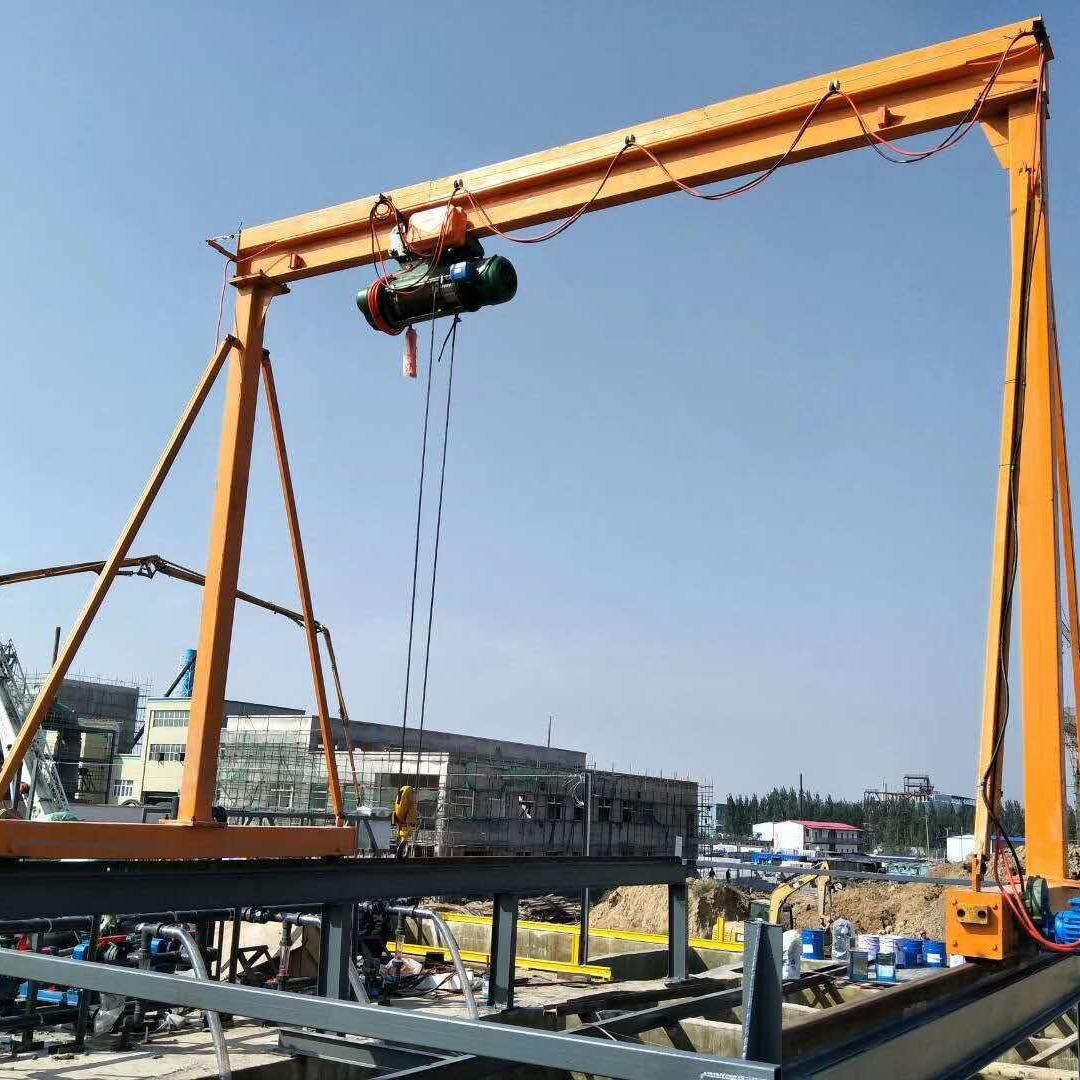

6.5T Max Width 10m Warehouse Gantry Crane Simple Design Detachable Moving Freely 3
