Double Speed 12 Ton Single Beam Bridge Crane A5 Working Class
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Price : | USD 4500-USD 15000/set |
---|---|---|---|
Packaging Details : | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth | Delivery Time : | 20 days |
Payment Terms : | T/T, L/C | Supply Ability : | 5 sets |
Place of Origin: | China | Brand Name: | Silence |
---|---|---|---|
Certification: | ISO CE | Model Number: | LD HD |
Detail Information |
|||
Warranty: | 1 Year | Span: | 24m |
---|---|---|---|
Product Name: | Overhead Crane;bridge Crane | Lifting Mechanism: | Eliectric Hoist |
Color: | Client's Demand | Power Source: | 3 Phase 380V 50hz |
High Light: | 25T Single Girder Eot Crane,18m Single Girder Eot Crane,18m overhead crane single girder |
Product Description

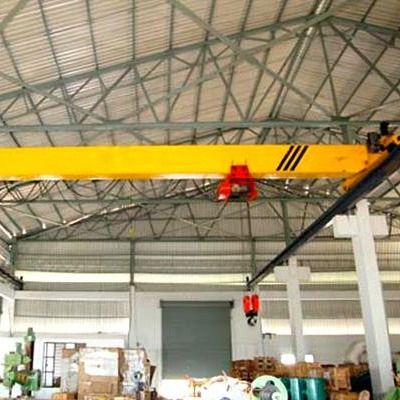

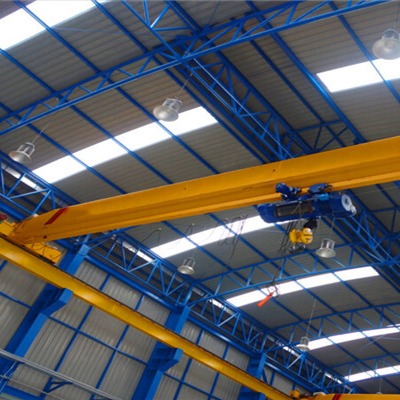

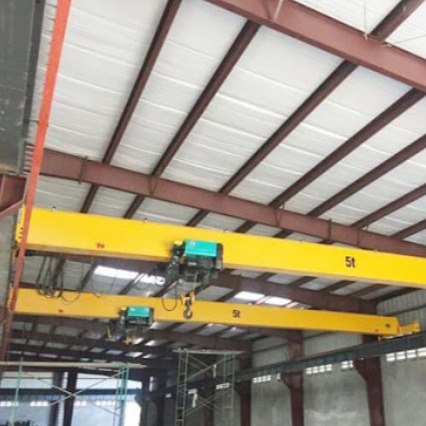

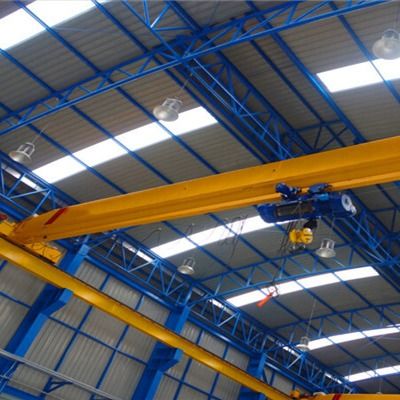

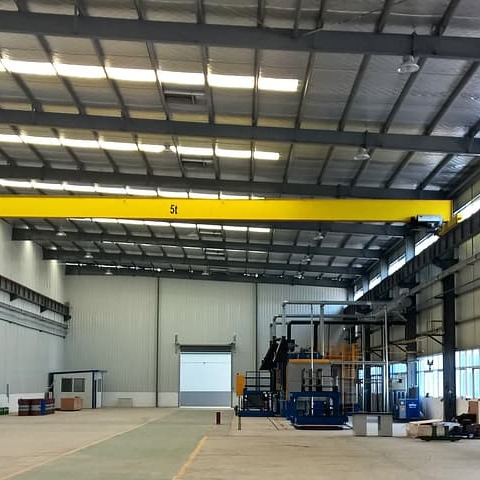

Description of Overhead Travelling Crane
The Silence single girder travelling crane is our flexible crane for almost any application. Even in buildings with low ceilings effective material flow solutions can be achieved for loads of up to 16 t and spans of up to 39 m. Normally safety clearances below ceilings are not required for single girder cranes within this load range. This allows the optimal use of existing space or can save additional building height costs.
The Silence single girder travelling cranes adapt to different building applications due to their various main girder connection variants. Favourable crane dimensions help to reach optimal highest hook positions. The main girder connection ‘version 3’ is the optimal solution for new factory buildings as this version offers the best side approach dimensions. If lifting height is the decisive factor then a single girder crane with side-running trolley is the right choice.
The single-girder travelling crane is also a good choice for special solutions: The Silence accessories and components offer specialised additional equipment to satisfy your requirements.
Technical parameter of Overhead Travelling Crane
Iteam | Specifications | |
Lift capacity(T) | 1T~100T (single girder or double girder) | |
Crane span(M) | 3~28m according to your demands | |
Lifting height(M) | 3~48m according to your demands | |
Crane traveling speed(m/min) | 5~20m/min or 5~30m/min or 5~40m/min.As your request | |
Electric hoist lifting speed(m/min) | European electric hoist | CD1 electric hoist(8 m/min) |
(5/0.8 m/min double speed) | MD1 electrc hoist(8/0.8 m/min) | |
Hoist trolley speed(m/min) | 0-20 m/min | 20m/min or 8/20m/min |
Remote control | F24-6D/F24-10D or F21-E1B etc, according to your demands |
FAQ:
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
Installation procedure of overhead travelling crane
