Double Speed 12 Ton Single Beam Bridge Crane A5 Working Class
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Price : | USD 2500-USD 9000/set |
---|---|---|---|
Packaging Details : | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth | Delivery Time : | 20 days |
Payment Terms : | T/T, L/C | Supply Ability : | 5 sets |
Place of Origin: | China | Brand Name: | Silence |
---|---|---|---|
Certification: | ISO CE | Model Number: | LX |
Detail Information |
|||
Max Span: | 30m | Warranty: | 2 Years |
---|---|---|---|
Feature: | Bridge Crane | Lifting Mechanism: | Electric Hoist |
Color: | Clients' Requirments, Yellow | Crane Type: | Suspension Single Girder Overhead Crane |
High Light: | 7.5 Ton Suspension Single Beam EOT Crane,8m Span Suspension Single Beam EOT Crane,8m Span single beam Overhead crane |
Product Description

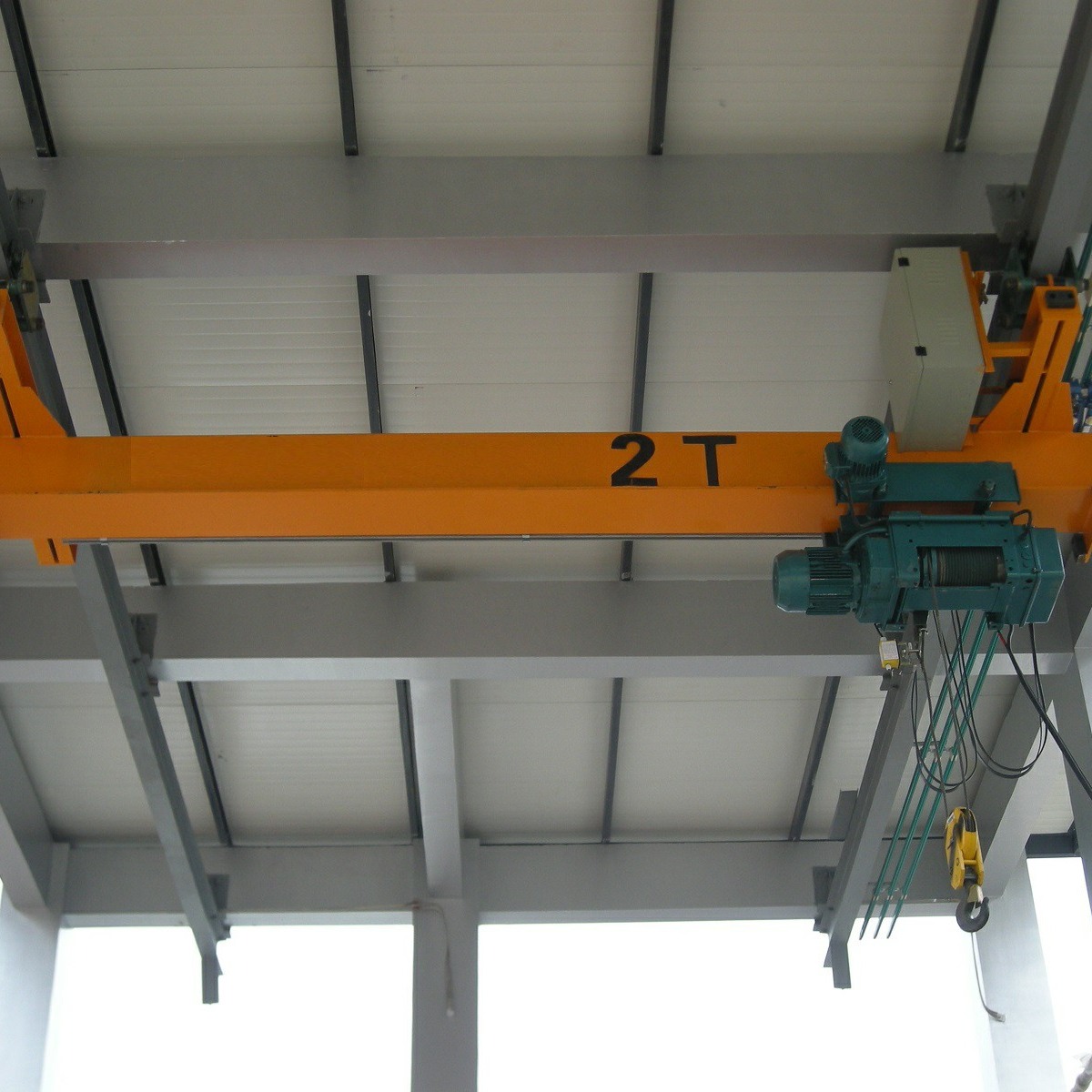

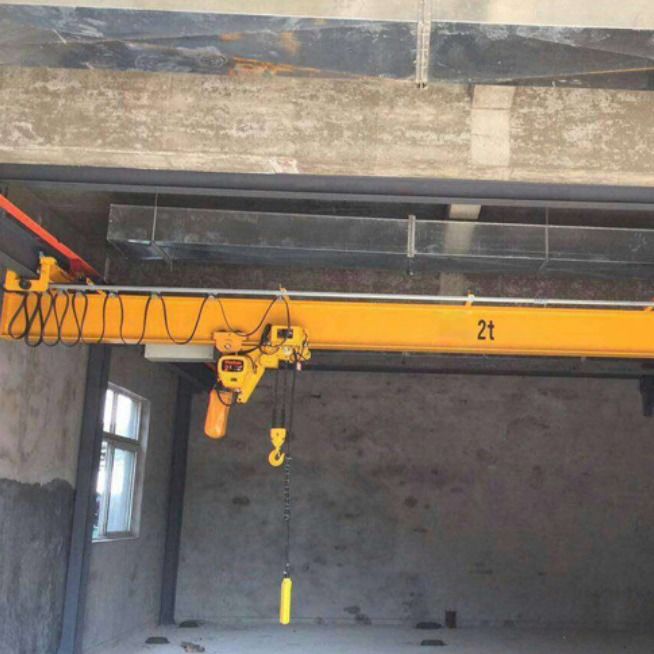

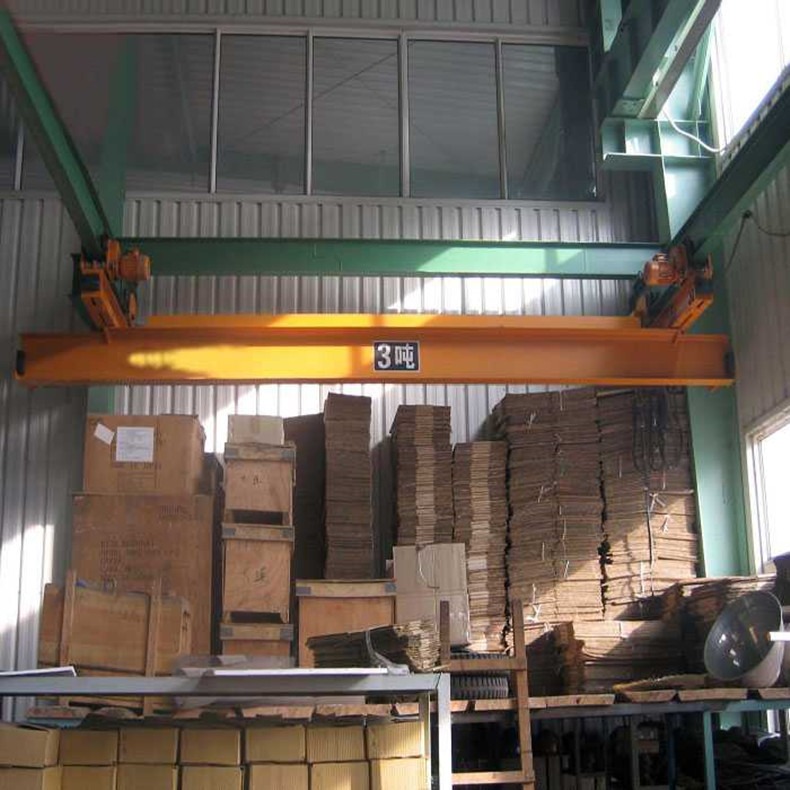

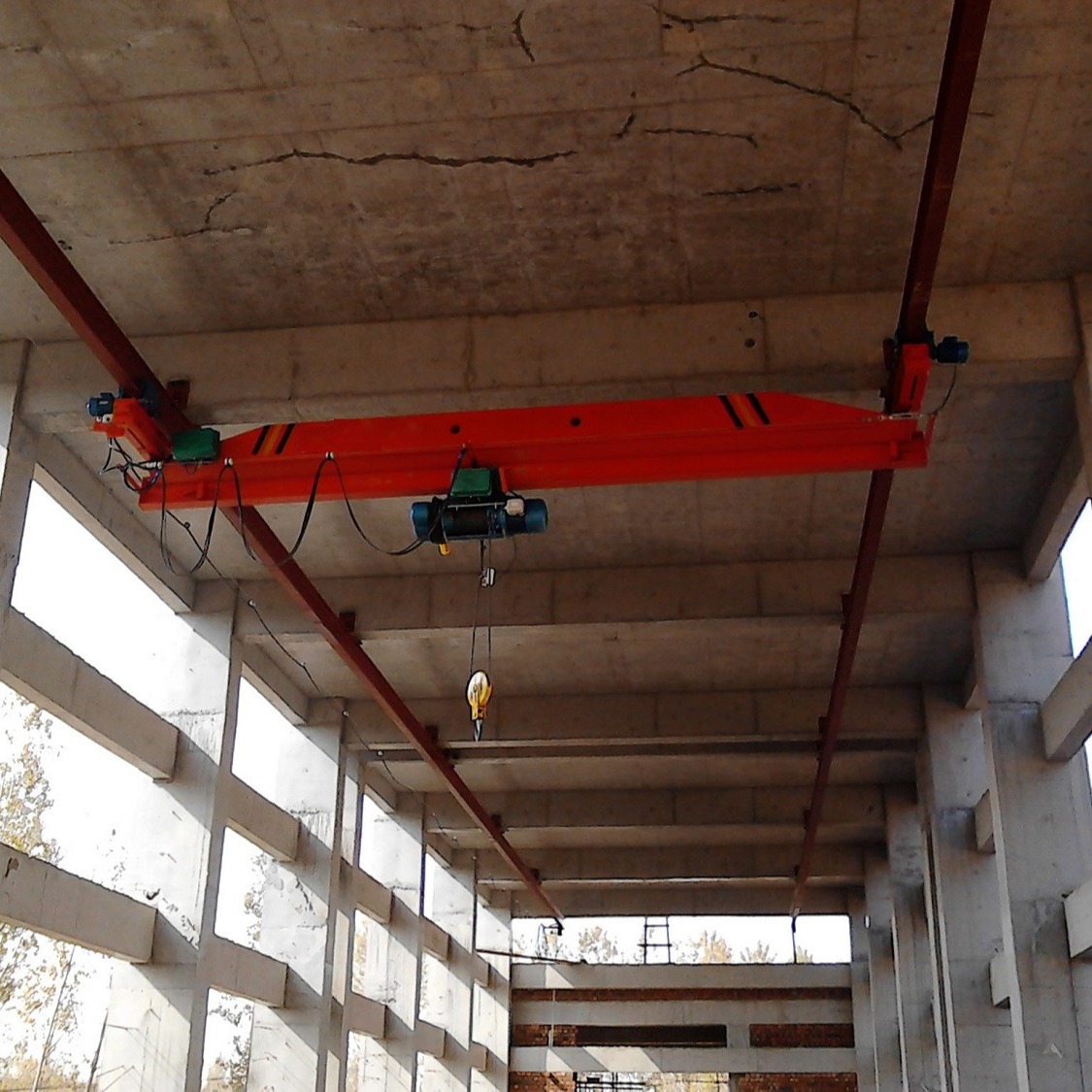

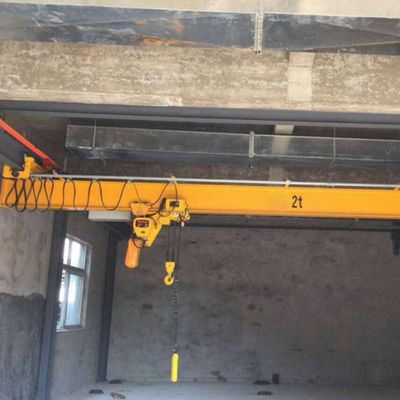

Description of Suspension Overhead Travelling Crane
LX-type Electric Single-Girder Underslung (suspension) Crane is a kind of light & small crane with track and usually used together with CD1, MD1 or HC type electric hoist. Generally, the lifting capacity is 0.5~20t, the span is 3~16m, traveling speed is 20m/min or 30m/min. It also can be tailor made as your special requirements.
With its advantages, such as tight structure, rigidity, flexible operation, low noise, safety and reliability, LX Underslung (suspension) Crane are widely used at sites like industrial and mining company, storehouse and material yard etc.
Technical parameter of single girder overhead crane
Lifting capacity (T) | 1, 2, 3, 5, 10T | 16, 20T | |||||||||||
Span(M) | 7.5-22.5M | ||||||||||||
Crane traveling mechanism | Traveling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 | ||
Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | |||
Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |||||||
Power(kw) | 2× 0.8 | 2× 1.5 | 1.5× 2 | 2.2× 2 | 2.2× 2 | ||||||||
Rotation (m/min) | 1380 | 1380 | |||||||||||
Lifting mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
(electric hoist)& electric hoist traveling mechanism | Lifting speed (m/min) | 8, 8/0.8 7, 7/0.7 | 3.5 3.5/0.35 | ||||||||||
Lifting height (m) | 6, 9, 12, 18, 24, 30 | 12, 18, 24, 30 | |||||||||||
Traveling speed (m/min) | 20(30) | 20(30) | |||||||||||
Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
Work duty | A3-A4 | ||||||||||||
Power supply | 380V 50HZ three phase | ||||||||||||
Wheel diameter | 270mm | 370mm | |||||||||||
Width of trail | 37-70mm | 37-70mm |
Detailed Configuration of Suspension Overhead Travelling Crane
Mechanical Features
- LX-type crane is mainly composed of main-girder, cross beam, cabin, electrical components & lifting mechanism (electric Hoist, chain hoist or manual block)
- The main girder can be in form of I-shape, box-type or combination structure according to different lifting capacity and span.
- Shot-blasting Sa2.5 for complete girder after welding, stress release
- Epoxy zinc rich high quality painting, 2x2 with 140μ M
- 10.9 class High tension bolts mounting between girder and legs
- Geared Motor Driver system or traditional LD Driver system
- Smoothly moving, effectively braking, long service life
Electrical Features
- Conductor power supply
- All hoist and crane movements are independent and can be run simultaneously.
-The control panels are IP54
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
Protective Features
- Overload Limiter, Limit Switch (Lifting and Traveling), Interlock protection device, Buffer, Rail clear plate, Protective cover, Bus Bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection
Sketch & Technical Data( Standard Designed Crane)
We can design the crane according to your actual application.
