Product Description
50Ton Rail Mounted Double Trolley Goliath Single Beam Gantry Crane Easy To Install
Product presentation of Single girder gantry crane

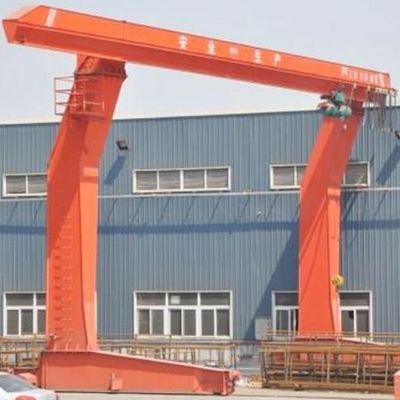

L type single beam gantry crane is distinguished by its unique structure, L-shaped support legs, which makes it perfect for handling long pieces of items. The L-type gantry crane is capable of lifting and moving heavy loads in a range of 5 tons to 50 tons, widely used in open freight yard, railroad terminals, factories and warehouses. This type of single girder gantry crane is an essential tool for increasing working efficiency, safety and productivity of lifting operations.
Technical parameters of Single girder gantry crane
| Lifting capacity |
Span |
Lifting height |
Work duty |
Main lifting |
Deputylifting |
Trolley travelling |
Crane travelling |
Power |
Rail type |
| (t) |
(m) |
(m) |
(m/min) |
(m/min) |
(m/min) |
(m/min) |
(KW) |
| 5 |
18~22 |
10 |
A5 |
9.2 |
-- |
36.6 |
46.3 |
27.8 |
43Kg/m |
| 26~35 |
11 |
40.1 |
36.8 |
| 10 |
18~22 |
10 |
8.5 |
-- |
39.7 |
39.6 |
38 |
| 26~35 |
11 |
40.1 |
47 |
| 16/3.2 |
18~26 |
10 |
7.9 |
11.2 |
39.5 |
40.1 |
64.6 |
| 30~35 |
11 |
47.1 |
75.6 |
| 20/5 |
18~26 |
10 |
7.1 |
9.2 |
39.3 |
40.1 |
67.3 |
| 30~35 |
11 |
47.1 |
78.3 |
| 32/5 |
18~22 |
10 |
6.3 |
9.2 |
38.6 |
48.2 |
85.5 |
QU80 |
| 26~35 |
11 |
38.6 |
93.5 |
| 50/10 |
18~26 |
10 |
5.9 |
8.5 |
38.5 |
39.7 |
141 |
| 30~35 |
12 |
Structural Features of L type Single Girder Gantry Crane:
1. Due to L-shaped structure, it is much easier to lift and move over-length or oversize items through the legs.
2. It is featured by light dead weight and small wheel pressure.
3. Given a certain lifting height, the overall height of this crane will be reduced in contrast to other types of cranes, thus saving a great deal of costs for customers.
4.Our gantry crane is with sturdy construction, which enables it to withstand severe working environments and prolong its working life.
5. Modular design makes it easy to assembly and disassembly.
6. It requires little maintenance and less operating cost.
7. The single beam crane is designed with a soft start for long travel operation to ensure a stable and smooth movement.
L-shape Single Beam Gantry Crane Options:
1. The single beam gantry cranes provided by our company are with a number of different options and accessories for you to choose from, including:
2. Rated load capacity: from 5 ton to 50 ton
3. Gantry frame: box-type welded structure
4. Hoisting mechanism: hoist or trolley
5. Control mode: pendant control, wireless remote control or cabin
6. Crane travelling mechanism: separate drive
7. Working environments: indoor, outdoor, explosive, high heat, dust, marine, etc.
8. Paint color: according to customer’s requirements
9. Custom design: available
