Soft Starting Stopping 8m Height 8T Building Gantry Crane

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Warranty: 1 Year Max. Lifting Height: 32m
Span: 12-30m Rated Lifting Moment: Load Capacity
Feature: Gantry Crane Application: Widely,factory
High Light:

8T Building Gantry Crane

,

8m Height Building Gantry Crane

,

8m Height travelling gantry crane

Product Description

30 Ton Single Girder Gantry Crane Low Noise, Soft Starting And Stopping 8m Height

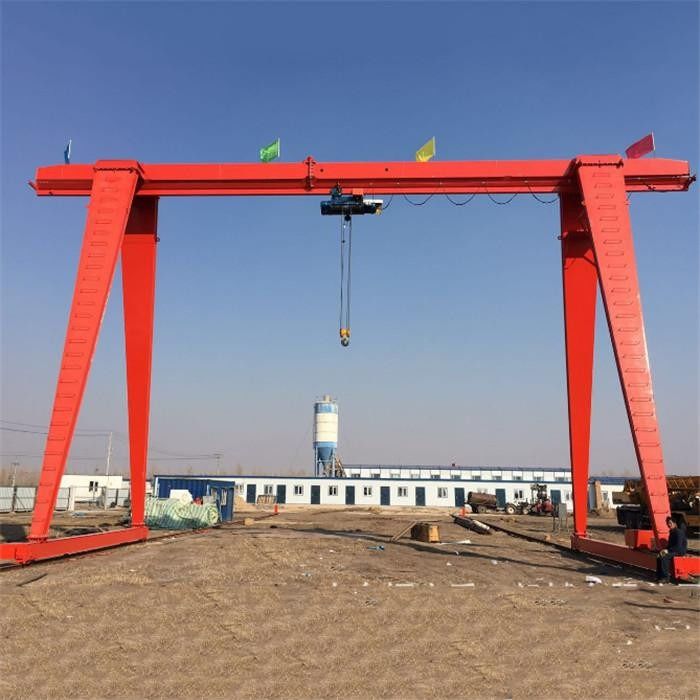

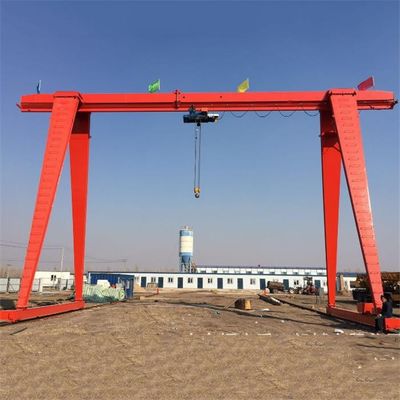

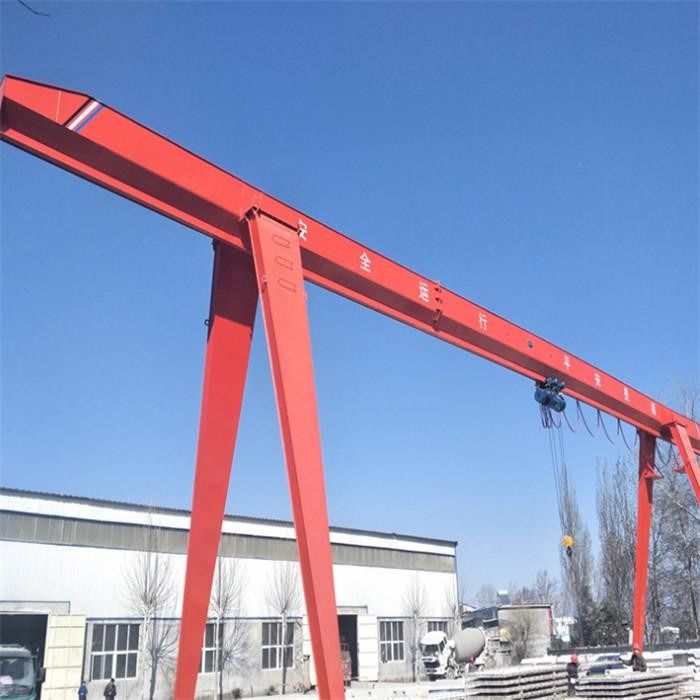

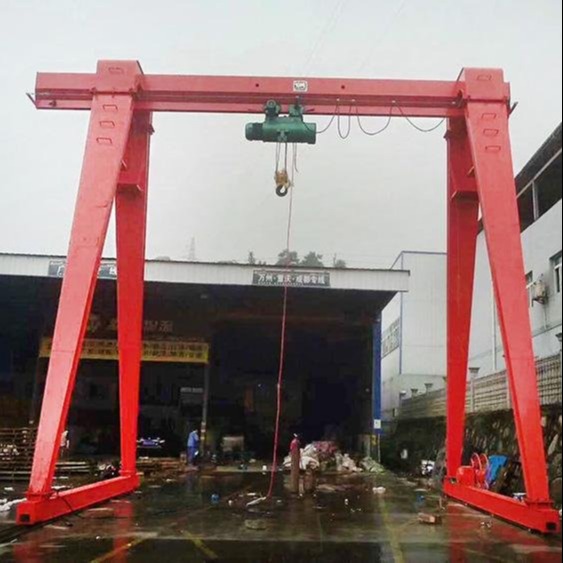

Product presentation of Single girder gantry crane



Electric single-beam gantry crane (hereinafter referred to as the crane) is used in conjunction with CD1·MD1 and other forms of electric hoist, becomes a light and small crane running on a rail, its applicable lifting weight is 1 -- 16 tons, applicable span is 7.5 -- 25.5 meters, working environment temperature in the range of -30 -- +40℃.


For the convenience of users, there are two modes of operation: ground control and cab control. The cab control is divided into two modes: end door opening and side door opening for users to choose.




Technical parameters of Single girder gantry crane





Lifting capacity T 3 5 10 16 20
Operation type   Handle/remote control/cab
Speed Hoist lifting m/min 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
  Hoist travelling m/min 20 20 20 20 20
  Crane travelling   20 20 20 20 20
      30,40 30,40 30,40 30,40 30,40
Motor Hoist lifting Type /kw ZD41-4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
  Hoist travelling   ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
  Trolley travelling   ZDY21-4/0.8×2 YZR132M1-6/2.2×2 YZR160M1-6/6.3×2 YZR160M1-6/6.3×2 YZR160M1-6/6.3×2
      ZDY21-4/1.5×2 YZR132M2-6/3.7×2   YZR160M2-6/8.5×2 YZR160M2-6/8.5×2
      ZDR22-4/1.5×2 YZR132M2-6/3.7×2 YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 YZR160M2-6/8.5×2
      ZDR24-4/2.2×2 YZR160M1-6/5.5×2   YZR160L2-6/11×2 YZR160L2-6/11×2
Electric hoist Type CD1/MD1 CD1/MD1 CD1/MD1 HC/HM HC/HM
Lifting height m 6,9,12
Work classifications   A3,A4
Power   380V 50HZ 3phase AC or according to customers' demand





Structural features of Single girder gantry crane


This product is a general purpose crane, mainly used in machinery manufacturing, assembly, warehouse and other places. Its structural features are as follows:


1. Metal structure part


For the convenience of storage and transportation, the main beams are connected together with M20 bolts (no.45 steel).


2. Electric hoist


Electric hoist can lift heavy objects and move longitudinally along the main beam. See related electric hoist instructions for its structural characteristics.


3. Operation mechanism


This product is respectively driven form, drive, braking by conical brake motor to complete, transmission is the use of "open and close" type gear transmission, its closed gear part is borrowing 5 tons of conical hoist car reducer.


4. Electrical equipment


This product is used to run a single speed motor conical squirrel cage motor (for 30 m/min running speed and 45 m/min) and cone winding motor (for speed 75 m/min) are two kinds of forms, different forms of manipulation, there are two kinds of electric hoist, electric control mode and the whole crane are equipped with safety devices, such as the ceiling position switch, limit switch, etc.



Soft Starting Stopping 8m Height 8T Building Gantry Crane 0



Company Introduction

Henan Silence Industry Co., Ltd focuses on lifting resolutions for customers. We provide design, production, and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, etc.

Under principle Customer First, Modern Crane people always provide customers with first-class products and excellent service. SILENCE CRANE people follow a strict QUALITY CONTROL system which ensures the perfection of each lifting equipment.

Our products have completely passed ISO9001, CE, GS and other quality system certificates. Thanks to our high-quality products and outstanding customer service.

SILENCE CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia and the other 30 countries.

With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.





Packing and shipping



Soft Starting Stopping 8m Height 8T Building Gantry Crane 1
