50T Span 30m Lifting Height 16m Double Girder Overhead Crane

Minimum Order Quantity : 1 set Price : USD150000-500000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD

Detail Information

Span: 30m After-sales Service Provided: Field Installation,Free Spare Parts
Condition: New Warranty: 12 Months
Max. Lifting Load: 500 Ton Application: Indoor
High Light:

Height 16m Double Girder Overhead Crane

,

Span 30m Double Girder Overhead Crane

,

Height 16m electric overhead crane

Product Description

50T Double Girder High Working Efficiency Overhead Crane Span 30m Lifting Height 16m



The product description of double girder overhead crane



As one of the overhead crane families, QD motor EOT heavy duty industrial bridge crane is the most widely used handling machinery currently.



Characterized by reasonable structure, easy to operation and low maintenance, this kind of crane is widely used in plant, warehouse and workshop for material lifting and moving.



Working duty ranges from A5-A7 which meets different requirement of clients.



Technical parameters of double girder overhead crane



Mechanism Item Unit Result
Item
Lifting capacity ton 5-350
Lifting height m 1-20
Span m 10.5-31.5
Working environment temperture °C -25~40
Speed Hoisting Main m/min 0.84-9.5
Aux. 5.22-12.6
crab 5.8-38.4
trolley 17.7-78
Working system   A5-A6



Features of double girder overhead crane


1). Long Life Span: 30-50years;



2). Easy for Installation and maintenance;



3). Reasonable structure and strong rigidity;



4). The speed can be frequency inverter speed control;



5). Control method is cabin control or remote control;



6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;



7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

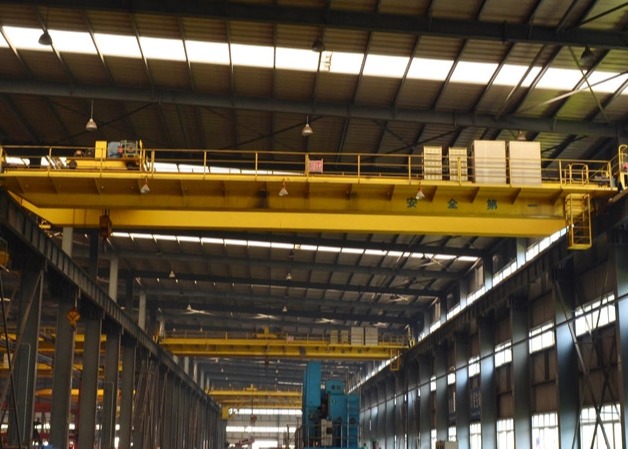

50T Span 30m Lifting Height 16m Double Girder Overhead Crane 0



Details of double girder overhead crane



Main Body:



Double girder, welded box beams, the camber line is according to national standard;



High safety, high steel degree;



Adopts high quality carbon steel, Q235B or Q345B;



The main weld is by submerged arc welding automatic welding, nondestructive flaw detection;



The end truck adopts 10.9 high strength bolt connection;



The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable;



End beam equipped with buffer block, orbital cleaning device.



It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.



No asbestos brake pad and brake block insert use card outfit, safe and reliable;



The speed reducer use hard-toothed surface reducer, compact structure, durable;



Trolley travelling use seperate drive;



Have high loading ability, long service life moving stable;



Equipped with the derailment prevention board;



Used for Angle round box, equipped with buffer device;



Modular design, meet customer needs.



Trolley Parts:



It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.



No asbestos brake pad and brake block insert use card outfit, safe and reliable;



The speed reducer use hard-toothed surface reducer, compact structure, durable;



Trolley travelling use seperate drive;



Have high loading ability, long service life moving stable;



Equipped with the derailment prevention board;



Used for Angle round box, equipped with buffer device;



Modular design, meet customer needs.





The packing and shipping:

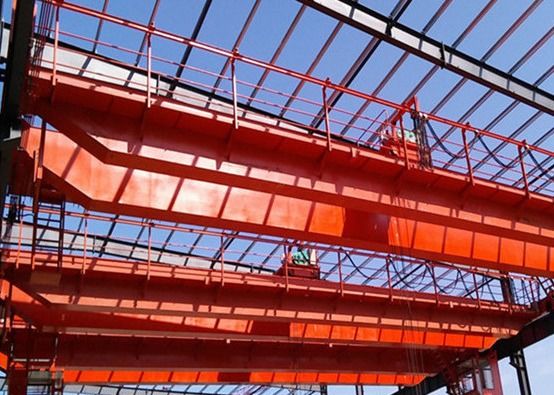

50T Span 30m Lifting Height 16m Double Girder Overhead Crane 1

50T Span 30m Lifting Height 16m Double Girder Overhead Crane 2
