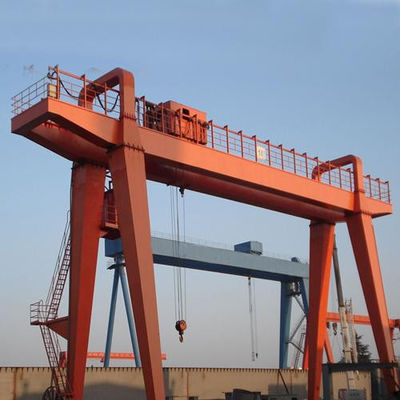

Warehouse Hydraulic 150T 40m/Min Double Girder Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Trolley Running Speed: 20-40m/min Warranty: 24 Months
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Free Spare Parts
Application: Warehouse,workshop Product Name: Double Girder Gantry Crane
High Light:

150T Double Girder Gantry Crane

,

40m/Min Double Girder Gantry Crane

,

Warehouse Hydraulic Gantry Crane

Product Description

MG Type Outdoor Use China Warehouse 150 Ton Civil Engineering Gantry Crane





Product introduction


Gantry crane (also known as gantry crane) is a gantry crane supported on the ground track by two legs.In the structure by the door frame, the cart running mechanism, crane trolley and electrical parts, etc.



Some gantry cranes have support legs only on one side, and the other side is supported to run on the plant or trestle, called half gantry cranes.



The gantry frame of gantry crane (including main beam and end beam), supporting leg, lower beam and other parts.



In order to extend the crane operation range, the main beam can extend beyond the legs on one or both sides to form a cantilever.



Crane trolley with boom can also be used to extend the crane operating range through the pitching and rotation of boom.





Main Features of gantry Crane:



1) Reasonable structure



2) Favorable performance



3) Smooth starting and stopping



4) Safe and reliable traveling



5) Low noise, commodious cabin and good view



6) Convenient maintenance, excellent exchangeability for parts and components



7) Saves electricity specifications



Safety device:


Overload protection,


Main lifting motor with thermal protection,


Hooks with latch,


Rubber buffers


Protective earthing,


Crane switch and travel end switch,


Emergency switch can stop all movement when any dangerous happened,


Sub-assemblies characteristic are tested before assembly.


All cranes must be preassembled and tested before leaving factory and offer the certification of test.



Warehouse Hydraulic 150T 40m/Min Double Girder Gantry Crane 0Warehouse Hydraulic 150T 40m/Min Double Girder Gantry Crane 1



Technical parameters



Warehouse Hydraulic 150T 40m/Min Double Girder Gantry Crane 2


Configuration:


1. Double girder gantry crane consists of four main parts: the bridge structure, the trolley traveling mechanism, crane traveling mechanism and the electric equipment.


2. The girders and frame are welded structure without weld joint and high degree of vertical and horizontal rigidity.


3. The lifting mechanism is electric trolley, it can equip with hook and other tools such as grab and spreader.



Some rail, gear, wheel relevant parts with good quality manufactured by our own group, the quality is easily been controlled.


4 .The main electric parts are Siemens and Schneider brand. The motor is heavy duty slide ring type,



Chint brand or some other brand top quality in China. The buffer adopts polyurethane material and the brake is electric hydraulic type.



Capacity T Oct-50 75/20 100/20
Span m 7.5~31.5
Lifting height Main hook m 12 20 22
Aux.hook m 16 22 22
Operation method   Pendent control,wireless control,cabin control
Speed Lifting Main hook m/min 5.9 5.5 3.53
Aux.hook m/min 13.2 9.23 7.2
Cross travel m/min 38.5 38.4 33.86
Long travel m/min 74.6 65 65.6
Lifting mechanism type electric winch cart
Working duty   A5,A6,A7
Power supply AC 220/380/400/415/460V,50/60Hz, 3P


The parameters in the picture are for reference only and can be customized according to the customer's requirements.



Production process



Warehouse Hydraulic 150T 40m/Min Double Girder Gantry Crane 3
