Scrap Motorized 150T Silence Double Girder Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Crane Feature: High Efficiency Warranty: 24 Months
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,Online Support,Free Spare Parts
Main Electrical Parts: Schneider,Chint Color: According To Your Demand
High Light:

Silence Double Girder Gantry Crane

,

150T Double Girder Gantry Crane

,

Scrap Motorized Gantry Crane

Product Description

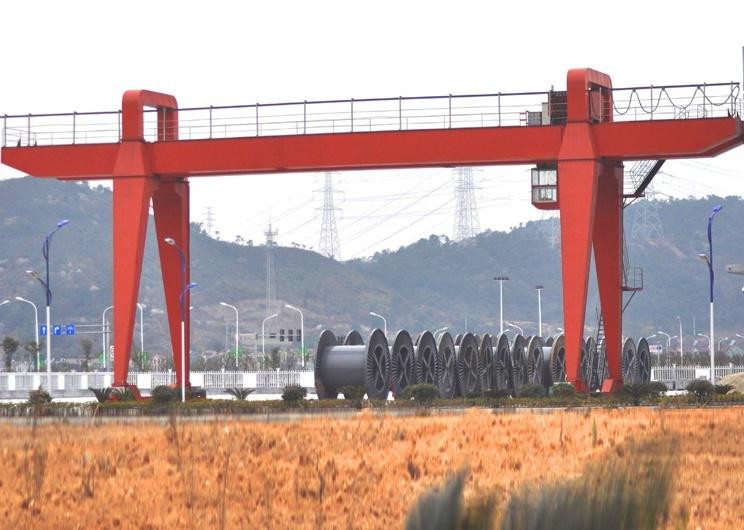

150 Ton Silence CRANE Industrial A Shape Double Girder Trolley Lift Gantry Crane For Scrap





Product introduction



1. High Quality Double Girder Goliath Gantry Crane widely used together with winch or trolley for lifting device.


2. It is a medium and heavy size crane which travels in track.


3. Its proper lifting weight is 5 to 160 tons,and proper span is 18 to 35 meters.


4. Its proper working temperature is -20--+40 centigrade.


5 .High Quality Double Girder Goliath Gantry Crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.


6. High Quality Double Girder Goliath Gantry Crane is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.


7. Power is supplied by cable or slide wire.


8. High Quality Double Girder Goliath Gantry Crane prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.





Crane parts details



Strong Main Beams


Q235B Mn carbon structural steel with seamless once forming technology more strong and elegant.



Strong box type with standard deflection



End Beam


Modular end carriage, direct driving


Compacted size, high efficiency


Flexible joint, smoothly running



Wheel


Intermedium quenching by top technique machinery


42CrMo alloy forged wheel


high strength



Lifting Trolley


* Work duty:M6


* Low height, light weight, saving construction costs


* Smart driving, higher efficiency


* Stepless control


* IP55 / H Insulation


* Centralized lubrication



Motors On Trolley


* Three-in-one type


* Stepless travelling


* Squirrel-cage, Synchronous


* Speed 4800rpm


* Class IP55 protection


Electromagnetic Disc Brake



Hook



DIN 34CrMo4 hook, Class T



Scrap Motorized 150T Silence Double Girder Gantry Crane 0

Technical parameters



SI Descriptions Reference Data
1 Lift capacity 3 ton ~300 tons
2 Span 3 meters ~ 35 meters
3 Lift height 6 meters ~18meters
4 Work duty A5~A7
5 Control method Remote control or Cabin control
6 Electrical parts CHINT or International brand
7 Motor Chinese famous brand or International brand
8 Paints Chinese famous brand "Lehua"
9 Bearings Chinese famous brand "HRB"
10 Lift speed 0~10M/Min
11 Cross travel speed 20~30M/Min
12 Long travel speed 30~40M/Min





Main Features



1. Low noise, commodious cabin and good view.


2. Safe and reliable traveling.


3. Reasonable structure.


5. Smooth starting and stopping.


6. Saves electricity specifications.


7. Convenient maintenance.


8. Excellent exchangeability for parts.


9. Overload limiter, Limit switch (lifting and traveling), Interlock protection device,


Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision


device, Main isolating switch, Emergency stop system, Motor overload protection,and so on.



Manufacturing shop

Scrap Motorized 150T Silence Double Girder Gantry Crane 1
