3000KN Double Beam Grab Bucket Garbage Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 40 days Payment Terms : L/C, T/T
Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Control Method: Remote Control,Pendent Button,cabin Control Lifting Mechanism: Heavy Duty Cart
Condition: New Feature: Gantry Crane、Grab Crane
Rated Lifting Moment: 50KN~3000KN Product Name: Double Girder Grab Gantry Crane
High Light:

Grab Bucket Garbage Gantry Crane

,

Double Beam Garbage Gantry Crane

,

3000KN Double Girder Gantry Crane

Product Description

Factory 100 Ton Double Beam Girder Rail Track Grab Bucket Garbage Gantry Crane





Product introduction



100 ton double beam girder rail track grab bucket garbage gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system.



The gantry is box-shape structure, the track is at the side of each girder and the leg is divided into type A and type U according to user’s requirements.



The control method could be ground control, remote control, cabin control or both, in the cab there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air condition, acoustic alarm and inter phone which can be furnished as required by users.



This double girder gantry crane is beautiful design and durable and widely used in open-air warehouse, of course, also can be used indoors, but please let us know the condition in your workshop, just tell us your demands, we can design the most suitable crane for you.



Product advantage



1.Double box beam with steel legs moving through the ground beam as crane travelling system



2.The camber of main beam will be designed as Span*1-1.4/1000.



3.Steel Material: Q235 or Q345



4.Shot-blasting Sa2.5 for main girder and supporting beam



5.Epoxy zinc rich high quality painting.



6.Electrification and outfitting



7.Brand: CHINT Schneider



8.Conductor power supply: Cable Reel or bus bar.



9.Frequency conversion, double speed, single speed, and all hoist and crane movements are independent and can be run simultaneously different design due to meet crane applications



10.Whole layout provides good protection against special working environment. Such as gas workshop, plants, warehouses etc.

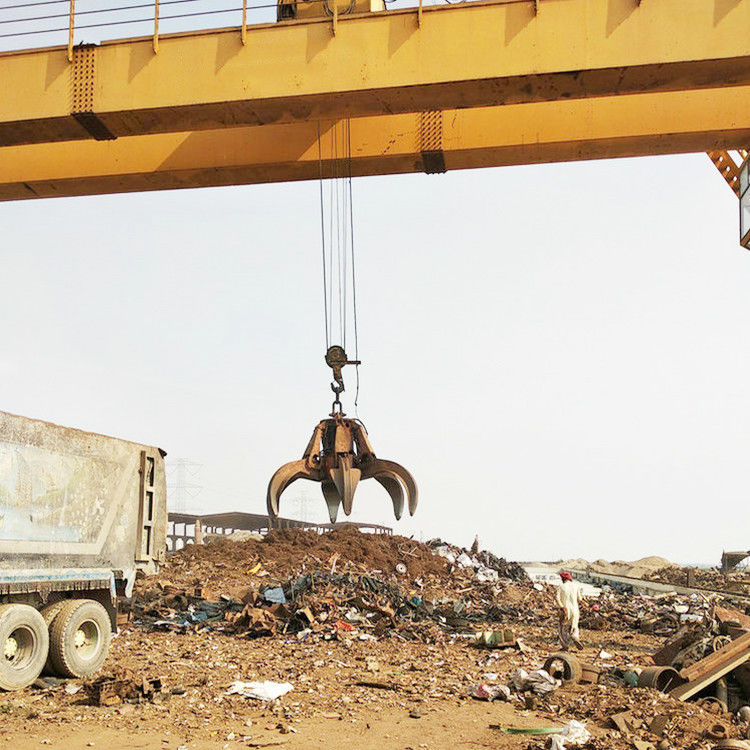

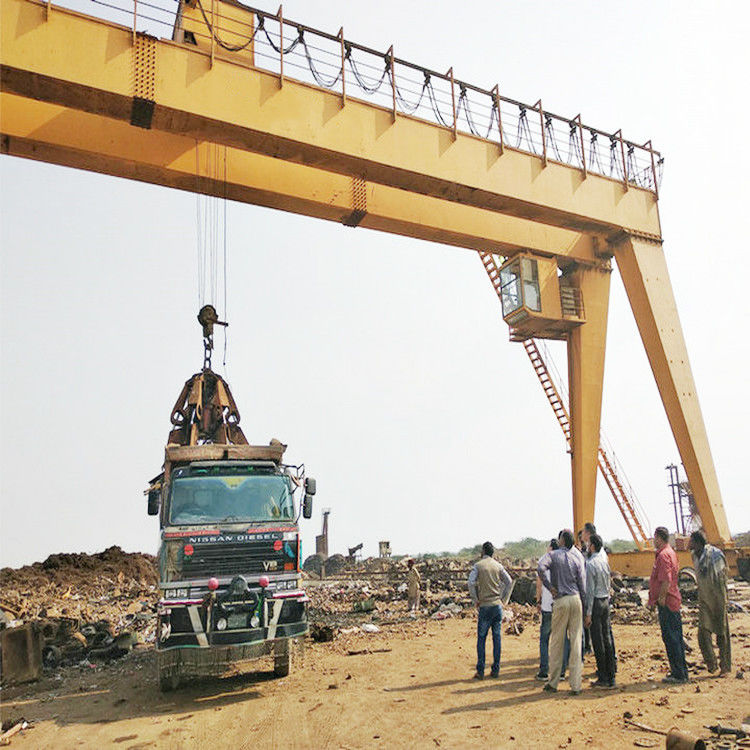

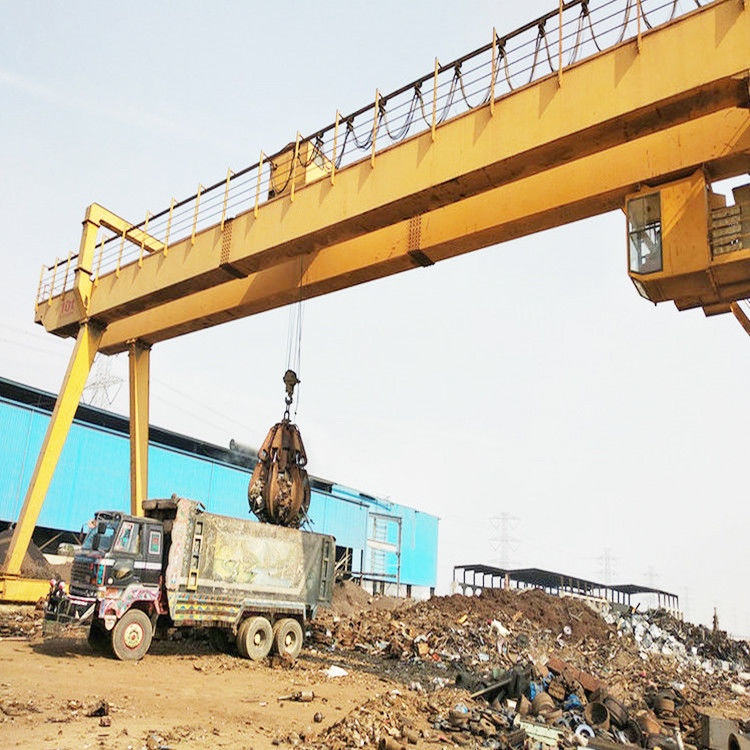

3000KN Double Beam Grab Bucket Garbage Gantry Crane 0



Technical parameters



Rated load t 100 130
(Under Spreader)
Span   20 22 24 20 22 24
lifting height m 9800+30000 9800+30000
work duty A4
  Main   0.37-3.7-6 0.37-3.7-6
speed Crab traveling M/MIN 2.5-25 2.5-25
  Trolley traveling   1.4-14 1.4-14
Max wheel load KN 295 230 241 234 239 247
total power KW 145 145


The parameters in the picture are for reference only and can be customized according to the customer's requirements.







FAQ

1.How can I get a precise crane offer?



A.To providing you a precise crane offer efficiently, please kindly provide details as flowing:



a).Lifting capacity,. material weight(unit as tonnage)



b).Lifting height; (unit as meter)



c).Crane span, the width of inquired crane(unit as meter)



d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided



e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution



2.Can I get your crane products with customized personalized service?



A.Yes, Silence cranes promise customized personalized products are available for our clients all the time.



Just freely let us know your special demands about the products, our engineering team will work on that.



3.What should I do if l'm not able to install the crane after buying?



A.Freely contact us.



Our engineering team available for oversea service with crane installation, inspection and commissioning.

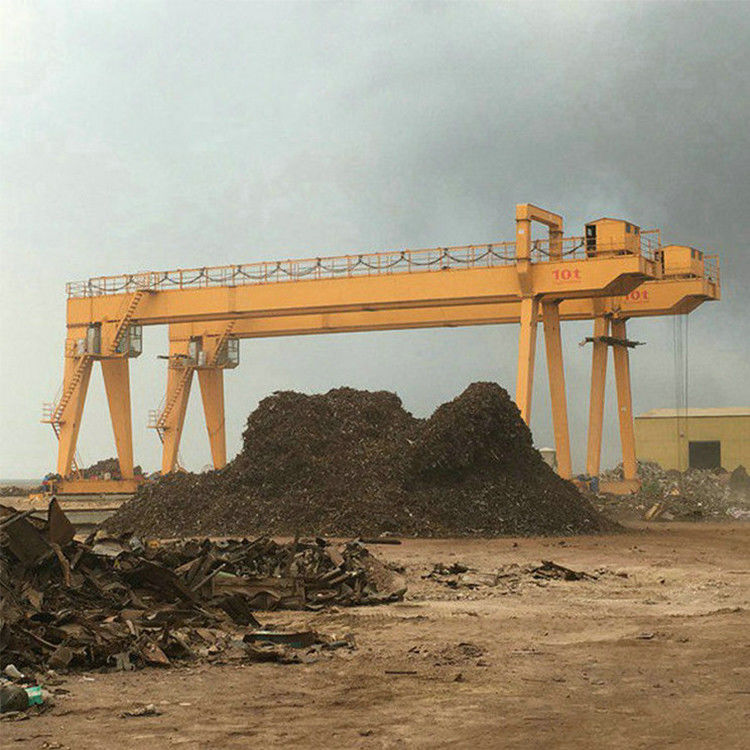

3000KN Double Beam Grab Bucket Garbage Gantry Crane 1
