Alloy Steel Hook 20 Ton Electric Hoist Customized Color For Molten Metal

Minimum Order Quantity : 1 SET Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 7-15 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 set/per month
Place of Origin: CHINA Brand Name: SILENCE
Certification: ISO CE Model Number: HY

Detail Information

Condition: New Color: Yellow,Red,Customised
Power Source: 3 Phase 380V 50Hz Or Other Standards Voltage: Single Phase Or Three Phase Can Be Customized
Hook: Alloy Steel Lifting Height: 6/9/12/15/18m
High Light:

electric lifting hoist

,

electric cable hoist

Product Description

Silence Brand 20Ton Metallurgical Wire Rope Electric Hoist For Molten Metal





Metallurgical wire rope electric hoist is a metallurgy crane equipment mainly used for lifting molten metal Metallurgy electric hoist is a perfect light-duty metallurgy hoisting equipment that can be used together with LDY type metallurgy single girder crane an can be installed under workshop fixed suspending rail to use individually. wire rope electric hoist is applicable in the temperature of 25C~+40C, Humidity≤85%, Altitude below 1000m, Power is 3phase 380v 50Hz(also can be customized according to customer's requirements)

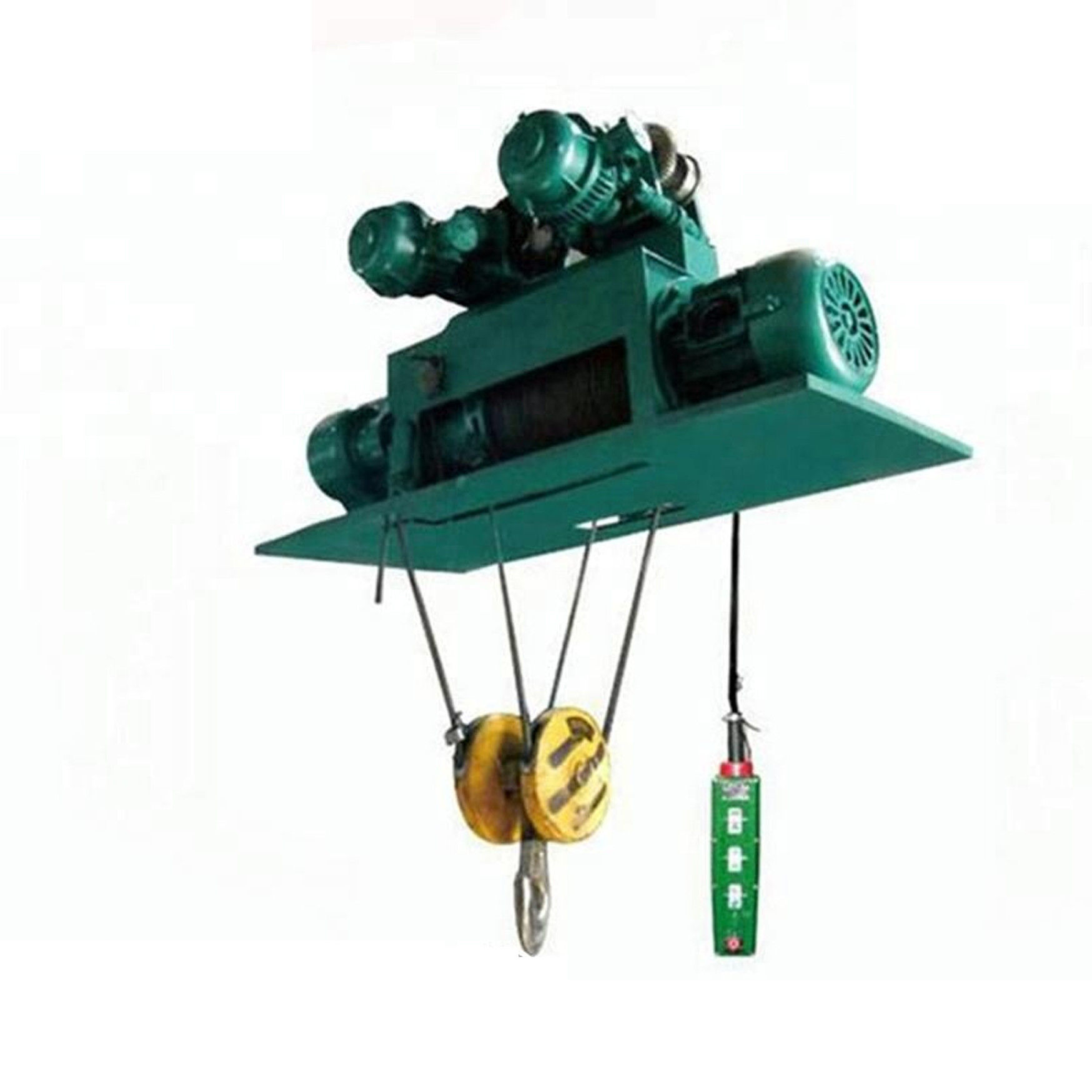

Alloy Steel Hook 20 Ton Electric Hoist Customized Color For Molten Metal 0

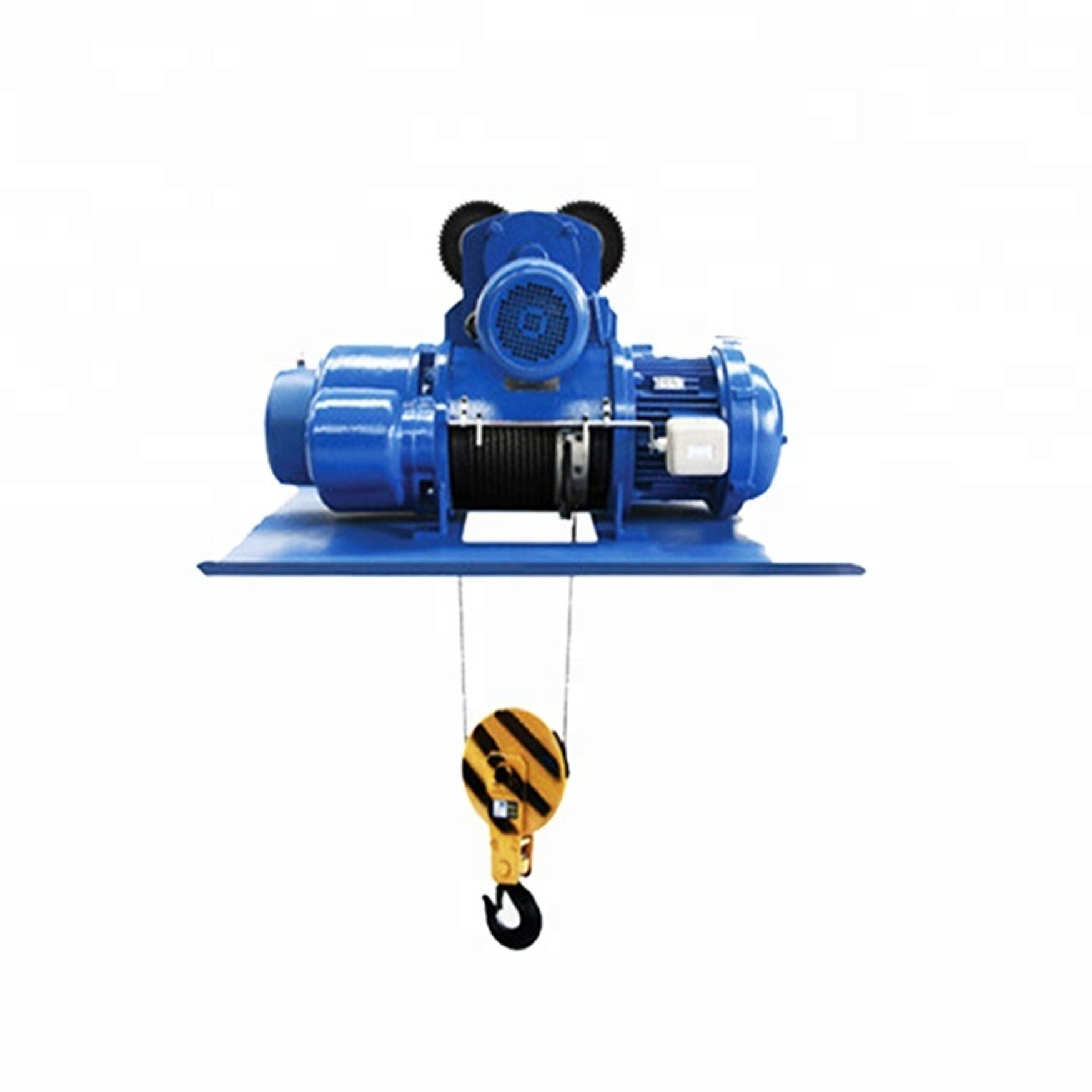

Alloy Steel Hook 20 Ton Electric Hoist Customized Color For Molten Metal 1

Advantages of Single Speed Electric Wire Rope Hoist

Compact structure, light weight

■ High safety and reliability

■ Large lifting capacity and wide application

■ High efficiency and long work life

■ Easy operation and stable lifting

Interchangeable components and easy maintenance

Features of Single Speed Electric Wire Rope Hoist

Lifting motor

■ Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist

■ Large toque, stable operation, compact structure, small size, ling weight

■ Effective braking, safe operation, easy maintenance

■ High safety with the B or F class insulation, IP44, IP54 protection

Travelling motor

Electric wire rope hoist travelling motor has the features of stable starting, effective braking, full coverage of class B or F insulation, IP44, IP54 protection, IC0141 self-cooling and so on.

Lifting reducer

■ High quality three-level dead axle helical gear rotating body ensures long serving life

■ Gear and axle is made of high intensity alloy steel which had been treated with heat

■ Box and cover are made from superior cast iron

■ Lifting reducer has great speed ration and high accuracy

■ Lifting reducer has compact structure, and is quiet during operation with high working efficiency.

■ It is easy to assemble and disassemble

Rope drum

■ Weld rope drum is light in terms of dead weight

■ Coil casing is made from superior cast iron with high intensity

■ Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist

■ No disturbance between rope sockets and has long working life

■ The rope drum is high quality and is easily interchangeable

Steel wire rope

Electric wire rope hoist rope adopts GB/ T 20118-2006 (6 * 37+1) hoisting wire rope, which has the characteristics of good tensile resistance, good flexibility, good impact resistance and long working life.

Hook

Electric wire rope hoist hook is made of high quality carbon steel, high safety and can withstand triple static load. Electric wire rope gourd with spring-type strong safety lock, not loose slings.

Fire stopper

Fire stopper with adjustable mechanical memory structure, high sensitivity, with limited block to prevent hook top impact. The fire-proof plug has the advantages of high safety and durability, convenient installation and debugging, sensitive reaction and small size.

Overload limiter

■ Present the data based on your electric wire rope hoist working conditions

■ Show accurate weight value clearly

■ Modular, low power design, jam proof

■ Ensure the safe operation of electric wire rope hoist

■ Long service life of appliance components

Electrical part

■ Control cabinet is with reasonable layout and easy to be repaired

■ Protection class IP55

■ Optional main power source is equipped on electric wire rope hoist

■ Safe trolley conductor with high conductivity and small pressure drop

■ Light dead weight, easy to install

■ Collector ensure continuing power supply

Control Mode

Electric wire rope hoist has two control methods: pendant control and remote control, with simple, safe, waterproof and anti-fall features.

 Technical parameters

Model SNY 1T SNY 2T SNY 3T SNY 5T SNY 10T
Lifting Height m 6/9/12/18/24/30
Lifting Speed m/min 8 8 8 8 7
Travelling Speed m/min 20 20 20 20 20
Wire Rope Dia. mm 7.4 11 13 15.5 15.5
Structure   18*7+IWS 18*7+IWS 18*7+IWS 18*7+IWS 18*7+IWS
Work Duty M6 M6 M6 M6 M6
Lifting Model YZD 22-4 YZD 31-4 YZD 32-4 YZD 41-4 YZD 51-4
Motor Power KW 1.5 3 4.5 7.5 13
  Rotating r/min 1380 1380 1380 1380 1380
Travelling Motor Model YZD 12-4 YZD 12-4 YZD 12-4 YZD 21-4 YZD 21-4
Power KW 0.4 0.4 0.4 0.8 0.8
Rotating r/min 1380 1380 1380 1380 1380
Industrial Voltage 220V-440V 50Hz/60Hz

Application:

1, Metallurgy hoists are applied to lifting molten metal or other high-temperature solid-state items.

2, Metallurgy hoists also can be used as the lifting mechanism of single girder crane, single girder suspension crane, double girder crane, etc.

3, Metallurgical hoist is also can be installed on the fixed overhead track independently.

4, Designed according to the national standards Issued by ADSIQ, the metallurgical hoist is widely used in the small and medium-sized metallurgical workplace.

Package & Delivery

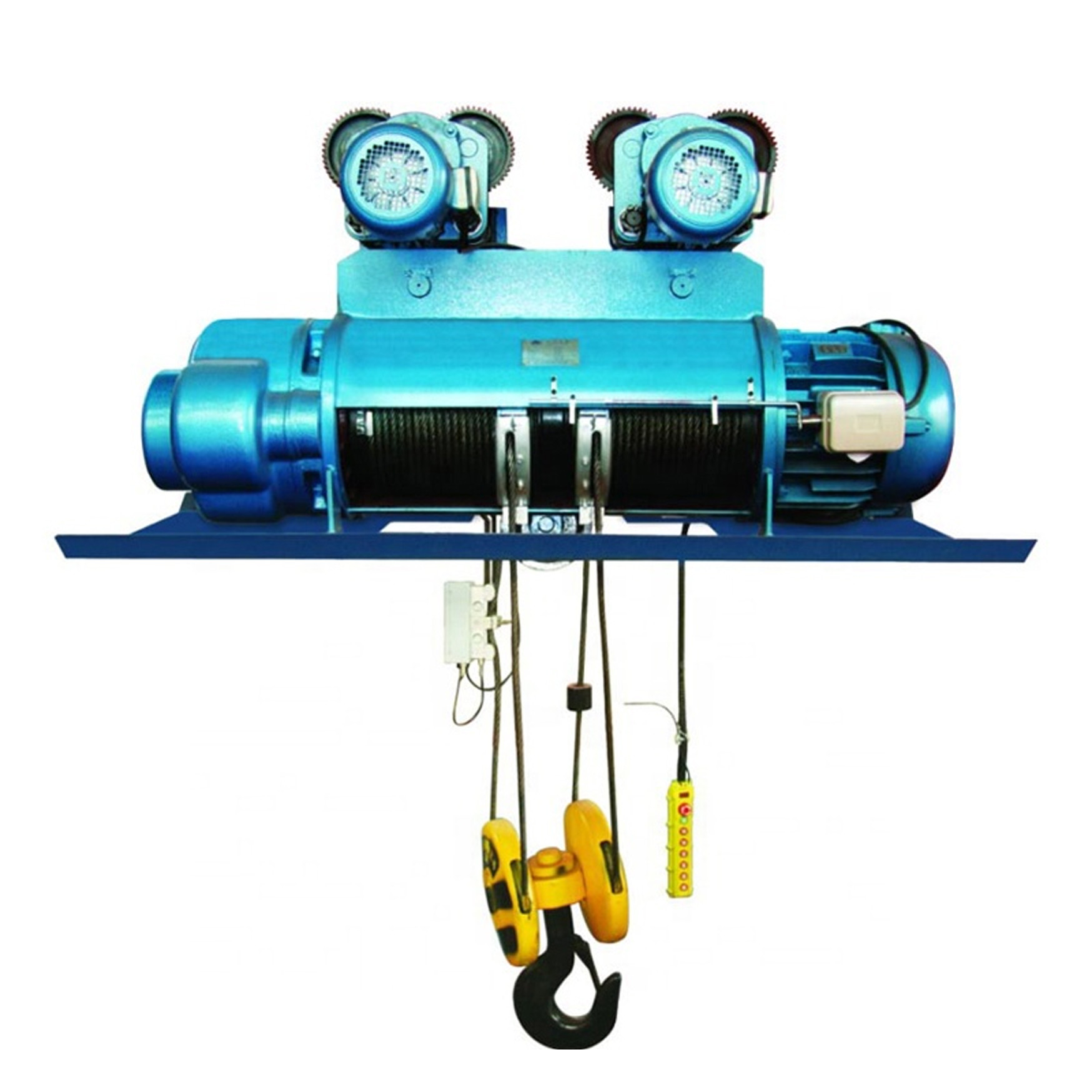

Alloy Steel Hook 20 Ton Electric Hoist Customized Color For Molten Metal 2
