Compact 20 Ton Overhead Travelling Crane Smooth Starting And Stopping

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LH QD

Detail Information

Condition: New Warranty: 2 Years
After-sales Service Provided: Free Spare Parts Certification: CE,ISO
Max. Lifting Height: 6m~30m Rated Lifting Moment: 320KN
High Light:

explosion proof overhead crane

,

electromagnetic overhead crane

Product Description

Top Running 20 ton LB Type Overhead Traveling Beam Crane Lifting Equipment

Description of single girder overhead crane

Single girder overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley, which runs along the bottom flange of the bridge girder between the end carriages.



It is widely used in industrial factories, warehouses, workshops, stock ground, workstation factories, goods yard, etc.


It looks like a bridge, because both ends of the girder are on the tall concrete column and metal support structure.


It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.



Advantage of single girder overhead crane

1). First class quality with competitive price


2). Compact design, optimal use of the size of work areas


3). Reasonable structure, favorable performance


4). Control the load easily and position the load exactly


5). Smooth starting and stopping


6). Superior safety and reliability


8). Minimum& Easy maintenance, excellent exchangeability for parts and components


9). Saves electricity specifications


10). "One-Stop-Shop" for your crane and hoist needs



Technical parameter of single girder overhead crane

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer, current overload protection, overload device, power failure protection
Application area Factory,workshop,warehouse,power station,logistic,etc.
Painting color Yellow, Red or Customized



Q&A

Q: Do you provide Crane service?
A: Yes, we will provide full range of Crane service such as choose the right crane, installation service with detail video guidance, after-sale service and maintenance.



Q: What is your warranty service?
A: We offer 1 year warranty with engineer service. You don't need to worry if any problems occurred.



Q: Can you do OEM or ODM crane?
A: Yes , both are OK. Only need to have the detail drawing for the crane.



Q: What should I provide when I want a quote?
A: Please provide below information while giving us the inquiry. The more information you provide, the more accurate solution we can prepare for you!



1). Which kinds of crane do you need? European type or Chinese type?

2). Quantity? (set)

3). Lifting capacity? (1 ton,2 ton or 20ton, etc)

4). Lifting height? lifting span (m)?

5). Working voltage? (V, HZ, Phase)

6). Crane traveling speed? 20m/min, 30m/min or 40m/min etc?

8). If any work duty requirement?

9). Any other requirements?



Q: Whatis your difference with other suppliers?

A: We are both manufacturer and trading company, Our factory has been more than 10 years crane production experience and with engineers who worked in Demag. We also have a dedicated and professional sales team to provide timely, efficient and professional service all the time.

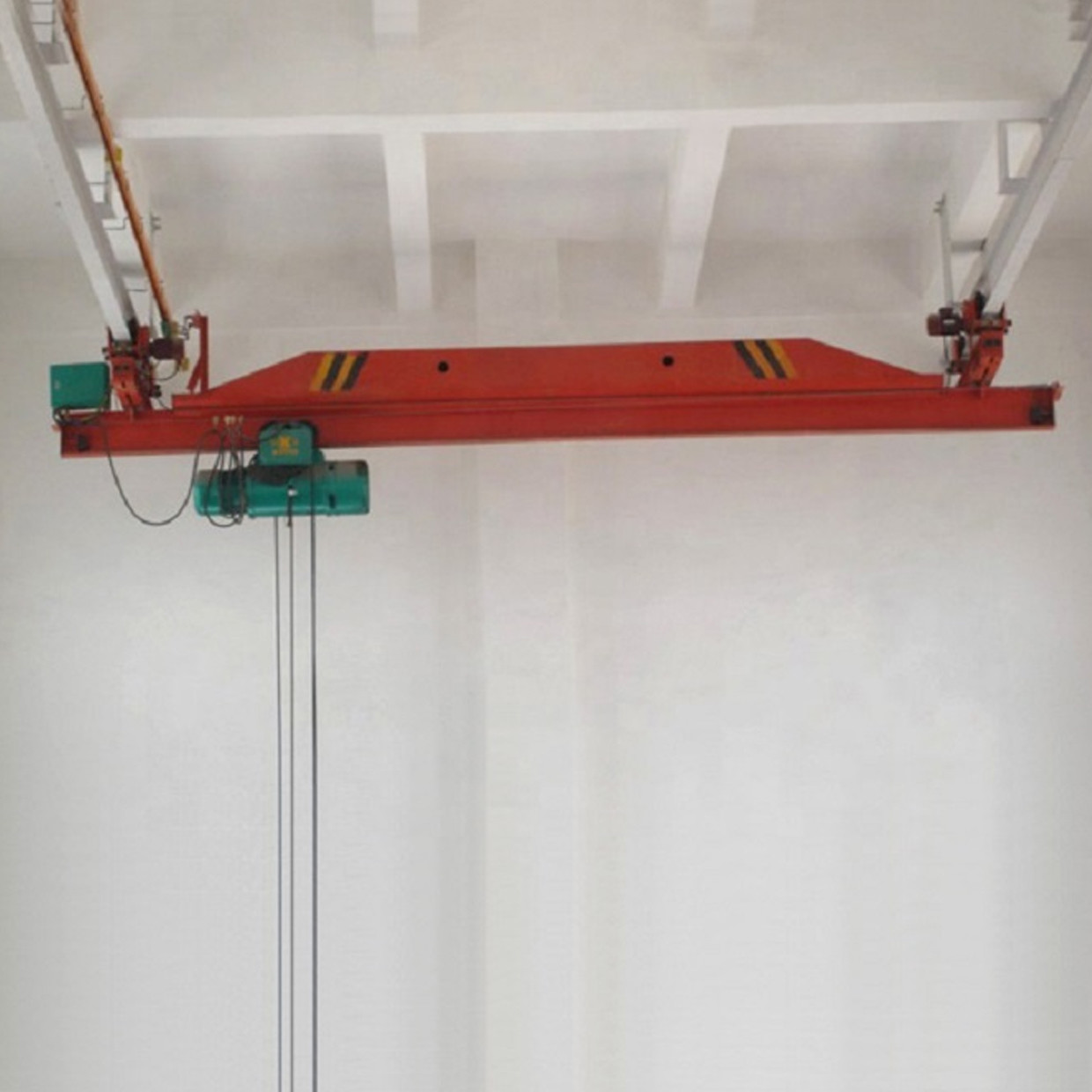

Compact 20 Ton Overhead Travelling Crane Smooth Starting And Stopping 0

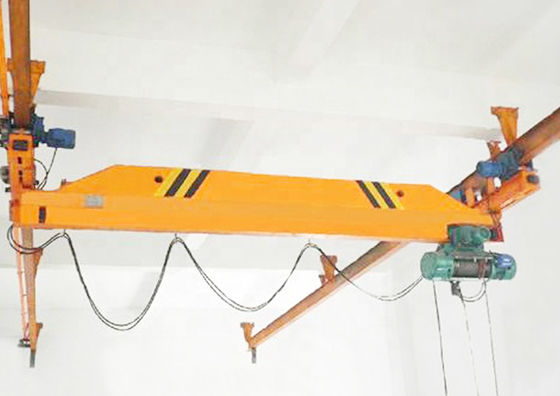

Compact 20 Ton Overhead Travelling Crane Smooth Starting And Stopping 1

Compact 20 Ton Overhead Travelling Crane Smooth Starting And Stopping 2
