Double Girder Electric Overhead Crane 10 Ton Smooth Operation Long Service Life

Product Description

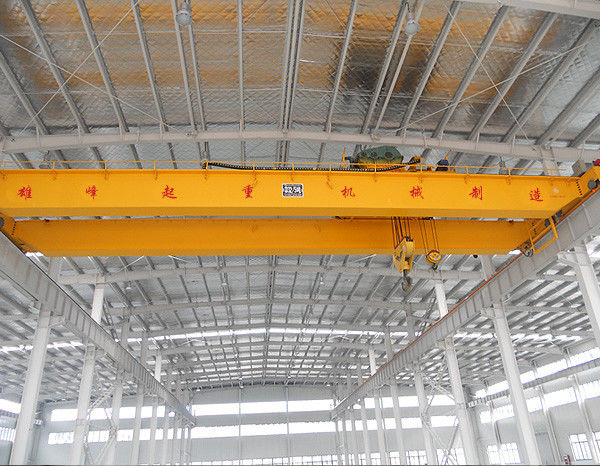

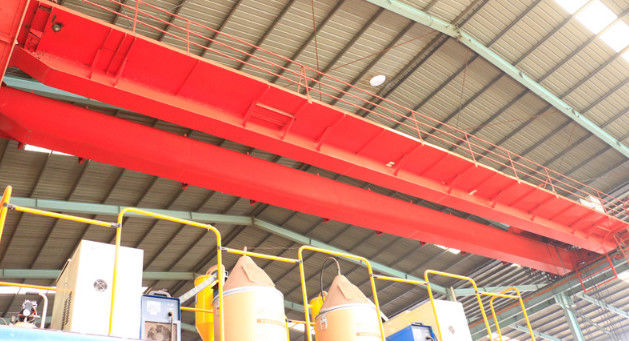

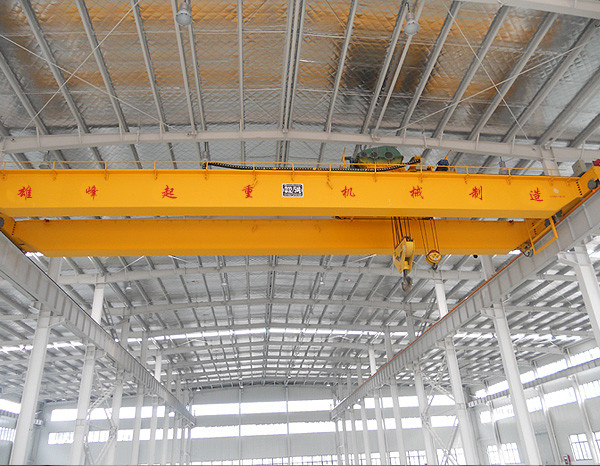

China widely promotion 10 ton electric double girder overhead crane

General description of double girder overhead crane

Two girders are simply stronger than one, making double girder traveling cranes the ideal solution for the area coverage handling of heavy loads up to 32/5t. Like all factory cranes, these units are available with a number of main girder connection versions to best suit new or existing buildings and the best in functionality, versatility and convenience. double girder cranes feature welded box beams. All the sections used for main girders and end girders are computer-optimized for high performance and low weight, benefits that pay in terms of strength and cost efficiency.

Technical parameter of double girder overhead crane

Product superiority of double girder overhead crane

1. Support customization, excellent quality guarantee price

Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful

A full-span maintenance channel is provided with thin steel plates and two layers of safety handrails along both sides of the bridge

Galvanized epoxy resin paint

Three layers of paint

2. Motor protection class IP54, F class insulation, equipped with an overload protection device.

Hongda brand, smooth operation, long service life design, is the best domestic crane motor.

Insulation class F, protection class ip54

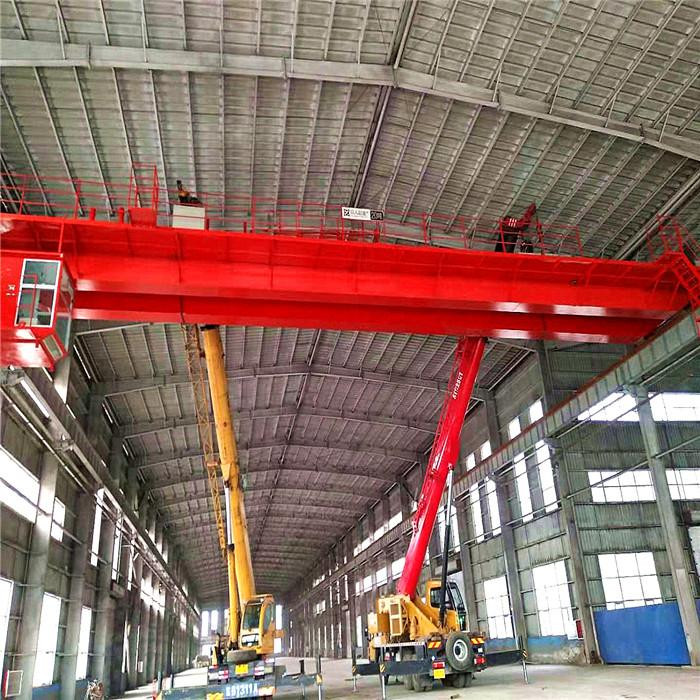

3. The crane operation control adopts CAM control, the driver cab, moves with the vehicle, more convenient and clear control cargo position.

Joystick, button, single light control; Multi-ship speed regulating resistor; Up and down. Left and right; Front and back; Start and stop; An emergency;

Air conditioning can be installed according to customer requirements

Safe and reliable

High work efficiency

Improve your work environment

4. The speed is controlled by frequency conversion, so that the cargo can move and land safely and accurately.

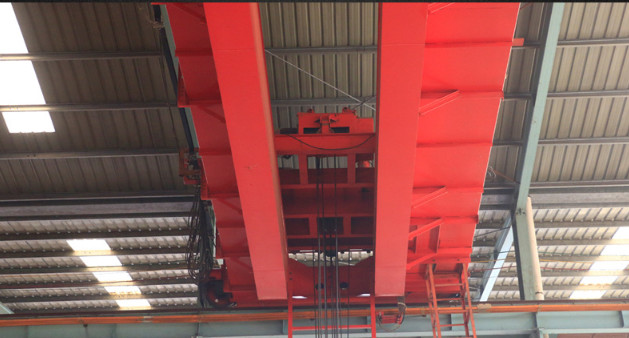

Wire rope hoisting, with trolley, reducer, drum, brake, motor, including overload limit switch

Insulation class F class

Lifelong lubrication (safe use cycle)

Product application of double girder overhead crane
QD type double girder overhead crane can be widely used in coal, building materials, storage, metallurgy, electric power, chemical industry and other industries of mechanical processing, metal structure, assembly, enterprise workshop, smelting workshop, warehouse as well as railway, port and other freight yard between the fixed span of material loading and unloading and handling.
