Product Description
3P 4P Conductor Copper Seamless Trunking Power Pipe Crane Busbar System Price
Product details
Safety seamless bus bar is an energy-saving seamless bus bar developed by referring to foreign advanced experience and combining with national conditions. The protective shell is made of engineering plastic and aluminum-plastic alloy.
The conductor is aluminum alloy (with stainless steel inside) or pure copper. It is not affected by rain, snow, and frost. It is suitable for outdoor, water fog, acid fog, conductive dust and other poor environments.
Safety sliding contact line for moving equipment power supply, consists of two parts, sliding guide rail (fixed part, into the power supply, often guide by single 4 m long/root or can be connected with the 6 m/root), collector (sliding parts, can be in sliding orbit or sliding contact with the copper bar and took in electricity, collector for connected to the mobile motor).
Product superiority
1. 99.99% Oxygen-free copper
2. No joint, continuous power supply
3. Small space, Low noise
4. Low voltage drop
5. Stable operation, fast speed, good conductivity and contact performance
6. Easy to install, replace and transport
7. Long service life
8. The minimum bend radius reaches 750mm
The material of Crane Power Supply Busbar
Conducive material: 99.99% Oxygen-free copper
Housing material: PVC (heat resistance property 70℃--40℃ below)
Technical parameters
| Type |
Poles |
Conductor Cross Section (mm2) |
Max Current (A) |
| 761003 |
3 |
3*10mm2 |
50A |
| 761503 |
3 |
3*15mm2 |
80A |
| 752003 |
3 |
3*20mm2 |
100A |
| 762503 |
3 |
3*25mm2 |
120A |
| 763503 |
3 |
3*35mm2 |
140A |
| 761004 |
4 |
4*10mm2 |
50A |
| 761504 |
4 |
3*15mm2+1*10mm2 |
80A |
| 762004 |
4 |
3*20mm2+1*10mm2 |
100A |
| 762504 |
4 |
3*25mm2+1*12.5mm2 |
120A |
| 763504 |
4 |
3*35mm2+1*15mm2 |
140A |
| 761006 |
6 |
6*10mm2 |
50A |
| 751506 |
6 |
6*15mm2 |
80A |
Notes: The foregoing attached table shall only be used for reference.
The actual application shall be appropriately modified according to customers' requirements.
Application scenarios
With advanced technology, skillful manufacture and beautiful design, the Power Supply Trolley Slide Wire is suitable for machinery works, small size steel factories, low power hoisting, cranes, monorails, electric hoists, electric tools, stacking systems and wildly used in the Lifting industry. (ambient temperature is< 55℃)
Product practical application scenarios are diversified, with a wide range of customer groups.

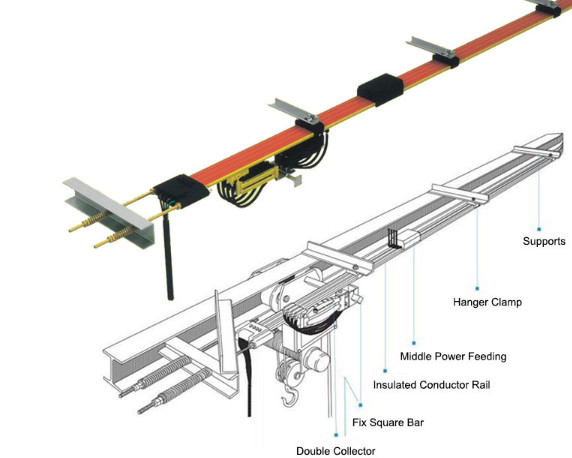

Installation diagram
There are two ways to install busbar, horizontal installation and vertical installation.
Parts
