Heavy Duty Electromagnet Lifting Car Remote Control Low Energy Consumption

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 10 work days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO

Detail Information

Contact Load: High Power Magnetic Keeper Battery: The Magnetic Plate Keep Magnetism When Power Off
Color: As Your Requirements Operation: Automatic
Shape: Circle Control Method: Remote Control
High Light:

circular lifting magnet

,

scrap lifting magnet

Product Description


Factory Heavy Duty Electromagnetic Magnet Remote Control Magnetic Mount Crane


Product presentation

Lifting electromagnetic chuck also known as lifting electromagnet, the product by computer optimization design, magnetic circuit more scientific and reasonable, air gap magnetic density, magnetic penetration depth deep.

The coil protection adopts the rolled high manganese steel plate with good abrasion resistance and strong impact resistance. Lightweight, low energy consumption, large lifting weight, long service life.

High insulation grade, insulation treatment through a unique process, improve the electrical and mechanical properties of the coil, usually using constant voltage control. Strong excitation (DC-290v /200V) can further improve the hoisting capacity. Large electromagnets can also be overexcited (DC-350v /290V/200V), speed up the current rise speed, can play a stronger lifting capacity.


Product feature

Adopt totally sealing structure with good property of moisture-proofing
Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
High-temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet

Simple and convenient installation, operation and maintenance

Benefits

Strong attraction force and energy saving
Normal & High temperature optional
Simple operation and maintenance

Matters need attention--model selection

1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.

2. When the power supply duration exceeds 60, please choose the high-frequency type.

3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.

The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.

If the user needs a diving type, please specify it when ordering.

4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.

5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.

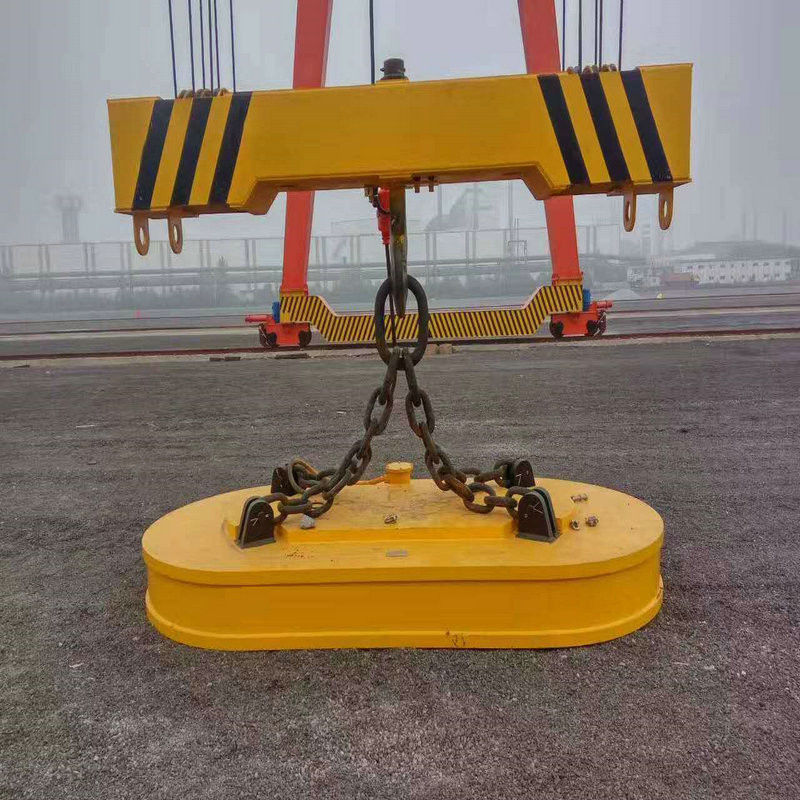

Heavy Duty Electromagnet Lifting Car Remote Control Low Energy Consumption 0

Lifting electromagnetic crane combination mode

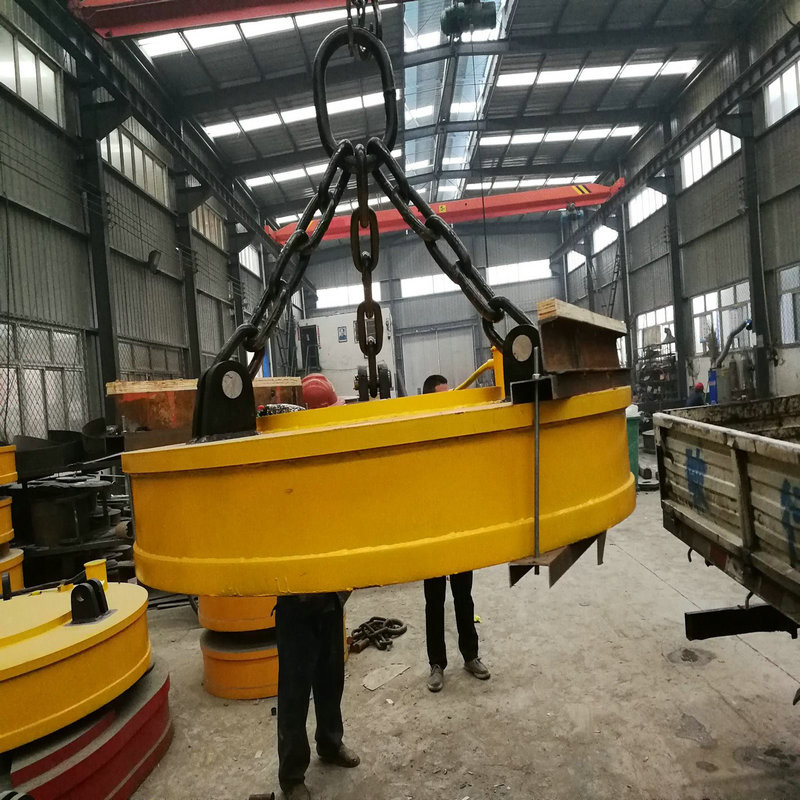

Heavy Duty Electromagnet Lifting Car Remote Control Low Energy Consumption 1

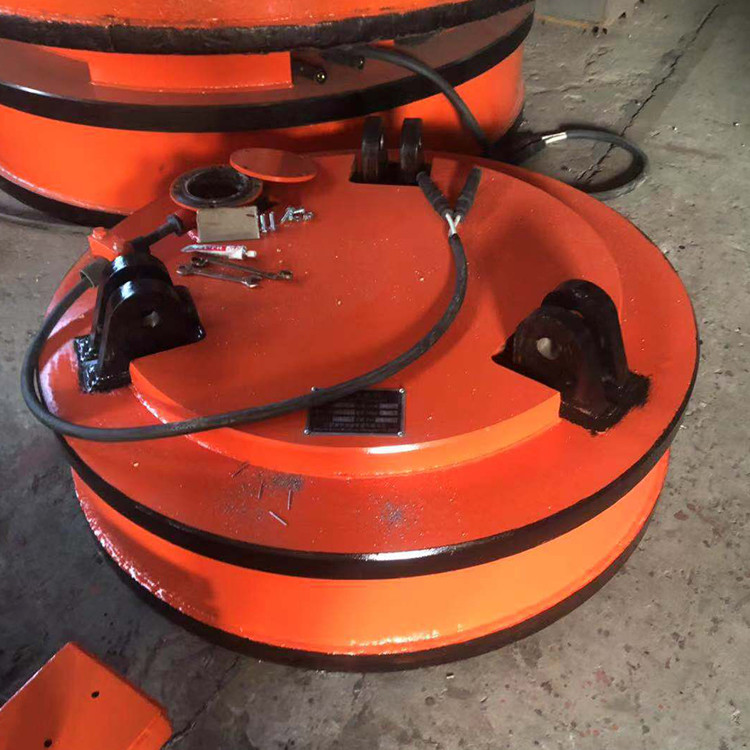

 Heavy Duty Electromagnet Lifting Car Remote Control Low Energy Consumption 2

Applications

Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap,

square billet, sheet, pipe and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants,

large foundry workshops, shipyards, heavy machinery factories, steel warehouses, port terminals and stations.
Technical parameters


ModelMW5-MW5-MW5-MW5-MW5-MW5-MW5-
Attention110L/1-75130L/1-75150L/1-75165L/1-75180L/1-75210L/1-75240L/1-75
dimensionA1100130015001650180021002400
B1270129013601670160019002020
Mass (kg)1500228031803840469075009800
Power (kw)6.1911.312.216.321.725.9
Cold-state current (A)27.740.951.455.574.198.6117.7
lifting capacity (kg)steel ball650085001100012500145002100026000
steel ingot1000/8001400/11001900/15002300/18002750/21003500/28004800/3800
steel scrap450/400700/6001100/9001300/11001600/13502200/18502850/2250
