Automatic Lifting Electromagnet , Rechargeable Electro Permanent Lifting Magnets

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 10 work days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO

Detail Information

Contact Load: High Power Magnetic Keeper Battery: The Magnetic Plate Keep Magnetism When Power Off
Condition: New Composite:: With Super Strong Neodymium Magnet
Quality: China High Quality After-sales Service: Provided Online Support
High Light:

circular lifting magnet

,

scrap lifting magnet

Product Description

Automatic Rechargeable Electro Permanent Lifting Magnet To Lifting Long Length


Product presentation

Lifting electromagnetic chuck also known as lifting electromagnet, the product by computer optimization design, magnetic circuit more scientific and reasonable, air gap magnetic density, magnetic penetration depth deep.

The coil protection adopts the rolled high manganese steel plate with good abrasion resistance and strong impact resistance. Lightweight, low energy consumption, large lifting weight, long service life.

High insulation grade, insulation treatment through a unique process, improve the electrical and mechanical properties of the coil, usually using constant voltage control. Strong excitation (DC-290v /200V) can further improve the hoisting capacity. Large electromagnets can also be overexcited (DC-350v /290V/200V), speed up the current rise speed, can play a stronger lifting capacity.


Product feature

Adopt totally sealing structure with good property of moisture-proofing


Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption


The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life


Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet


High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet

Simple and convenient installation, operation and maintenance


Matters need attention--model selection

1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.

2. When the power supply duration exceeds 60, please choose the high-frequency type.

3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.

The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.

If the user needs a diving type, please specify it when ordering.

4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.

5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.

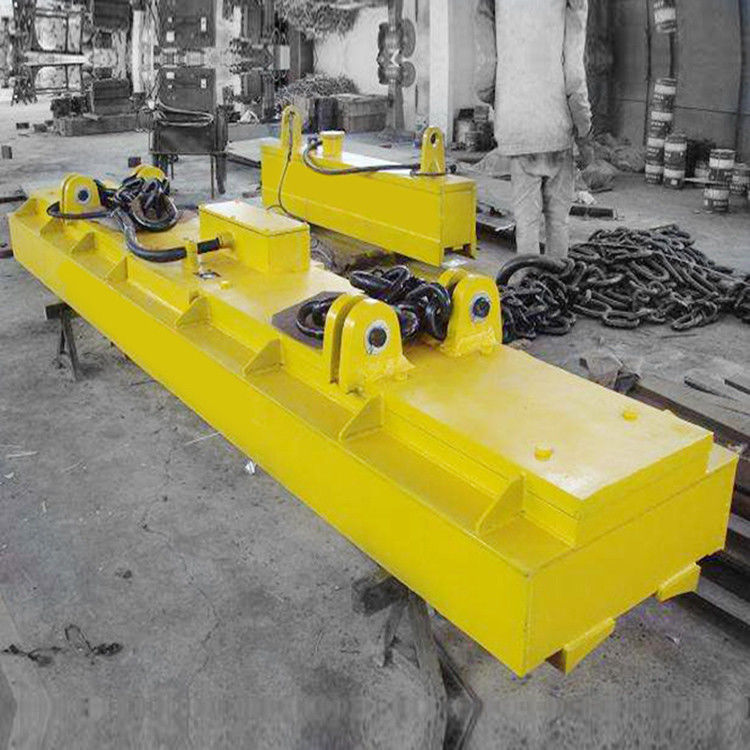

Automatic Lifting Electromagnet , Rechargeable Electro Permanent Lifting Magnets 0

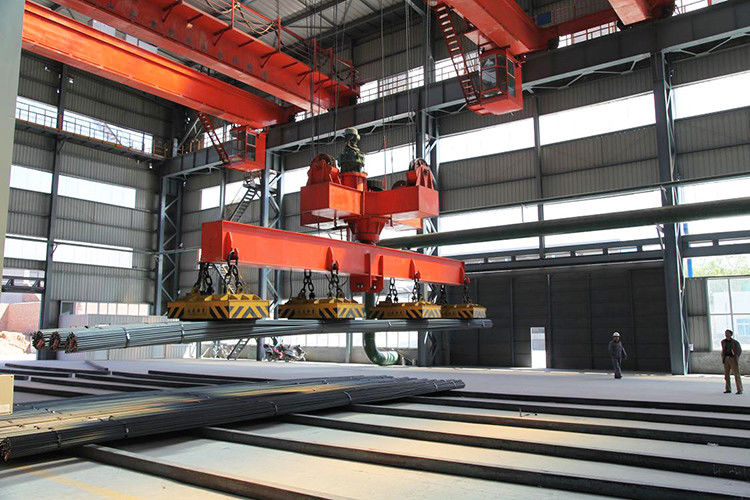

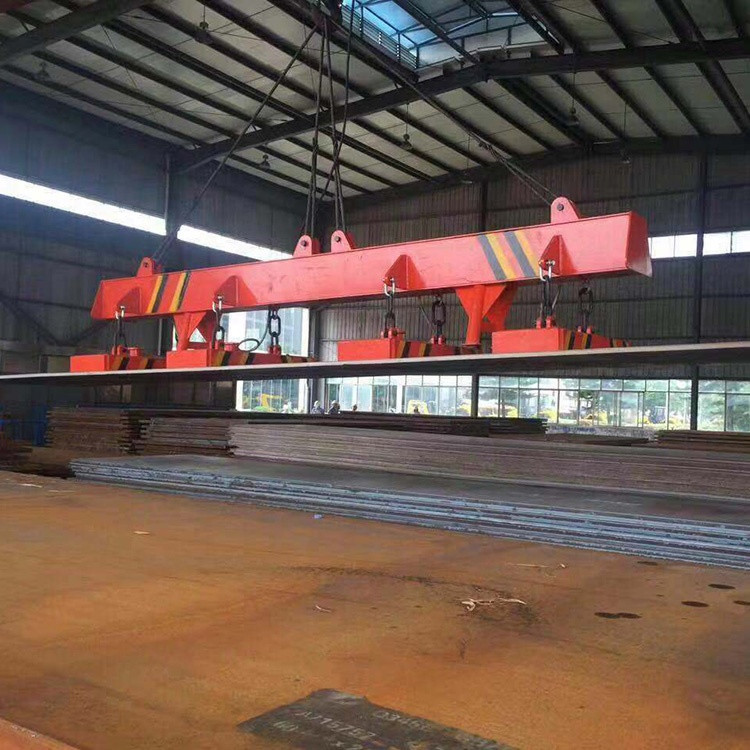

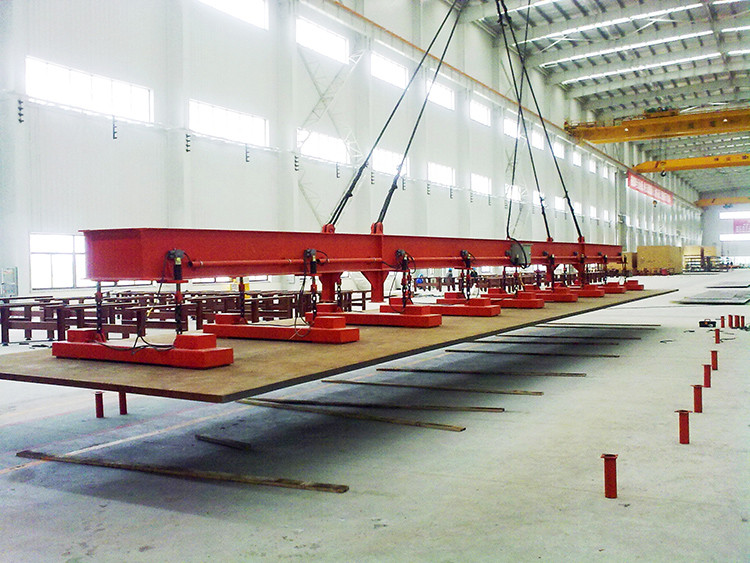

Lifting electromagnetic crane combination mode

Automatic Lifting Electromagnet , Rechargeable Electro Permanent Lifting Magnets 1
 Automatic Lifting Electromagnet , Rechargeable Electro Permanent Lifting Magnets 2
Technical parameters



Model MW5- MW5- MW5- MW5- MW5- MW5- MW5-
Attention 110L/1-75 130L/1-75 150L/1-75 165L/1-75 180L/1-75 210L/1-75 240L/1-75
dimension A 1100 1300 1500 1650 1800 2100 2400
B 1270 1290 1360 1670 1600 1900 2020
Mass (kg) 1500 2280 3180 3840 4690 7500 9800
Power (kw) 6.1 9 11.3 12.2 16.3 21.7 25.9
Cold-state current (A) 27.7 40.9 51.4 55.5 74.1 98.6 117.7
lifting capacity (kg) steel ball 6500 8500 11000 12500 14500 21000 26000
steel ingot 1000/800 1400/1100 1900/1500 2300/1800 2750/2100 3500/2800 4800/3800
steel scrap 450/400 700/600 1100/900 1300/1100 1600/1350 2200/1850 2850/2250
