100KN - 3000KN Double Girder Gantry Crane 25 Ton Mobile Outdoor Steel Coil Lifting

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Rated Loading Capacity: 10-300 Ton Crane Type: Double Girder Gantry Crane
Rated Lifting Moment: 100kn-3000kn Quality: Reliable
Overload Limiter: Have Port: Qingdao
High Light:

double beam gantry crane

,

industrial gantry crane

Product Description

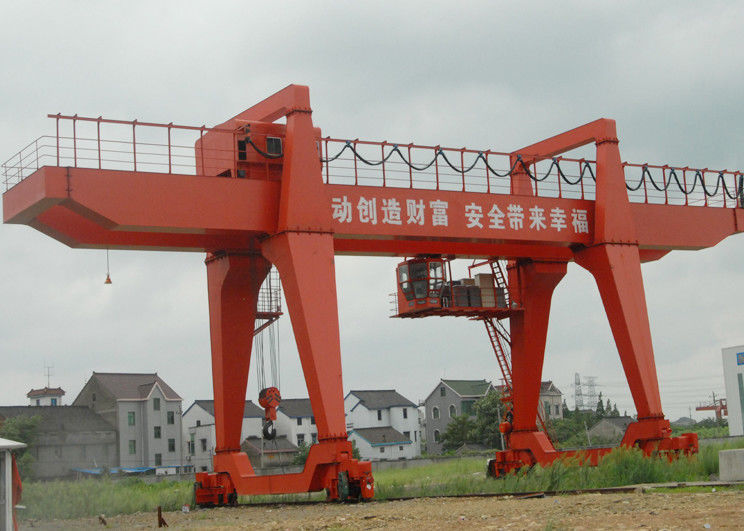

25 Ton Mobile Outdoor Steel Coil Lifting Double Girder Gantry Crane For Sale





Product introduction



CE Certificated Double Girder 25 ton gantry crane for lifting also called door crane or goliath crane, it is a kind of track traveling mid-heavy type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated.



The top main girder is mounted on two A shape columns which are further resting on wheel-mounted end carriages.



This crane is widely applied to do loading and unloading work outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.



It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.



It is composed of the beam, support legs, crane traveling mechanism, trolley, electric equipment and so on.



It could be a special design and customize by clients’ requirements.





Product superiority



1. Good sealing performance.The guide chain part is fully enclosed to ensure a clean environment for the meshing of the chain and the guide chain seat.


2. Reverse braking is adopted to improve the braking performance and extend the service life of the brake,



which can adapt to the high-temperature and high-humidity pre-treatment service environment within a certain range;


3. The brake clutch gearbox is free of maintenance for ten years, reducing maintenance frequency and maintenance cost;


4. Configuration of cylindrical asynchronous motor, large power, sufficient power margin.



High power continuity rate, suitable for frequent starting and braking conditions;


5. Faster lifting speed and higher working level, fully meeting the requirements of production tempo and production intensity;


6. Imported world-renowned brand highly wear-resistant and anti-aging round steel chain with long service life and good wear resistance;


Moreover, there are many kinds of double-beam cranes, which can also be designed according to users' requirements.



They are suitable for different occasions and convenient for users to use.

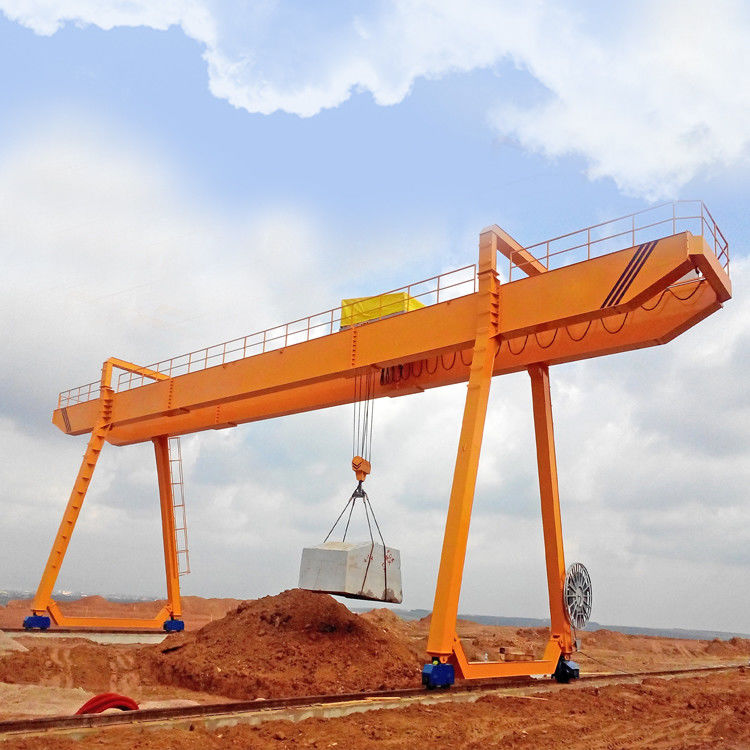

100KN - 3000KN Double Girder Gantry Crane 25 Ton Mobile Outdoor Steel Coil Lifting 0

Technical parameters



SI Descriptions Reference Data
1 Lift capacity 3 ton ~300 tons
2 Span 3 meters ~ 35 meters
3 Lift height 6 meters ~18meters
4 Work duty A5~A7
5 Control method Remote control or Cabin control
6 Electrical parts CHINT or International brand
7 Motor Chinese famous brand or International brand
8 Paints Chinese famous brand "Lehua"
9 Bearings Chinese famous brand "HRB"
10 Lift speed 0~10M/Min
11 Cross travel speed 20~30M/Min
12 Long travel speed 30~40M/Min





Company Introduction

Henan Silence Industry Co., Ltd focuses on lifting resolutions for customers. We provide design, production, and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, etc.

Under principle Customer First, Modern Crane people always provide customers with first-class products and excellent service. SILENCE CRANE people follow a strict QUALITY CONTROL system which ensures the perfection of each lifting equipment.

Our products have completely passed ISO9001, CE, GS and other quality system certificates. Thanks to our high-quality products and outstanding customer service.

SILENCE CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia and the other 30 countries.

With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.





Manufacturing shop

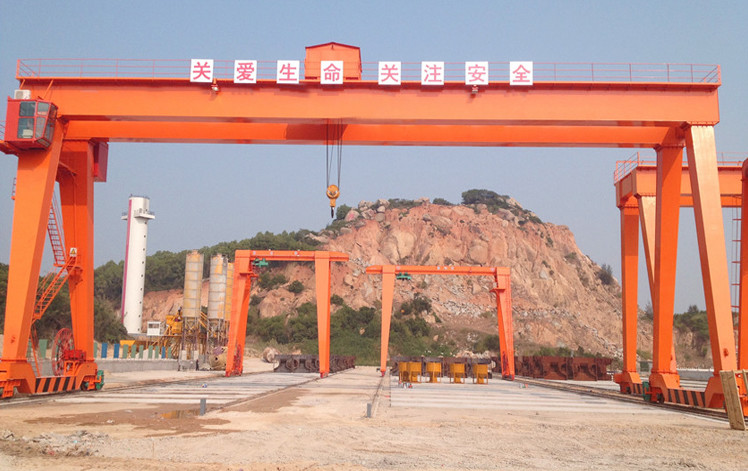

100KN - 3000KN Double Girder Gantry Crane 25 Ton Mobile Outdoor Steel Coil Lifting 1
