Light Weight Column Mounted Jib Crane Hydraulic Mobile 10 Ton Overload Protection

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 3 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Lifting Height: 3/12m Port Of Dispatch: Qingdao, Tianjin And Inland Ports
Rated Lifting Moment: 500KNm Application: Widely Used In All Kinds Of Places
Condition: New Customization: Provided
High Light:

post mounted jib crane

,

swing arm jib crane

Product Description

Light Weight Overload Protection 10 Ton Hydraulic Mobile Floor Crane Used In Industry





Product presentation

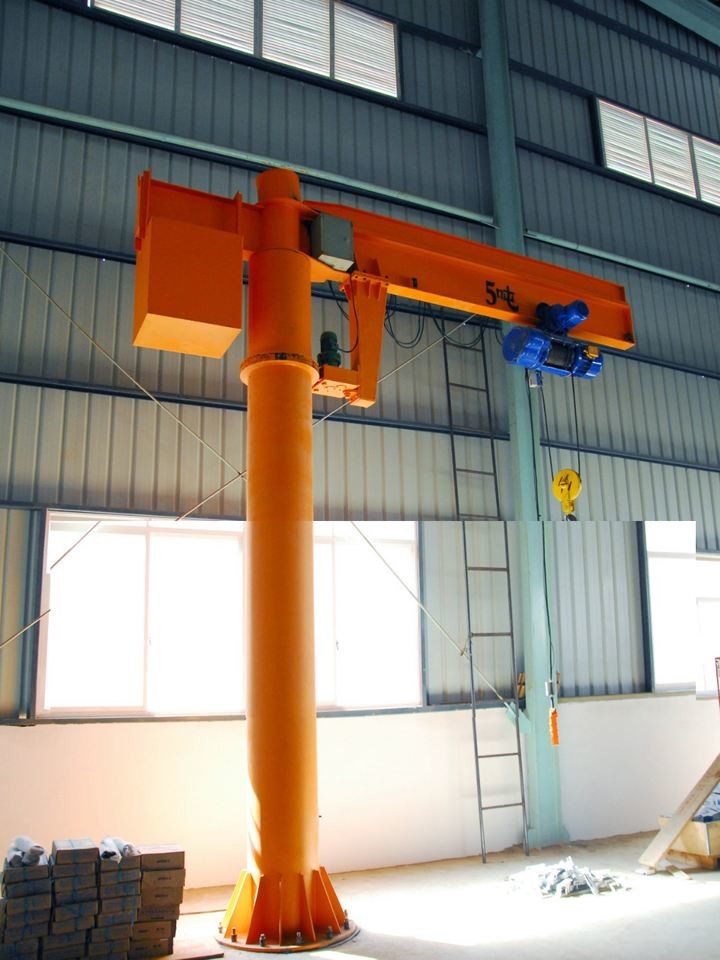

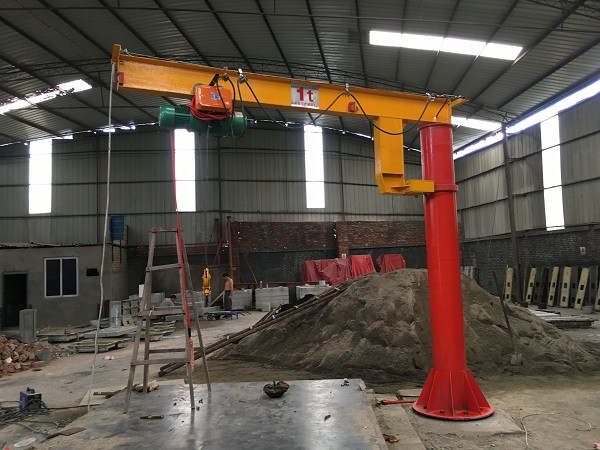

Slewing Column Mounted Jib Crane is small lifting equipment with light working intensity. It is composed of the upright column, rotary beam, rotary drive mechanism, and electric hoist.



The column is fixed on the concrete foundation with anchor bolts, the cycloid reducer to drive the rotating mechanism, Electric hoist running along the rotary beam I-steel to lifting heavy objects. The rotary beam is a hollow steel structure, lightweight, large span, large lifting capacity, economic and durable.


BZD model 360 degree rotation Column Mounted Jib Crane with high efficiency, energy-saving, time-saving, flexible, unique structure, safety and reliability, any operation in three-dimensional space.



It shows more superiority than other conventional lifting pieces of equipment in the short distance and intensive transportation situations, and it is widely used in various places of industry and warehouse.





Product superiority



BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy-saving and time saving, flexible operation, etc.



1. Compact Design


The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improve space utilization rate and narrows hook operation distance to the maximum intently.



The best material handling solution for your applications.



2. Smooth, Fast Loading, excellent performance


Stepless frequency conversion control system is installed to the crane and trolley, which makes pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of the swing of loads.



3. Safer, Reliable, Using Free Maintenance Design


The best technology is adopted which makes frequent operations safe and efficient.



Perfect braking systems can largely improve pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.



Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.





Using maintenance technology


1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.


2. Terminal baffle is not allowed to be used as the normal parking method.


3. The chain or steel rope of the heavy object must be strong enough and securely tied.


4. Lifting and moving of heavy objects shall be carried out in the vertical condition.



It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.


5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.


6. Do not hang heavy objects in the air after work or rest.



Light Weight Column Mounted Jib Crane Hydraulic Mobile 10 Ton Overload Protection 0





Technical parameters

Light Weight Column Mounted Jib Crane Hydraulic Mobile 10 Ton Overload Protection 1

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6



Packaging

Light Weight Column Mounted Jib Crane Hydraulic Mobile 10 Ton Overload Protection 2
