Compact Davit Pillar Mounted Jib Crane High Performance For Warehouse Handling

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 3 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Lifting Height: 3/12m Warranty: 2 Years
Feature: Jib Crane Port Of Dispatch: Qingdao, Tianjin And Inland Ports
Max. Wheel Load: 34.9KN Rated Lifting Moment: 500KNm
High Light:

post mounted jib crane

,

column mounted jib crane

Product Description

High-Performance Compact Design 10 Ton Davit Crane For Warehouse Handling





Product presentation

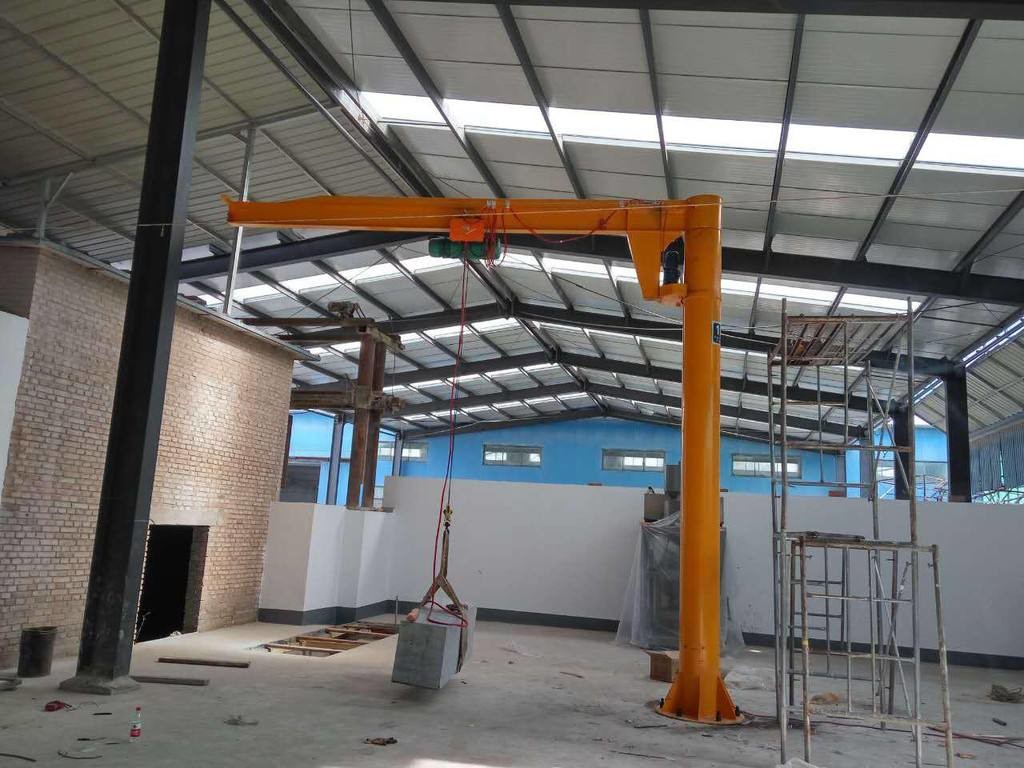

This BZD type column mounted jib crane normally works with an electric wire rope hoist or electric chain hoist, which consists of a fixed column, rotating arm, rotation drive mechanism and electric hoist.



The column is fixed on the concrete foundation by anchor bolt. The motor drives the driving mechanism to make the cantilever rotate. Electric hoist traveling on the jib beam.



BZD type jib crane is of Light&Middle work class, which can load 0.25t, 0.5t, 1t, 2t, 3t, 5t, 8t, 10t, 16t. You can choose different load capacity and rotation angle, such as 180°, 270°, 340°, 360°as per your actual working site.



The Slewing type is: Electrical type or manual type.





Product superiority



BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy-saving and time saving, flexible operation, etc.



1. Compact Design


The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improve space utilization rate and narrows hook operation distance to the maximum intently.



The best material handling solution for your applications.



2. Smooth, Fast Loading, excellent performance


Stepless frequency conversion control system is installed to the crane and trolley, which makes pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of the swing of loads.



3. Safer, Reliable, Using Free Maintenance Design


The best technology is adopted which makes frequent operations safe and efficient.



Perfect braking systems can largely improve pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.



Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.





Using maintenance technology


1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.


2. Terminal baffle is not allowed to be used as the normal parking method.


3. The chain or steel rope of the heavy object must be strong enough and securely tied.


4. Lifting and moving of heavy objects shall be carried out in the vertical condition.



It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.


5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.


6. Do not hang heavy objects in the air after work or rest.



Compact Davit Pillar Mounted Jib Crane High Performance For Warehouse Handling 0





Technical parameters

Compact Davit Pillar Mounted Jib Crane High Performance For Warehouse Handling 1

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6
