Product Description

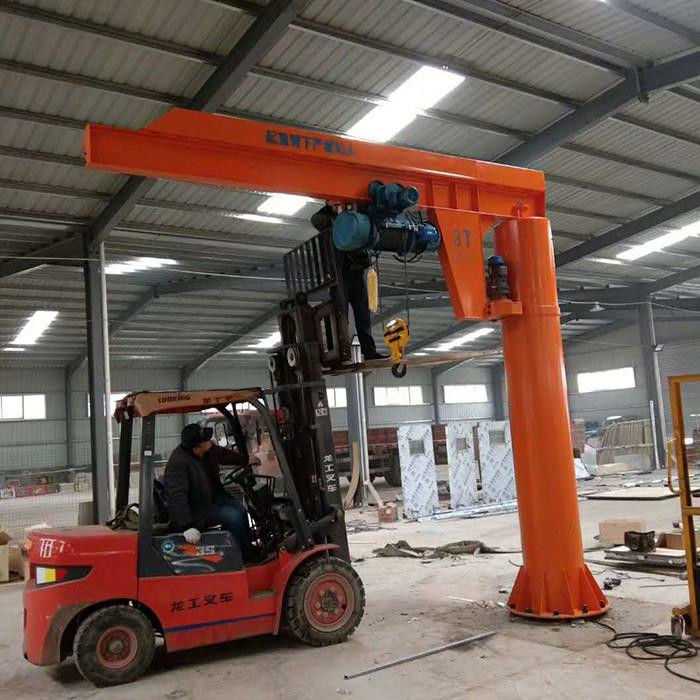

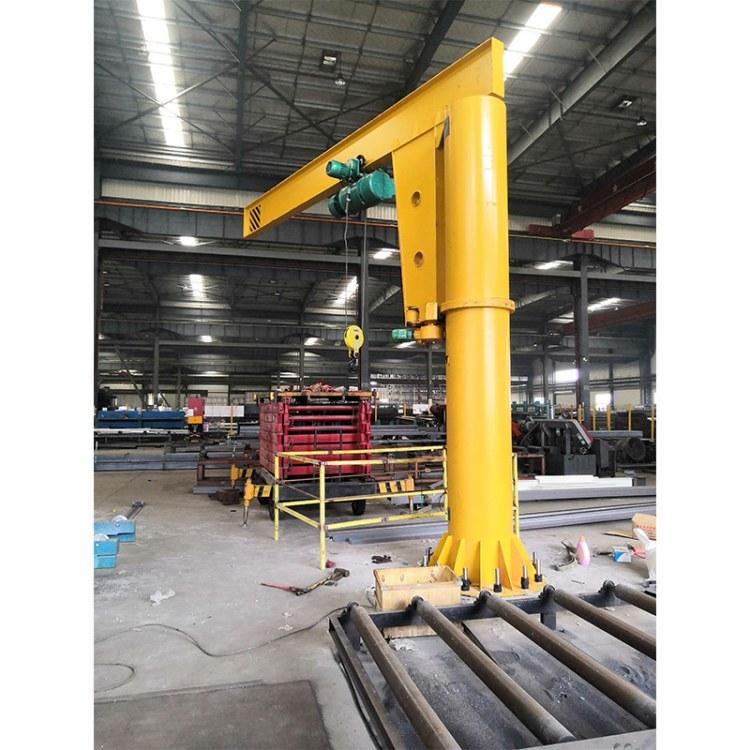

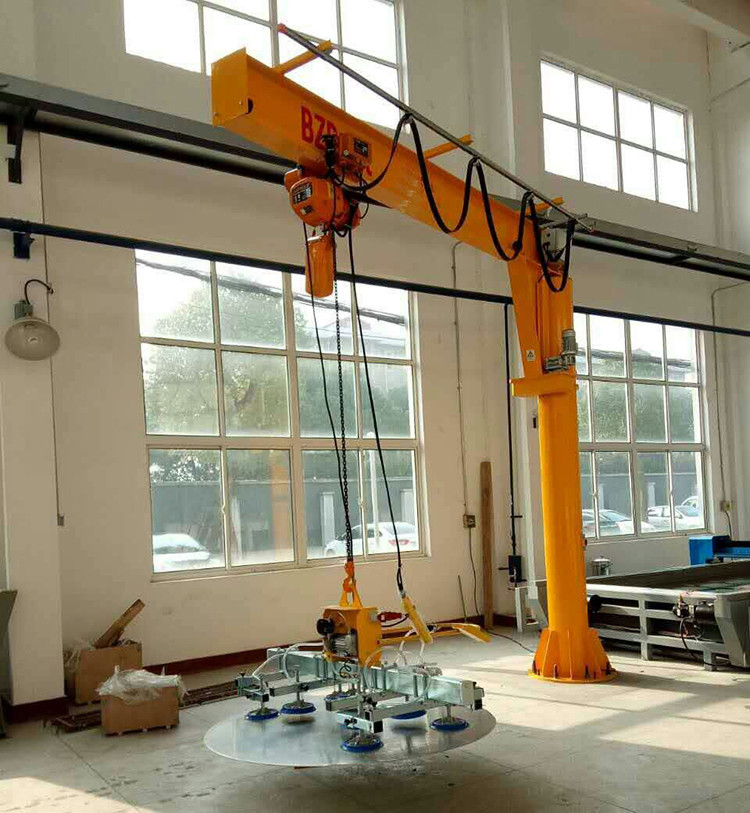

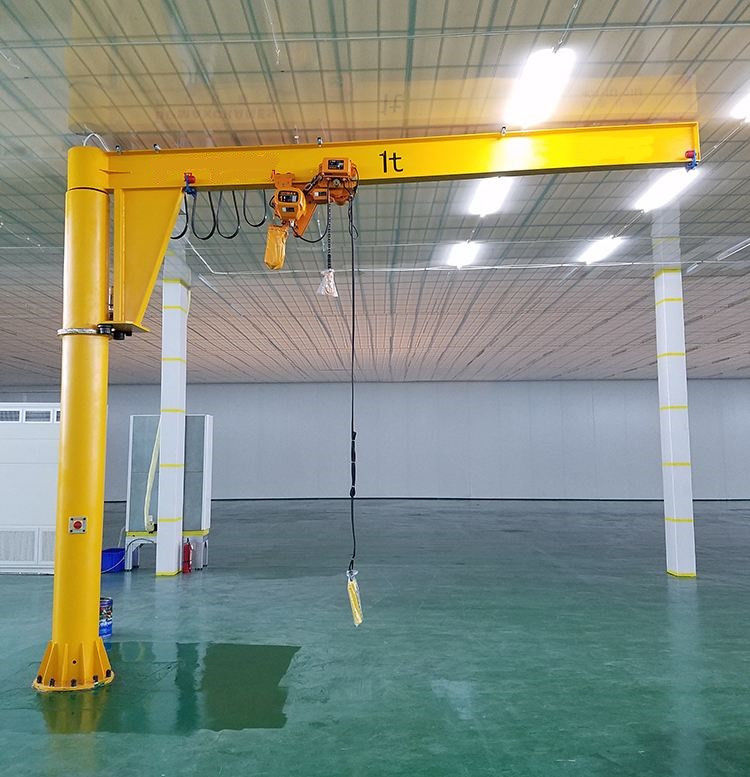

BZD Type Pillar Mounted Jib Crane 360 Degree Rotation, All Custom Made
Product presentation
The working strength of the jib crane is light. The crane is composed of a column, slewing drive device and electric hoists. The lower end of the column is fixed on the concrete foundation by anchor bolts.
Crane slewing for hollow steel structure, lightweight, span, large lifting weight, economic and durable. A built-in walking mechanism, using special engineering plastic walking wheel with rolling bearing, low friction, walking briskly;
Structure size is small, especially conducive to improve the hook travel. The jib crane is divided into fixed column cantilever crane, curved arm cantilever crane, wall cantilever crane, gantry cantilever crane, mobile cantilever crane, double-arm cantilever crane, wall line cantilever crane.
BZD type pillar mounted jib crane is a kind of hoisting machinery used with PK type ring chain electric hoist or CD, MD type electric hoist. It consists of a column, rotating arm, cantilever drive device and electric hoist.
The base of the lower end of the column is fixed on the concrete foundation by the anchor bolt. The drive device of the reduction gear driven by the motor is cantilever rotation. The electric hoist runs back and forth on the cantilever i-beam.
BZD type pillar mounted jib crane has the characteristics of simple structure, convenient operation, small space large operation range and so on.
It is widely used in the production line, assembly line, warehouse, wharf, laboratory and other occasions of material hoisting in the modern industry of mechanical manufacturing, automobile and shipbuilding.
It is the ideal lifting equipment for enterprises to improve working efficiency and labor conditions.
Product superiority
1. Stable base: multiple chemical expansion screws are fixed, which are not easy to rust, and the stressed area is increased to ensure safety.
The stressed surface varies with different tonnage.
2. Rotation Angle: the rotation Angle can be 360° to meet the needs of different space environments.
3. Smooth operation and low noise: the machine runs smoothly, with low noise, flexible operation, and convenient installation and use.
4. Energy-saving, energy-saving, time-saving and labor-saving: it covers a small area and is easy to operate and maintain.
It is an energy-saving material hoisting equipment.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking method.
3. The chain or steel rope of the heavy object must be strong enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
Technical parameters
| Capacity(kg) |
Slew angle(°) |
H(m) |
L(m) |
h(m) |
S(m) |
| 250 |
270 |
1--10 |
≤8 |
1--10 |
L-0.5 |
| 500 |
≤360 |
1--10 |
≤8 |
1--10 |
L-0.5 |
| 1000 |
≤360 |
2--8 |
≤7 |
2--8 |
L-1.2 |
| 2000 |
≤360 |
2--8 |
≤6 |
2--8 |
L-1.2 |
| 3000 |
≤360 |
2--8 |
≤5 |
2--8 |
L-1.3 |
| 5000 |
≤360 |
2--8 |
≤5 |
2--8 |
L-1.5 |
